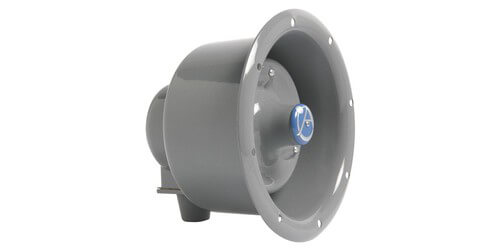

AtlasIED APF-15TU
Emergency Flanged Paging Horn with Transformer, UL

Our Price: $143.99

Request a Quote

Top APF-15TU Specifications

Description

Atlas Sound APF-15TUFlanged Emergency Signaling Horn Loudspeaker with 25V/70.7V-15W Transformer is a genius work, It is a voice activated loudspeaker is equipped with a compression driver to provide up to 15 watts of continuous power handling, superior intelligibility and audio conversion efficiency for maximum sound projection and penetration. It is very convenient to use since this series of loudspeakers may be flush mounted or recessed directly into interior/exterior walls or ceilings. It include a built-in 25/70.7V Vari-Tap transformer featuring a screw-driver adjustable, 7-position watt/impedance selection switch. All Wiring terminals covered with a vandal-resistant adapter for control equipment utilizing cable or conduit

For the consumers safety, this unit meet or exceed UL Standard 1480 for Fire Protective Loudspeakers and are capable of operating within an ambient temp. range of 66 C (150 F) to -35 C (-30 F).The all-metal, environment resistant construction and re-entrant acoustic path and makes sure that it has protection against water, humidity, vermin, physical abuse and corrosion. Models are also California State Fire Marshal Listed.

Specifications

• Impedance 25, 70.7V
• Dispersion 95
• Power Rating 15 Watts
• Sensitivity 104dB
• UL Listed/Standard 1480
• Operating Range -40 to 70C

Downloads

• AtlasIED APF-15TU Specifications (PDF)
• Atlas Sound Installation Sheet (PDF)

Q & A

Reviews

Image Gallery

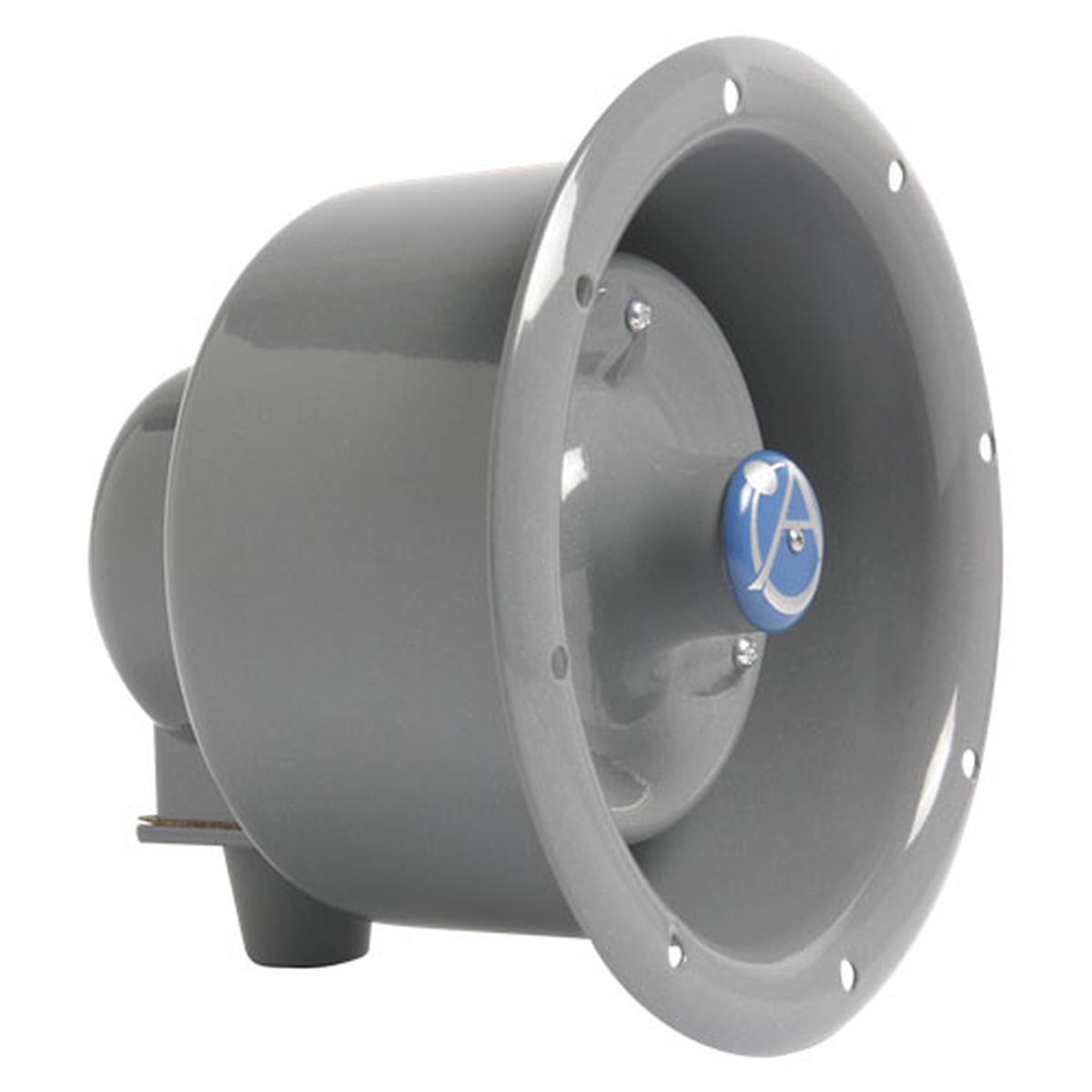

Atlas Sound APF-15TU

•
