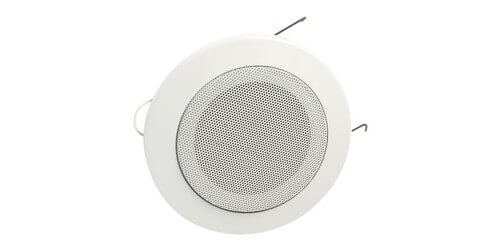

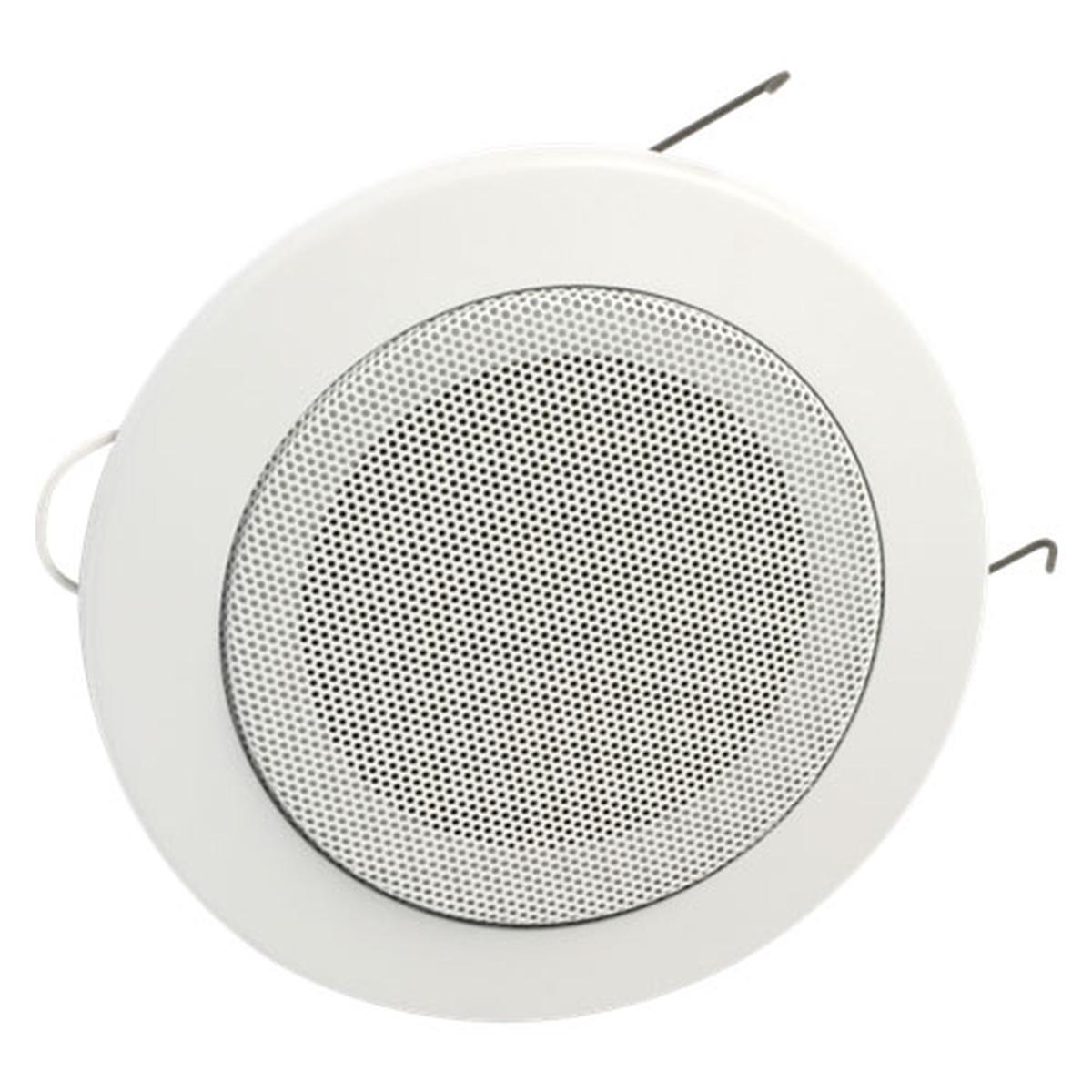

AtlasIED BT720-4-T47
4" Wide Angle Loudspeaker w/ Transformer & Round Baffle
Part #: BT720-4-T47
Satisfaction Guaranteed!
MSRP: $107.99
Our Price:
$87.99
Top BT720-4-T47 Specifications
- Depth 2 1/4"
- Diameter 4"
- Shipping Weight 3.50 lbs
- Frequency Response 60Hz - 12kHz (+/- 1dB)
"Great product. Came as promised. Top quality."
Contact a product specialist!
Proudly supporting our customers since 2008
Description
BT720-4-T47 4" Loudspeaker Combo Packages FC104T47/T720-4 by Atlas Sound is an attractive B Series loudspeaker assemblies puts together the sound performance of a full range 4" high compliance loudspeaker with the job site convenience and economy of a factory-assembled loudspeaker, transformer and baffle. This model incorporate the popular Atlas Sound FC104 high performance loudspeaker, recognized for full-range voice and music reproduction. Unit provides wide-angle sound dispersion to achieve desired coverage with fewer loudspeakers in distributed systems.
The loudspeaker employs a 10 ounce ceramic magnet and a damped, high-compliance cone to provide excellent low-frequency reproduction with smooth extended response. Package includes factory-mounted, dual-voltage 70.7/25V or 70.7V trans-former and round or square grille with screw mount or torsion spring (T) installation where noted. Each package includes pre-mounted EZ brackets which are slotted to accept EZ mount support rails (provided). Rails attach with wingnuts and adjust vertically to accommodate varying ceiling depth requirements (Note: No tile bridge is required). All B Series packages are shipped assembled and ready for installation.Specifications
- Power Taps 70.7V
- Speaker Type High Compliance
- Dispersion 130 / -6dB, 2kHz
- Sensitivity 88dB (1W, 1M)
