AtlasIED CP400
Dual-Channel, 400W Commercial Power Amplifier
Part #: CP400
Satisfaction Guaranteed!
MSRP: $1,151.99
Our Price:
$924.99
Top CP400 Specifications
- Direct Power Out: 8 Ohms, 1kHz, 0.1% THD, 160 Watts x 2 / 4 Ohms, 1kHz, 0.1% THD, 240 Watts x 2 / 2 Ohms, 1kHz, 0.1% THD, 270 Watts x 2
- Bridged Mono: 8 Ohms 500 Watts, 1kHz, 1% THD
- Bridged Mono: 4 Ohms 600 Watts, 1kHz, 1% THD
- Transformer Outputs
"Super fast responses, super fast direct support. Quick shipping. Best prices out there when buying in bulk. Thank you!"
-Chad R.
-Chad R.
Contact a product specialist!
Proudly supporting our customers since 2008
Description
Atlas Sound's CP400 is a commercial-grade power amplifier. The CP400 is ideal for use in environments that use distributed paging/BGM systems, foreground music systems, and distributed sound masking. Additionally, this power amplifier is a great addition to AV environments like nightclubs, theaters, and portable sound systems.

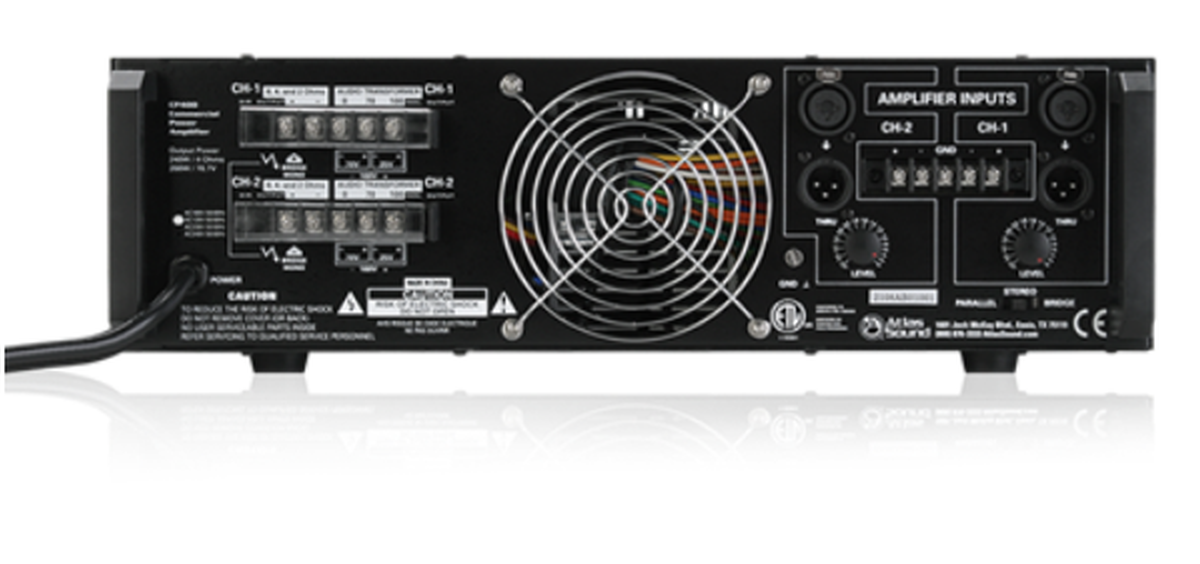

This dual-channel amplifier provides reliably low distortion and channel separation. The CP400 features XLR input connectors designed for portable sound equipment. Other key features of this amplifier include the following:
- Independent power supplies
- Soft clip limiter protection
- Attenuators mounted on the rear for security
- Stereo, bridge, or parallel operating modes selectable via rear-mounted switch
- Balanced inputs on barrier strip and XLR connectors
- Loop-through feature on male XLRs
- 25V, 70.7V, 100V, and Direct Coupled (2,4, and 8Ω) Outputs Mounted on Barrier Strips with Covers for Safety
- Response and effectively lower the electrical interference
- Power-up muting
Specifications
- 25V: 175 Watts
- 70.7V: 200 Watts
- 100V: 200 Watts
- 140V Bridged: 400 Watts
- 200V Bridged: 400 Watts
- Frequency Reponse
- Direct Outputs: 30Hz 50kHz ( 3dB)
- Transformer Outputs: 30Hz 16kHz ( 3dB)
- THD+N
- 8Ohms, 1kHz, 240 Watts per channel: <.05%
- Sensitivity
- Rated Output into 8Ohms: 1.25V
- Voltage Gain: 32dB
- Input Impedance
- Balanced: 20kOhms
- Unbalanced: 10kOhms
- Damping Factor: 8Ohms Output, 10Vrms: >200dB
- S/N RATIO: 8Ohms per Channel @ 240 Watts: >100dB
- Protection Circuits
- Output Offset Voltage Protection
- Heat Sink Overheat Protection
- Transformer Overheat Protection
- Load Shorting Protection
- Power On/Off Protection
- Soft Clip Limiters
- Controls: Power Switch, Ch 1 / Ch 2 gain (41 step) Parallel / Stereo / Bridge Switch
- Cooling: Dual Speed Fan, Temperature Controlled
- Indicator LEDs: Power, Protect, Signal, Limit
- Power Consumption
- Idle: .41A, 38 Watts, 130 BTU
- Average: 2.4A, 291 Watts, 992 BTU
- Max: 7.3A, 876 Watts, 2989 BTU
- Note: Average Power is 1 3 rating, 25% head room, and 50% music signal duty cycle
- Dimensions
- Height: 5.19" (132mm)
- Width: 19" (483mm)
- Depth: 16.85" (428mm)
- Warranty: 3 years
