AtlasIED CS95-8
8" Recessed Round Stacking Enclosure
- Depth 4 1/4"
- Diameter 11 3/4"
- Shipping Weight 2.33 lbs
- Mounts Baffle 51-8, 60-8(W), 61-8W, 62-8, 63-8, 67-8(W), G22-8, M222(W), P900, VP60-R
Description

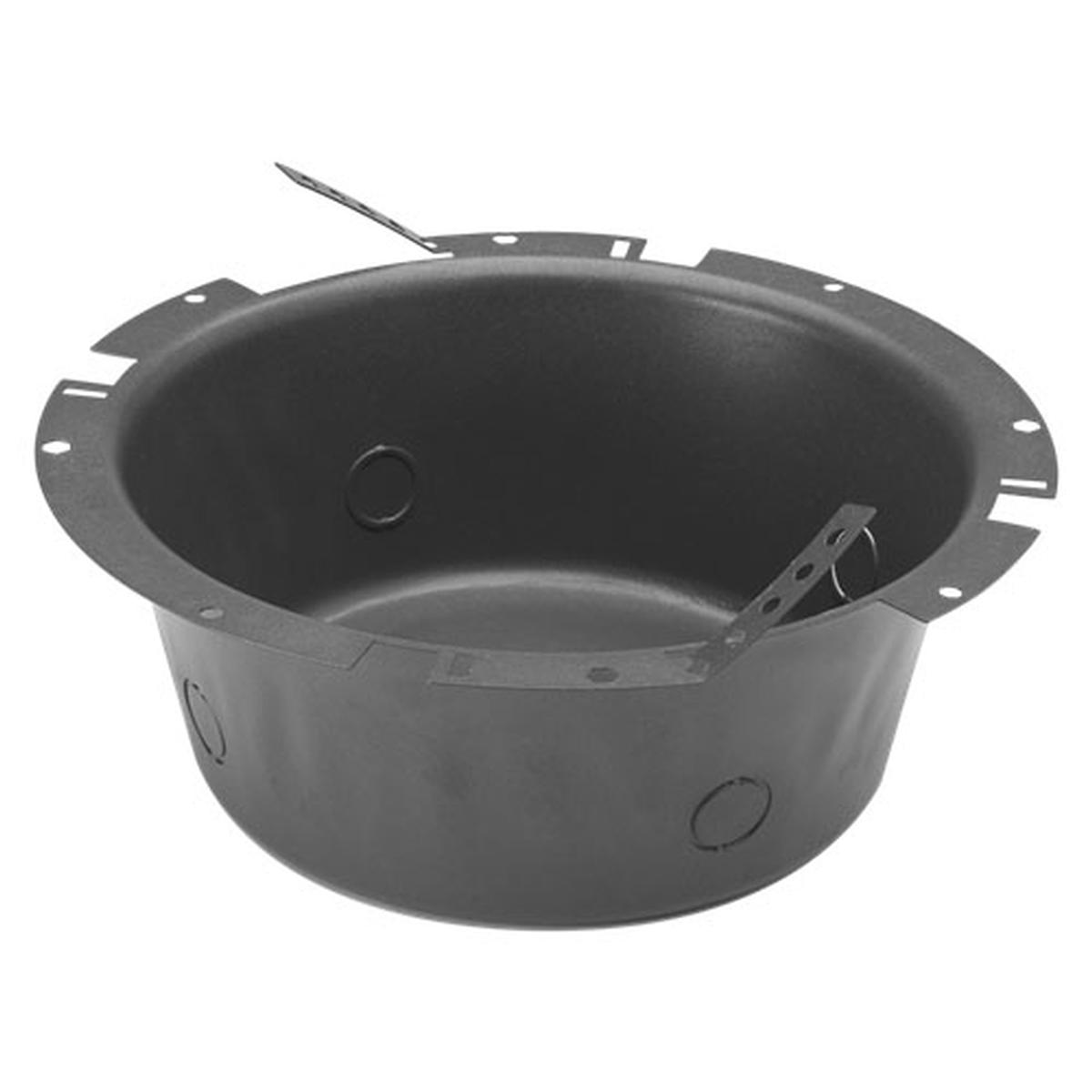

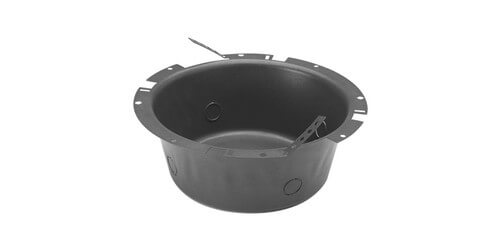

CS95-8 8" Recessed Round Stacking Enclosure by Atlas Sound Is made ideally for contractors that has a limited space in their storage. This conically shaped enclosure nests to achieve reduced inventory space requirements and transportation costs. This unit enclosure is a perfect for use with Atlas Sound model SD72W,SD72WV or high performance 8" 8-watt coaxial model GD87W loudspeaker/ transformer/baffle packages. Take not that this model is not designed to mount other loudspeaker packages with pre-mounted high performance transformers (HT-167, HT-327). It is furnished with four combination conduit knockouts 1/2" 3/4" , four J-clips and two flexible perforated mounting straps. One-piece CRS construction, undercoated, patch-jute lined, and finished in epoxy.
Specifications
- UL Listed/Standard 1480, 2043
