AtlasIED DPA-102PM
2-Channel x 100W, 4Ohm Networkable Pole Mount Power Amplifier

Description

Atlas Sound's DPA-102PM is a 2-channel pole-mountable power amplifier. This unit can be used as a traditional power amplifier directly out of the box. It has higher capabilities, however, such as DSP tools, level controls, EQs, limiters, high and low pass filters, delays, and summing.

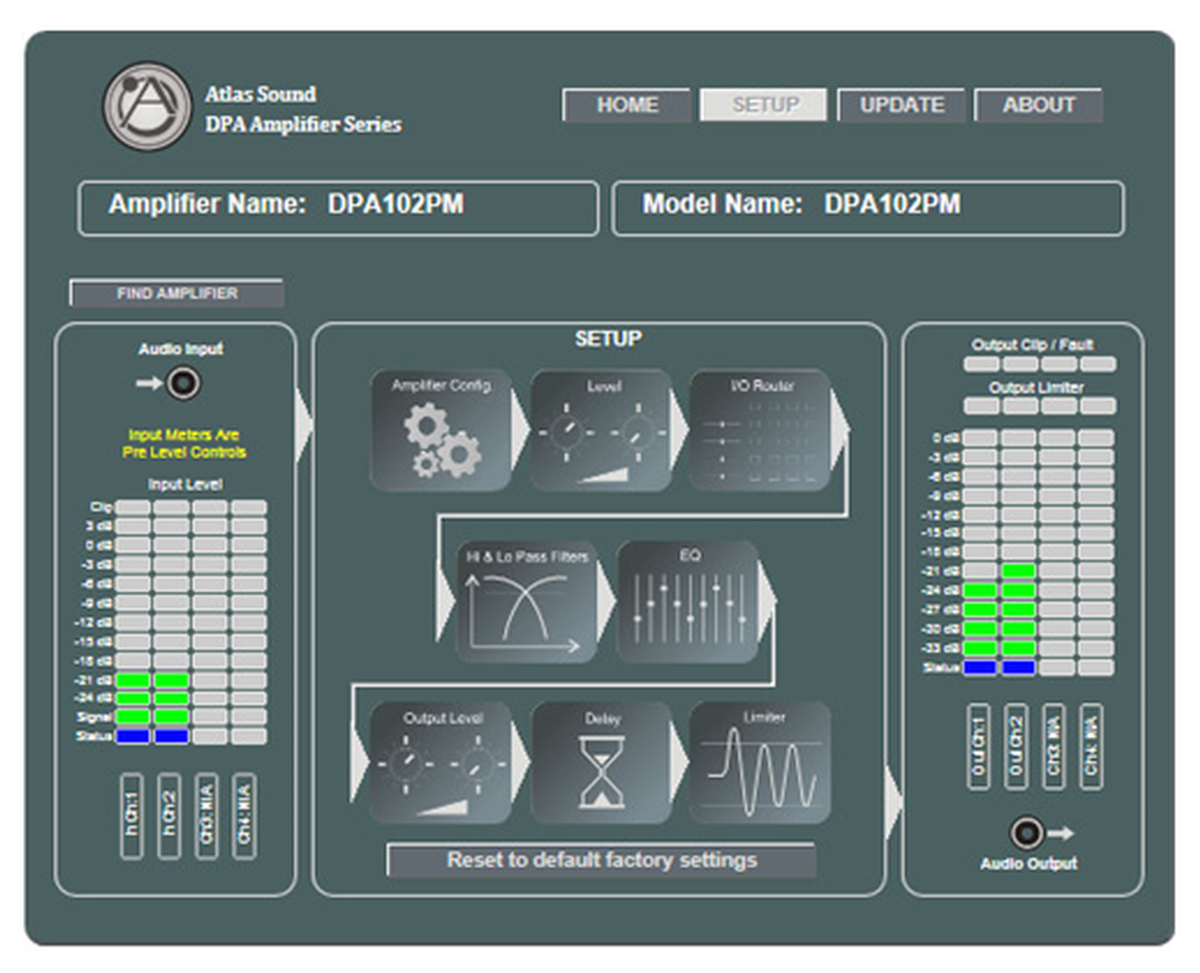

The DPA-102PM is a web-enabled amplifier and features control software that enables you to lock out the front panel controls to maintain the settings you desire. This DPA amplifier also features a DPA Discovery tool to enable other amplifiers on the network to be discovered. Other key features of this device include the following:

• 2 x 100 Watt Class-D Amplifier Technology
• DSP Signal Processing, Fully Configurable
• Ethernet Network Connectivity
• Remote Monitoring of Status and Levels
• Network Auto-Discovery Software
• Pole Mounted Projector Featuring Through Chassis or Side Pole Mount
• Audio Sense Turn-On/Off

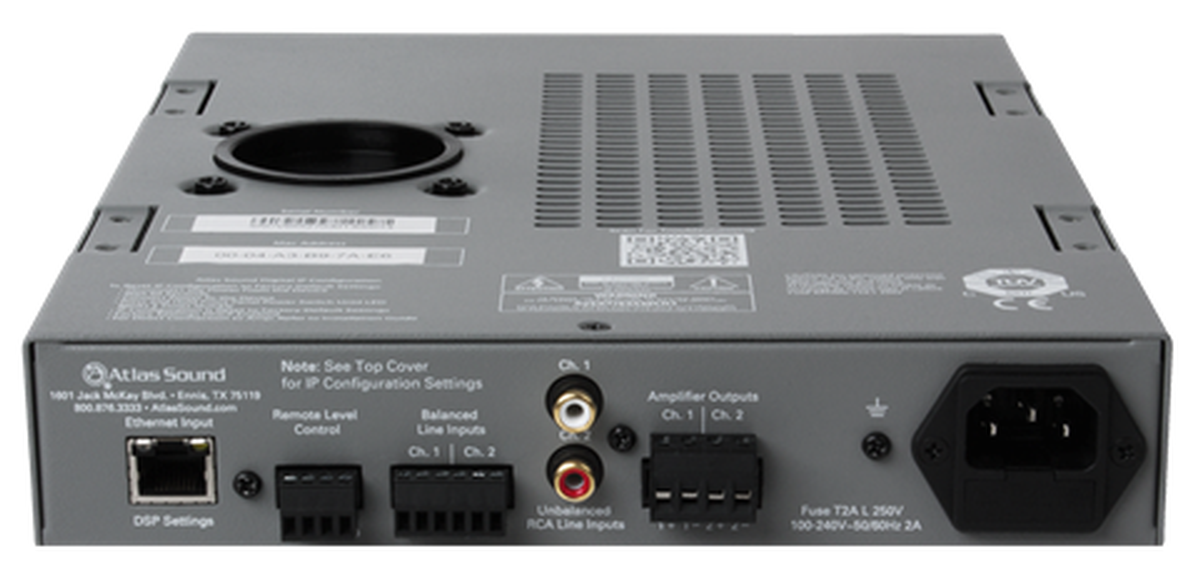

• Balanced and Unbalanced Inputs
• Assignable Level Controls (Security Protected)

Specifications

• THD: 0.2% at Rated Output
• Frequency Response: -3dB 20Hz @ 20kHz (DSP Filters Engaged)

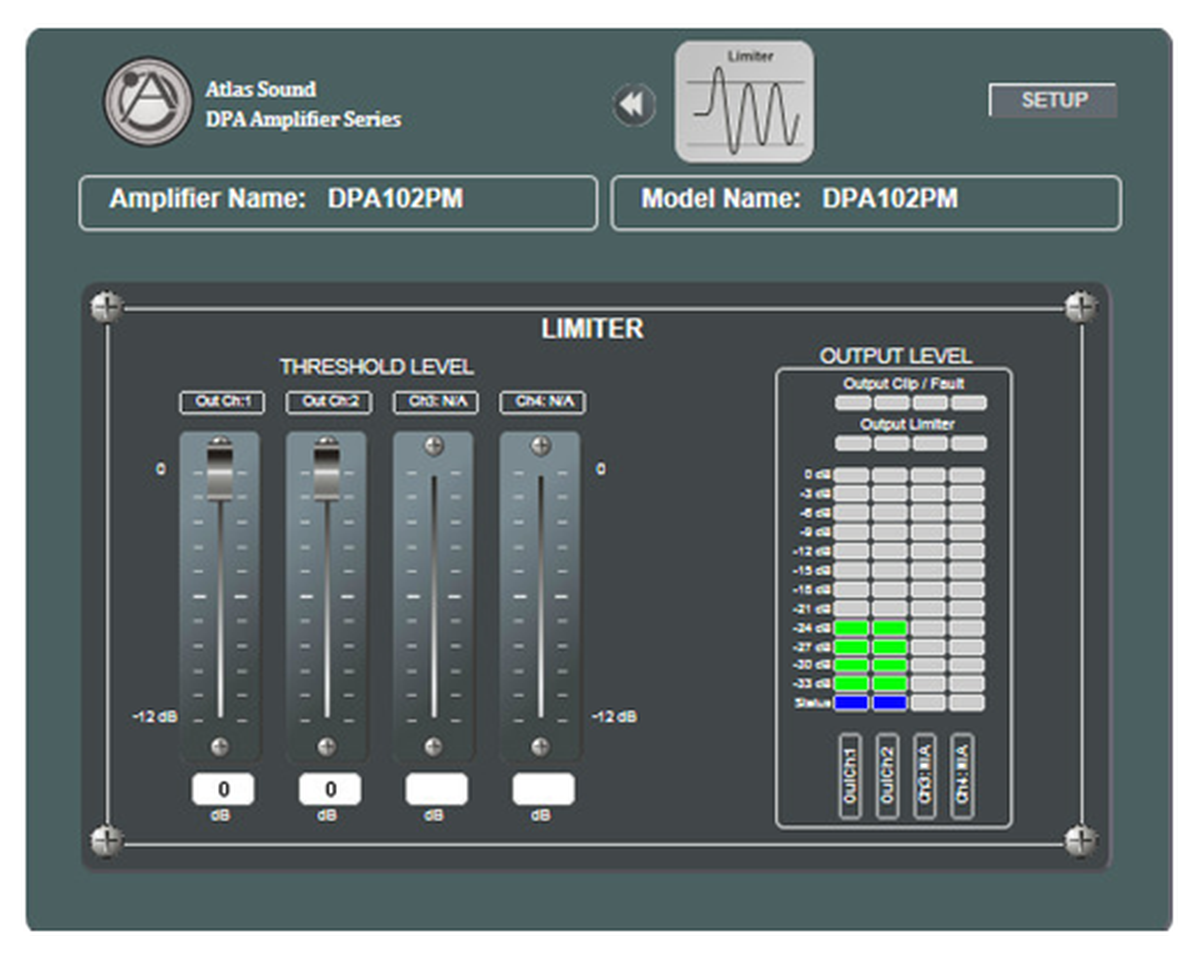

• DSP Elements: Input Level, Output Level, Output Limiter, 5 Band Parametric EQ per channel, Hi & Lo Cut Filters, Delay 60mS per channel, Matrix mixer

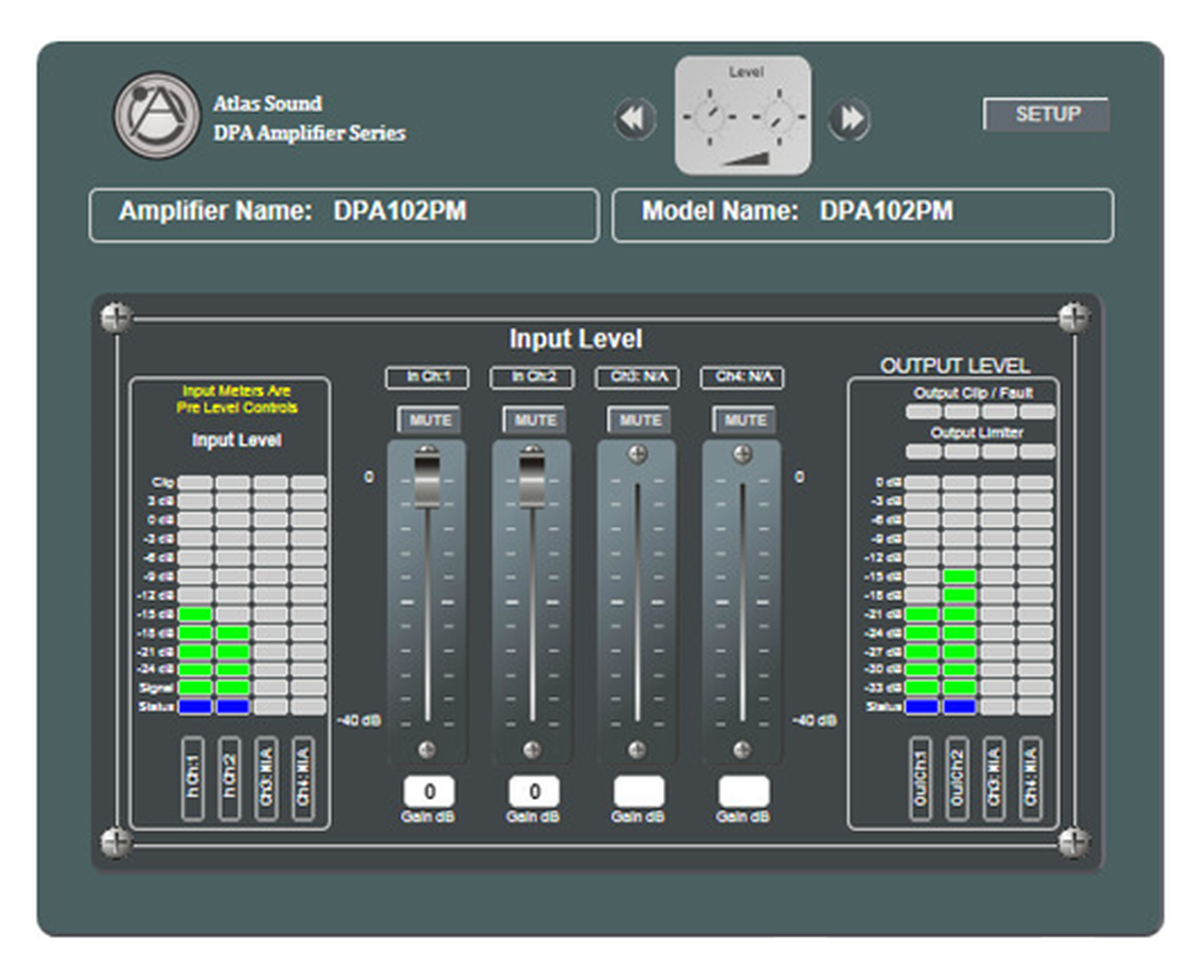

• GUI Control Ethernet Base, On Board Web
• (No PC Software for Single Unit Monitoring or Configuration)
• Audio Power Down (APD) On Trigger Threshold: 5mV Off, No Signal Sense, 30min

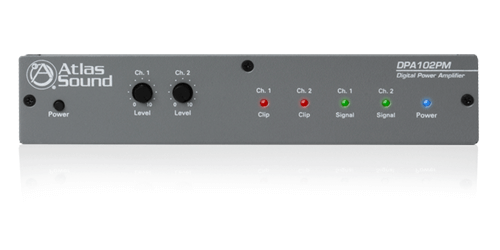

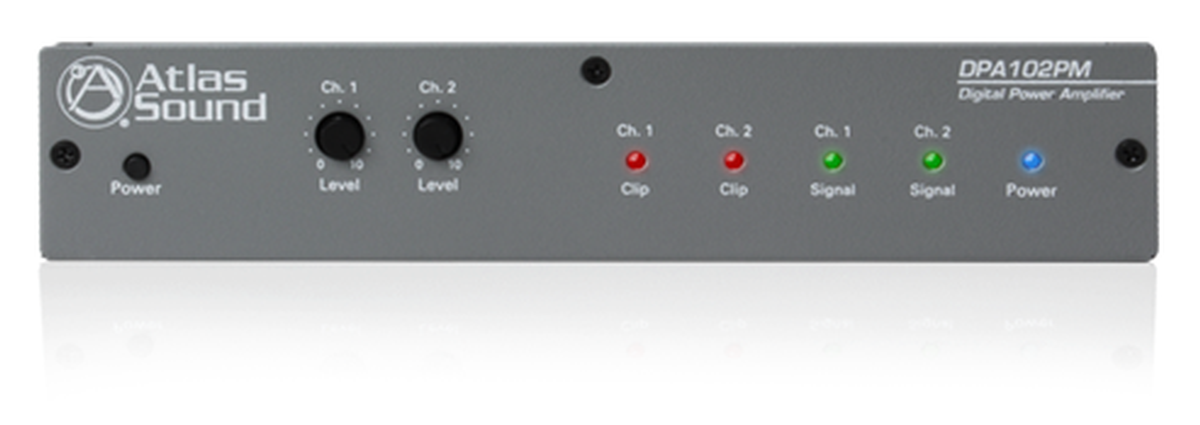

• Level Control (Assignable) Front Panel (Removable Knobs and Security Cover)
• GUI Control (PC, IPhone, Android, Password Protected)
• Remote Wired (10K Ohm Based, Separate Return per CH)
• Protection Circuits Thermal, Short, Limiter
• Signal to Noise Ratio: -100dB Below Rated Output (A-weighted)
• Input Sensitivity: Unbalanced - 750mV RCA
• Balanced - 750mV Euro Block PHX Type 3.5mm
• Input Impedance: Unbalanced: 10kOhms
• Balanced: 20kOhms
• Output Terminals Euro Block PHX Type 5.08mm
• Power Required: 100VAC 240VAC, 50/60Hz
• Power Consumption
• Standby Mode (Ethernet Active): 1 Watts, 22mA, 3.14 BTU
• Idle Active: 12.5 Watts, 173mA, 41 BTU
• Average Power: 4 (Audio Signal, 1 3 Power), 116 Watts, 395 BTU
• Max Power: 4 (Audio Signal, Peak), 384 Watts, 4.9A, 1310 BTU
• Height: 1.75" (45mm)
• Width: 8.5" (216mm)
• Depth: 13.5" (343mm)
• Weight: 4.9lbs (2.2Kg) Unit Only
• Optional Accessories
• DPA IP Discovery Software
• DPA Global Monitoring Software
• AA-YSUM: Passive Summing of Stereo Signal
• WPD-VC10K: Potentiometer on Wall Plate for Remote Level Control
• Rack Mount Kit: PA702-RMK
• Warranty: 3 years
