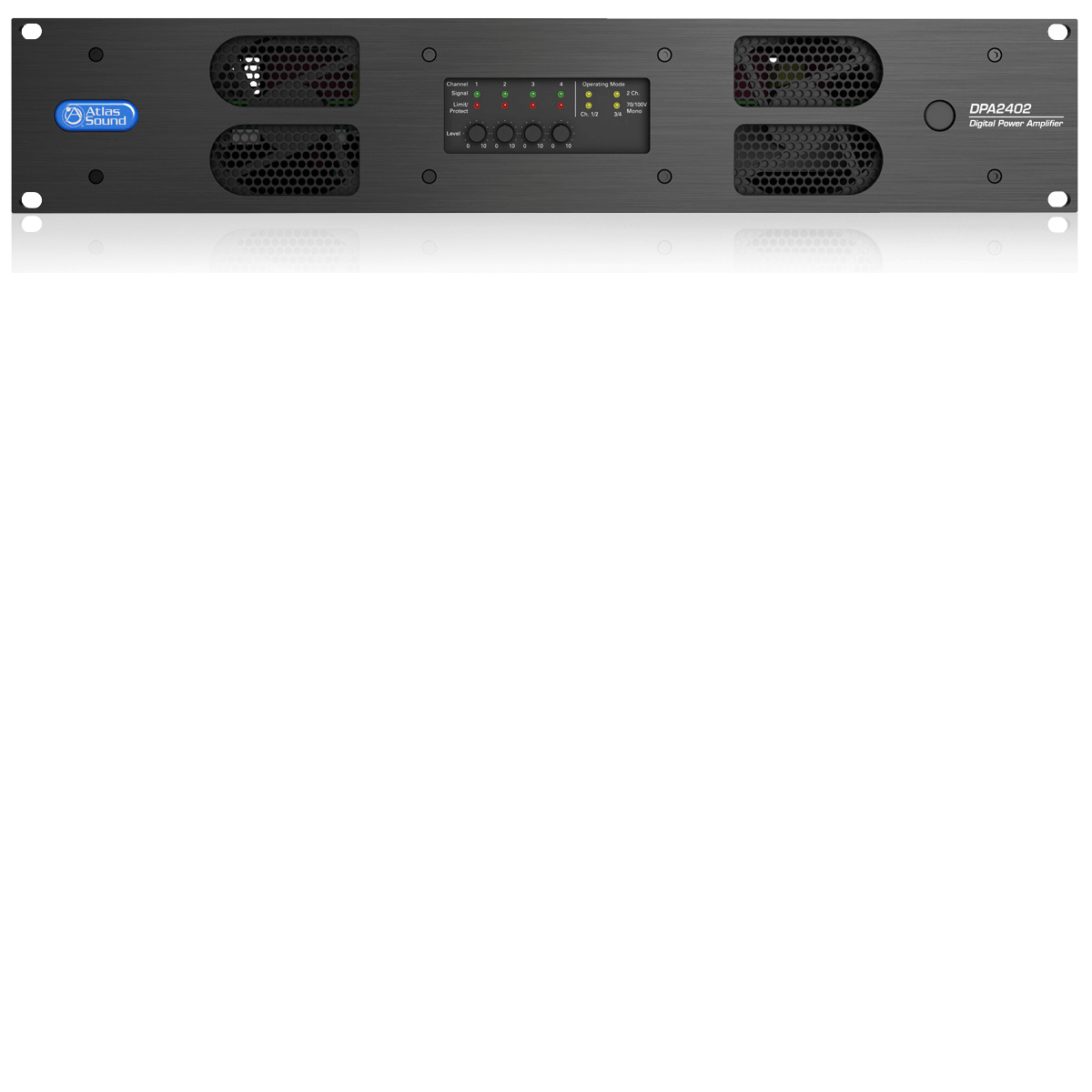

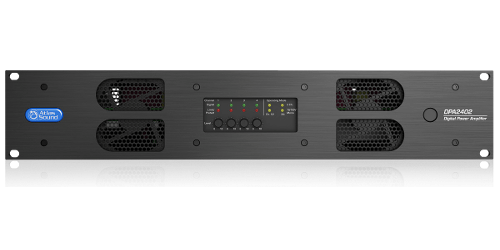

AtlasIED DPA2402
2400-Watt Networkable Multi-Channel Power Amplifier with Optional Dante Network Audio
Part #: DPA2402
Satisfaction Guaranteed!
MSRP: $2,352.99
Our Price:
$1,883.99
Top DPA2402 Specifications
- Power Output: 2 x 1200-Watts @ 70.7V
- Power Output: 2 x 1200-Watts @ 100V
- Power Output: 4 x 500-Watts @ 4 ohms
- Power Output: 4 x 300-Watts @ 8 ohms
"Super fast responses, super fast direct support. Quick shipping. Best prices out there when buying in bulk. Thank you!"
-Chad R.
-Chad R.
Contact a product specialist!
Proudly supporting our customers since 2008
Description
The AtlasIED DPA2402 features a combination of flexibility, performance and control to provide high value features for applications that require more than just great sound. The network based DPA2402 is a DSP controlled 4-channel amplifier that can be configured in three different amplification arrangements to meet the design requirements of any installation.
Specifications
- Power Output: 1 x 1200-Watts @ 70.7V, 2 x 600-Watts @ 4 ohms
- Power Output: 1 x 1200-Watts @ 100V, 2 x 600-Watts @ 4 ohms
- Amplifier Topology: Class AB Switching Hybrid -BASH
- Input Sensitivity: 750mV Balanced, 0dBU
- Input impedance: Balanced 40k ohms
- Maximum Input Signal: +14dBU Inputs 1-4, +7dBU Inputs 5-8 with Dante
- THD: 1% @ Rated Output
- Frequency Response: -3dB 20Hz - 20kHz (DSP Filters Set to Flat)
- Crosstalk: 73dB @ 1kHz
- Voltage: 110V - 120V and 220V - 240V Auto Switch Over, 50/60Hz
- Idle Current: 26W
- Rack Units: 2
- Height: 3.47" (89mm)
- Width: 19" (483mm)
- Depth: 14.5" (368mm)
- Signal to Noise Ratio: -100dB Below Rated output (A-Weighted)
- Weight: 20.8. (9.53kg)
- Voltage Compatibility: Universal
