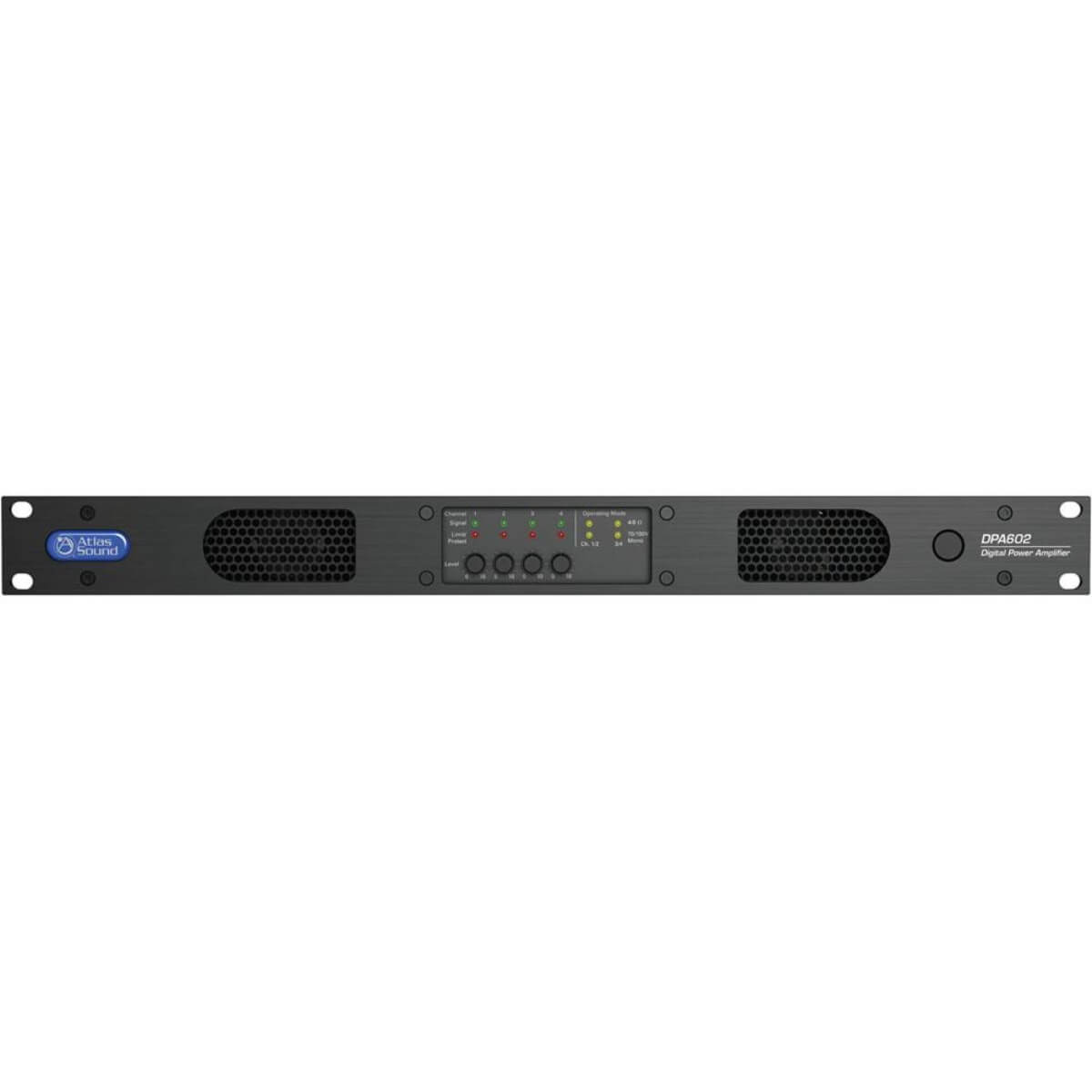

AtlasIED DPA602
Networkable 2-Channel 600-Watt Power Amplifier
- Power Output 2 x 300-Watts @ 70.7V
- Power Output 2 x 300-Watts @ 100V
- Power Output 4 x 150-Watts @ 4
- Power Output 4 x 75-Watts @ 8
-Gregory W.
Description
DPA amplifiers can be used right out of the box in their factory default configuration as traditional 2-channel 70.7V/100V commercial power amplifiers requiring no programming, special set-up, or network connectivity. However, when web enabled, the DPA amplifiers can be configured in 4-channel mode with either 4Ω or 8Ω load impedances for two stereo zones. Many system designs require both low and high impedance amplification. The DPA series can be configured for a 70.7V/100V paging/background system on one channel and the other two channels can be used for 4Ω/8Ω foreground stereo applications.
The DPA comes standard with four balanced line inputs and an accessory slot for an optional DPA-DAC4 4-channel Dante™ receiver card or a DPA-AMIX (2) mic/line and (2) AUX input card, for a total of 8 inputs. All inputs can be mixed and routed to any of the four amplifier channels. All amplifier channels have an assortment of DSP tools including level controls, EQ’s, limiters, high & low pass filters, and delay to provide flexibility for a range of applications.
Specifications
- Power Output 1 x 300-Watts @ 70.7V, 2 x 150-Watts @ 4
- Power Output 1 x 300-Watts @ 100V, 2 x 150-Watts @ 4
- Amplifier Topology Class AB Switching Hybrid -BASH
- Input Sensitivity 750mV Balanced, 0dBU
- Input Impedance Balanced 40k
- Rack Units 1
- Height 1.72" (45mm)
- Depth 14.5" (368mm)
- Weight 13 lbs. (5.92kg)
