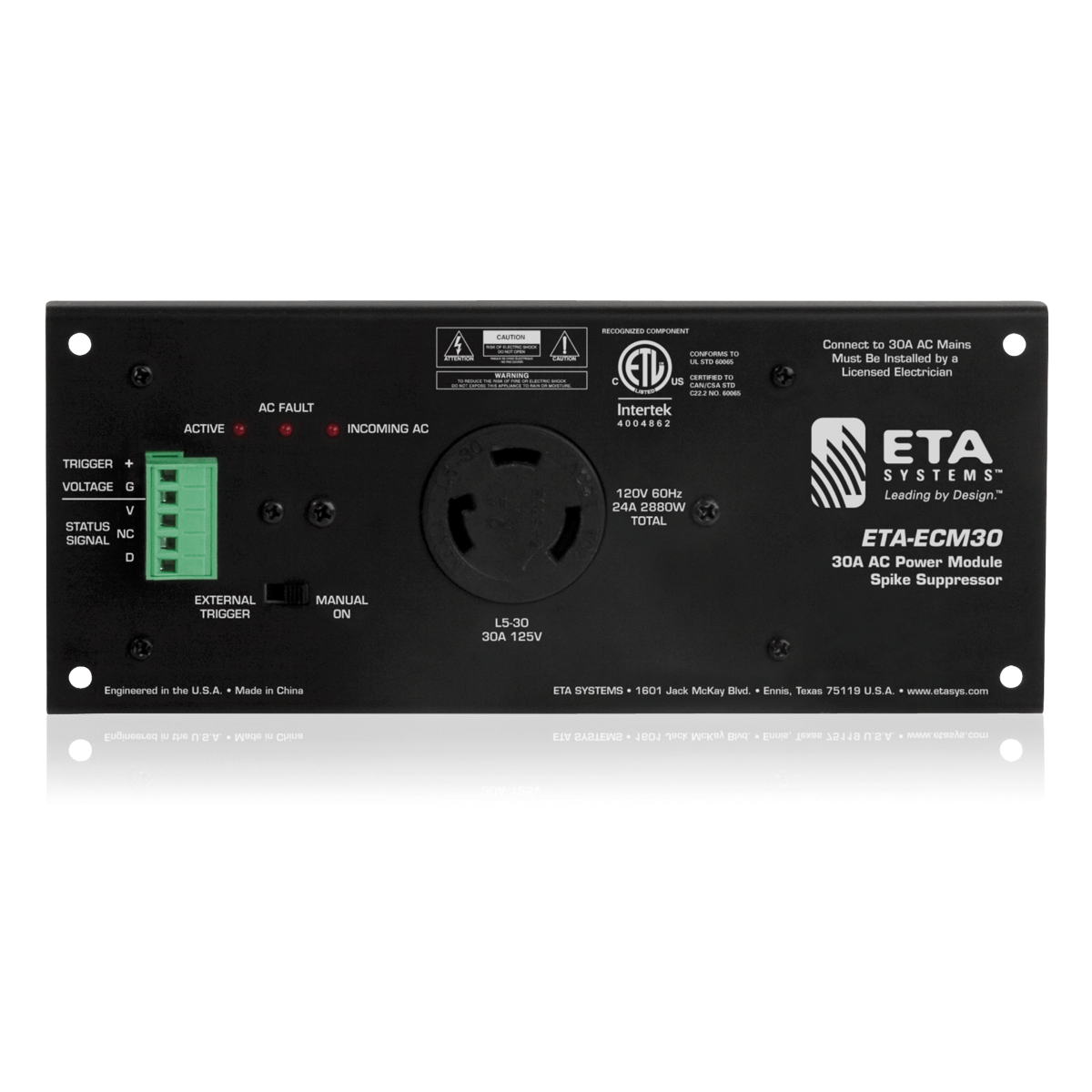

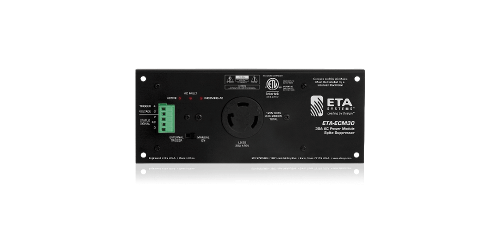

AtlasIED ECM-30
30A AC Power Module Spike Suppressor
Part #: ECM-30
Satisfaction Guaranteed!
MSRP: $331.99
Our Price:
$268.99
Top ECM-30 Specifications
- Current Rating: 30 Amps
- Power Requirement: 120V 60Hz
- Certified to Safety Listing: ETL (UL 1449)
- Operating Voltage: 102-132VAC
"Custom Equipment w/ quick turnaround. CERTIFIED FRESH!"
Contact a product specialist!
Proudly supporting our customers since 2008
Description
The Atlas Power ECM-30 is an Electrical Control Module (ECM) 30A Power Conditioner and AC Spike Suppressor that is designed to be used as a stand-alone unit or in conjunction with an ECS-6RM Controller up to 1000ft away. The ECM-30 features electrical supression circuitry that can suppress up to 6kV or 3000A voltage spikes. Additionally the unit features Extreme Voltage Shutdown (EVS) when used in conjunction with an ECS-6RM controller. This enables the unit to be shut off during High or Low AC line conditions in order to protect electronics plugged into the unit.
Specifications
- Minimum Spike Clamping Voltage: 460 VRMS @ 3000A
- Maximum Spike Clamping Voltage: 6,000V
- Power Consumption: .5 Watts
- Height: 3.0" (76.2mm)
- Length: 8.5" (215.9mm)
- Depth: 3.5" (88.9mm)
- Weight: 1.25. (.68 kg)
