AtlasIED EQM131
1/3 Octave Graphic Equalizer
Part #: EQM131
Satisfaction Guaranteed!
MSRP: $426.99
Our Price:
$343.99
Top EQM131 Specifications
- Low noise floor, wide dynamic range and all metal construction makes the EQM131 a perfect choice for any application requiring equalization
- Height: 1 3/4"
- Width: 19 1/16"
- Depth: 8 1/2"
"Easy to order. Lots of useful info on your webpage."
Contact a product specialist!
Proudly supporting our customers since 2008
Description

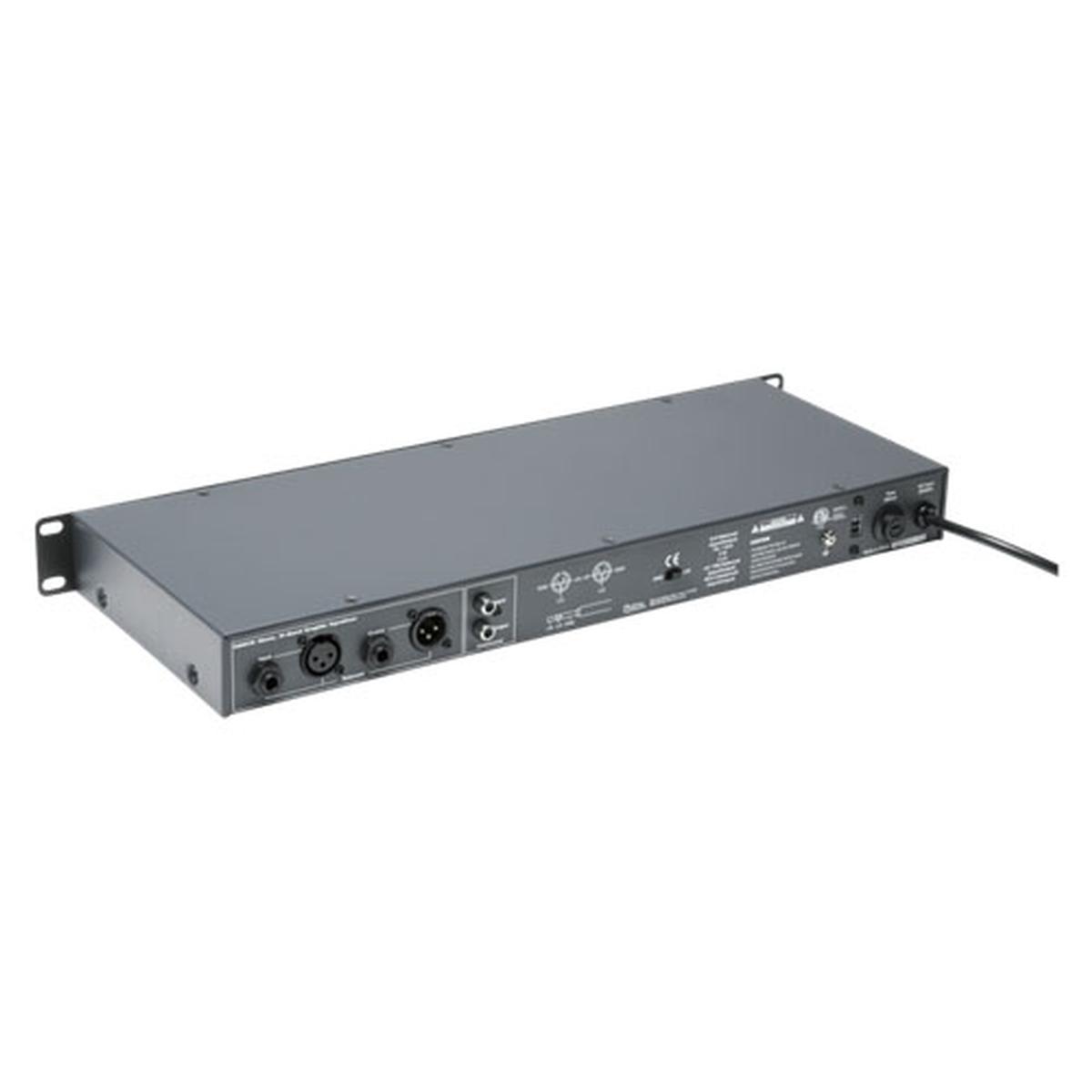

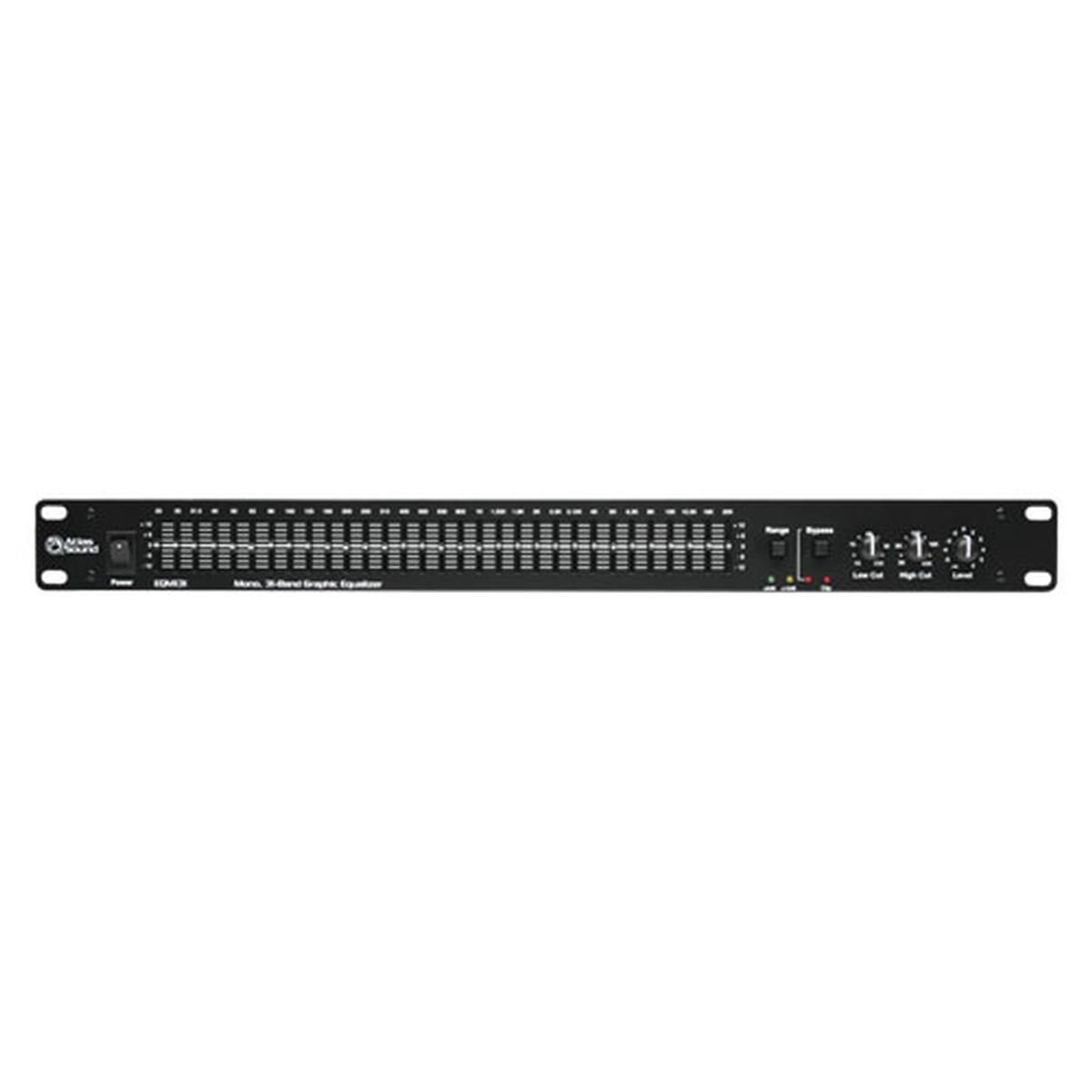

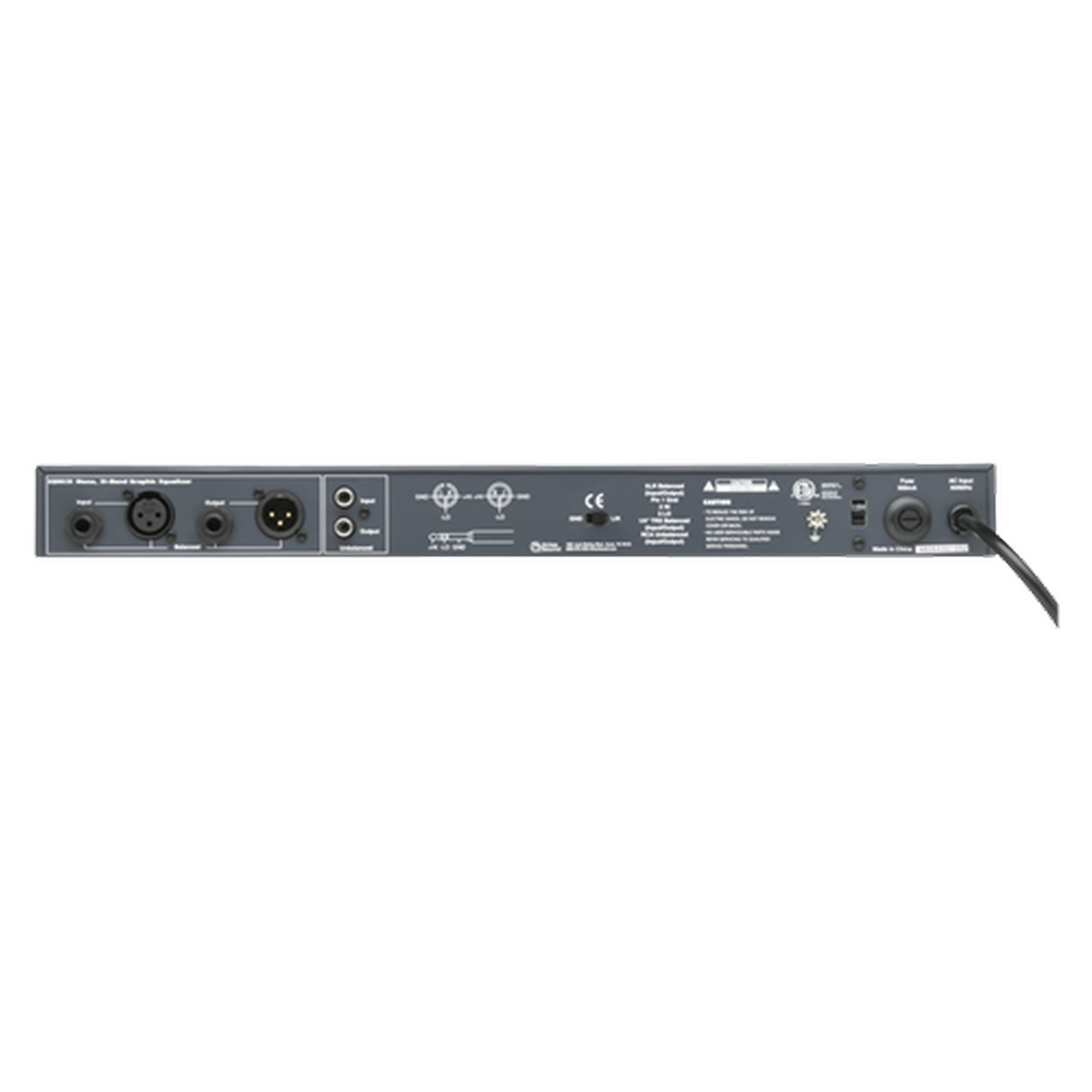

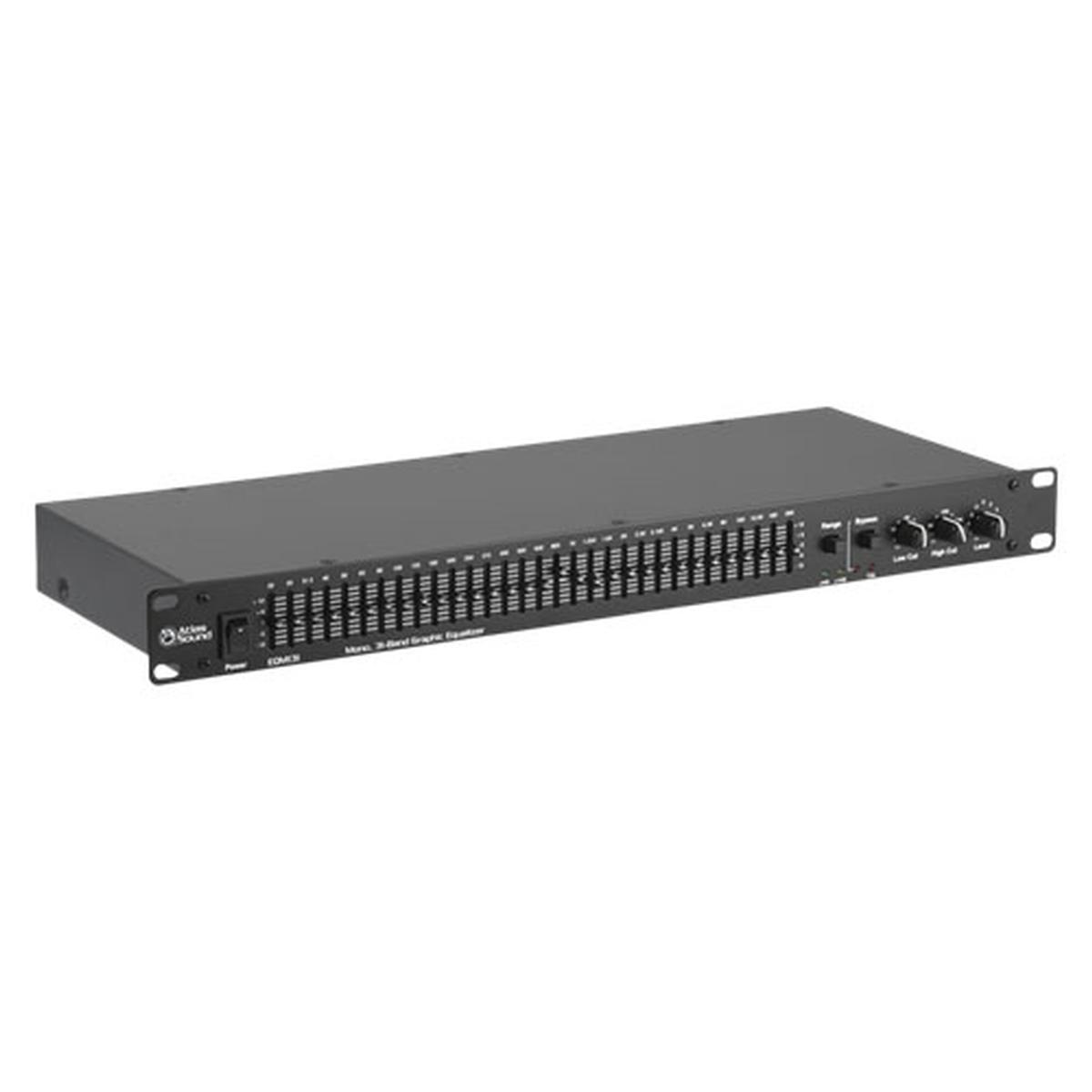

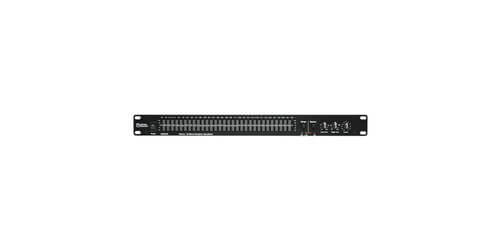

The EQM131 will provide basic system equalization for sound masking or general public address applications with an amazingly inexpensive price. The 1RU tall EQM131 is easily attached to any system through rear panel balanced TRS and XLR jacks. Unbalanced RCA connections are also provided for use with -10dBV equipment. Front panel mounted LPF/HPF and level controls are provided in addition to a switch for +/-6 or +/-12dB operation and 31 sturdy 20mm filter slide controls. The ISO centered 1/3 octave bandwidth-constant Q filter design minimizes interaction between filters however continues to be wide enough for creation of correction curves.
When used with the Atlas Sound AA120M mixer amplifier and AA-SMG sound masking module, the EQM131 can be used to create a 1/3 octave masking spectrum that is fed specifically to the AA120M amplifier section. Paging or music inputs can receive high frequency shelving equalization for better intelligibility from the AA120M front panel controls. The page/music inputs and masking module output can then be summed without affecting the masking source spectrum equalized by the EQM131.Specifications
- Weight: 4.90 lbs
