AtlasIED FAPR-8
8" Plaster Ring for Strategy Series
Part #: FAPR-8
Satisfaction Guaranteed!
MSRP: $40.99
Our Price:
$34.99
Top FAPR-8 Specifications
- Depth 7/8"
- Diameter 9 3/4"
- Shipping Weight 4.17 lbs
"Customer Service was knowledgeable and answered all questions quickly. Great Service!"
-Gregory W.
-Gregory W.
Contact a product specialist!
Proudly supporting our customers since 2008
Description

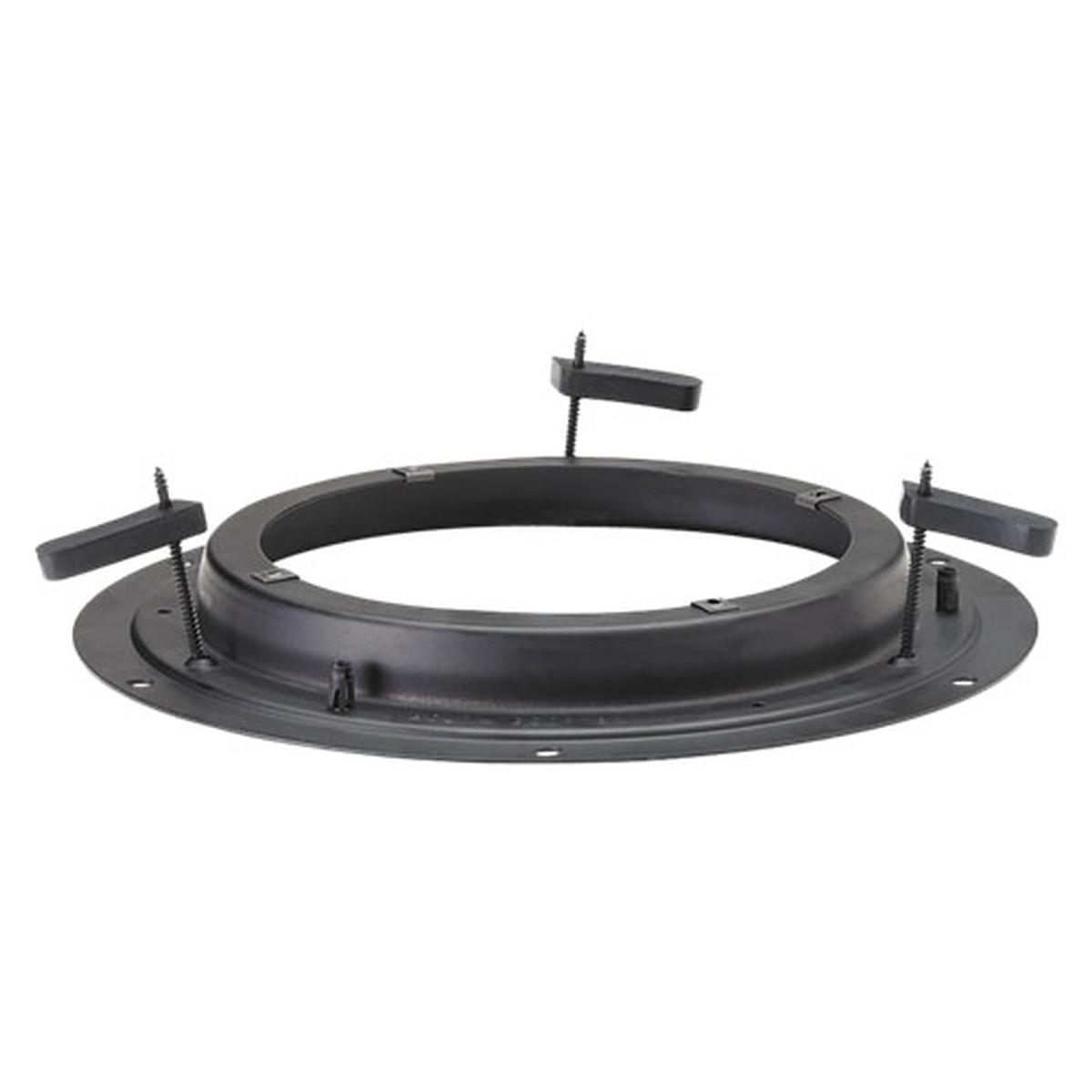

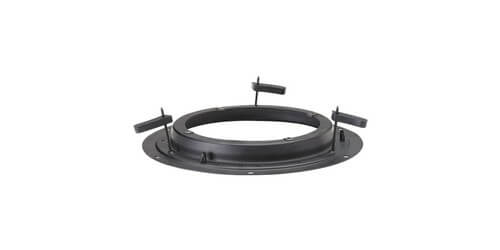

FAPR-8 Plaster Ring Strategy Series 8" by Atlas Sound is a plaster ring is used to mount Strategy Series 8" loudspeakers into ceilings andvwalls for applications where an enclosure cannot be used, or where it is not desired.
Plaster ring is constructed of galvanized steel. It is equipped with four threaded inserts for loudspeaker installation and three stud receptacles for mounting Strategy Series grilles. The mounting mechanism is comprised of three rotating clamps which are included. Cutout dimension 9-3/4". Unit is made with the same internal mounting flange as FA97-8 and FA95-8 enclosures. It may be used to mount non-transformer equipped loudspeaker models into walls having a min. depth of 3-1/2" (SD72-replacement for discontinued model FA118) or 4" (FA138). The FAPR-8 will facilitate installation of transformer-equipped loudspeaker models into walls with a minimum depth of 6-1/2" (SD72 or FA138 measured from the front of the mounting surface to the rear of the inside mounting area).Downloads
