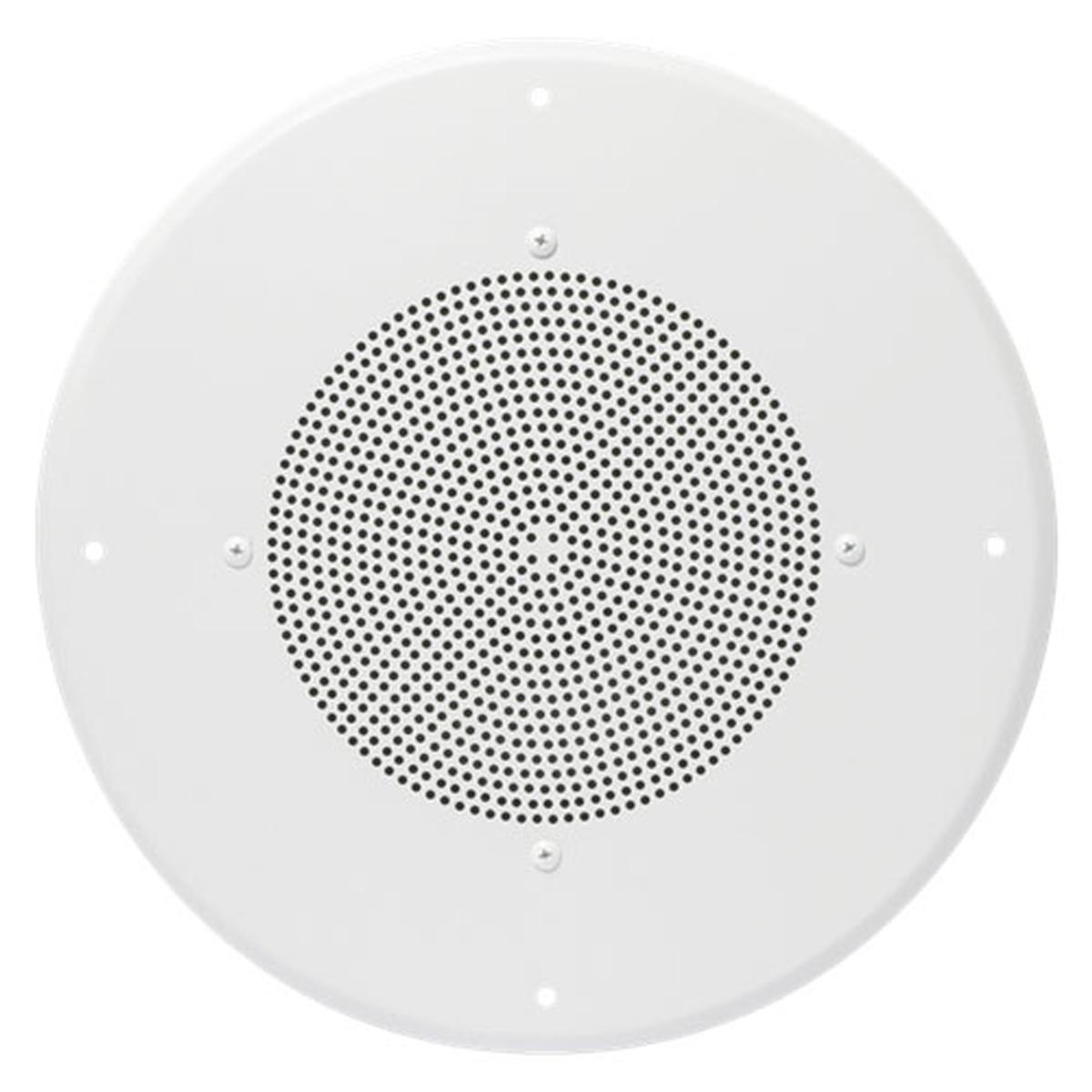

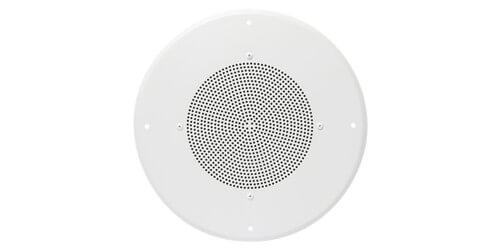

AtlasIED HD70W
8" Ceiling Speaker Package with 70V Transformer & Grille
Part #: HD70W
Satisfaction Guaranteed!
MSRP: $56.99
Our Price:
$47.99
Top HD70W Specifications
- Depth 2 7/8"
- Diameter 8"
- Shipping Weight 4.50 lbs
- Frequency Response 100 Hz - 10 kHz, 1.5dB
"Online ordering was very easy and the automated emails kept me up to date on status of the order until delivery"
Contact a product specialist!
Proudly supporting our customers since 2008
Description
HD70W Pre-assembled baffle, 10 oz Loudspeaker 70.7V-5W xfmr/62-8 made by Atlas Sound is a cost effective assembly that include high-quality 8" loudspeaker, 70.7V transformer and screw type grill. Unit is shipped assembled, ready for installation.
The HD70W features a conventional cone design loudspeaker with a 1" diameter voice coil to reproduce voice and music with excellent response and superb overall performance. The HD70W includes a factory mounted 70V transformer that exhibits less than 1.5dB of insertion loss and a frequency response of +1.5dB from 100 Hz to 10 kHz. Speaker / transformer is factory installed on a 62-8 style baffle. This industry favorite is aesthetically pleasing and constructed of 24-gauge CRS finished in textured white epoxy.Specifications
- Power Taps .5, 1, 2, 5
- Speaker Type Treated Paper
- Dispersion 105
- Sensitivity 97dB Peak, 94dB Average
