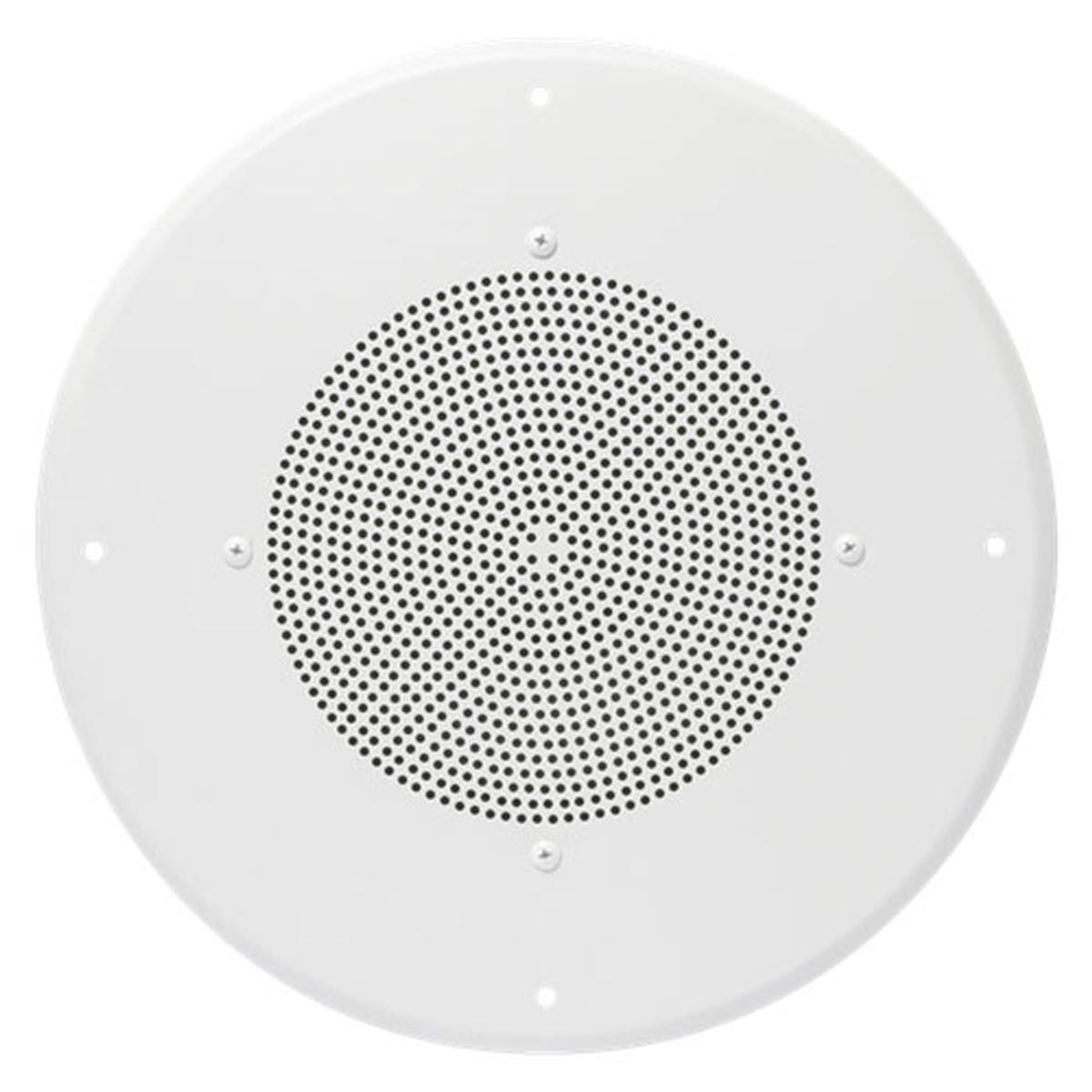

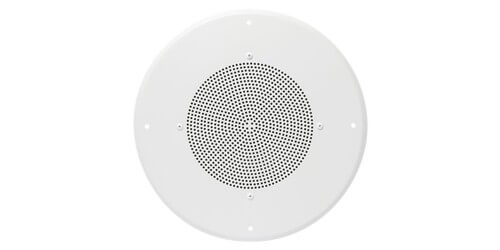

AtlasIED HD72W
8" Ceiling Speaker Package with 70/25V Transformer & Grille
Part #: HD72W
Satisfaction Guaranteed!
MSRP: $56.99
Our Price:
$47.99
Top HD72W Specifications
- Depth 2 7/8"
- Diameter 8"
- Shipping Weight 4.50 lbs
- Frequency Response 100 Hz - 10 kHz, 1.5dB
"Quick and easy checkout and great prices. Will look here again."
Contact a product specialist!
Proudly supporting our customers since 2008
Description
HD72W Pre-assembled baffle, 10 oz Loudspeaker 25/70.7V-4W xfmr/62-8 by Atlas Sound Model HD72W is a cost effective assembly that include high-quality 8" loudspeaker, 70.7V/25V transformer and screw type grill. Unit is shipped assembled, ready for installation.
The HD72W features a conventional cone design loudspeaker with a 1" diameter voice coil to reproduce voice and music with excellent response and superb overall performance. The HD72W includes a factory mounted dual voltage transformer that exhibits less than 1.5dB of insertion loss and a frequency response of +1.5dB from 100 Hz to 10 kHz. Speaker / transformer is factory installed on a 62-8 style baffle. The unit has an attractive white finish.Specifications
- Power Taps 25/70.7V
- Speaker Type Treated Paper
- Dispersion 105
- Sensitivity 97dB Peak, 94dB Average
