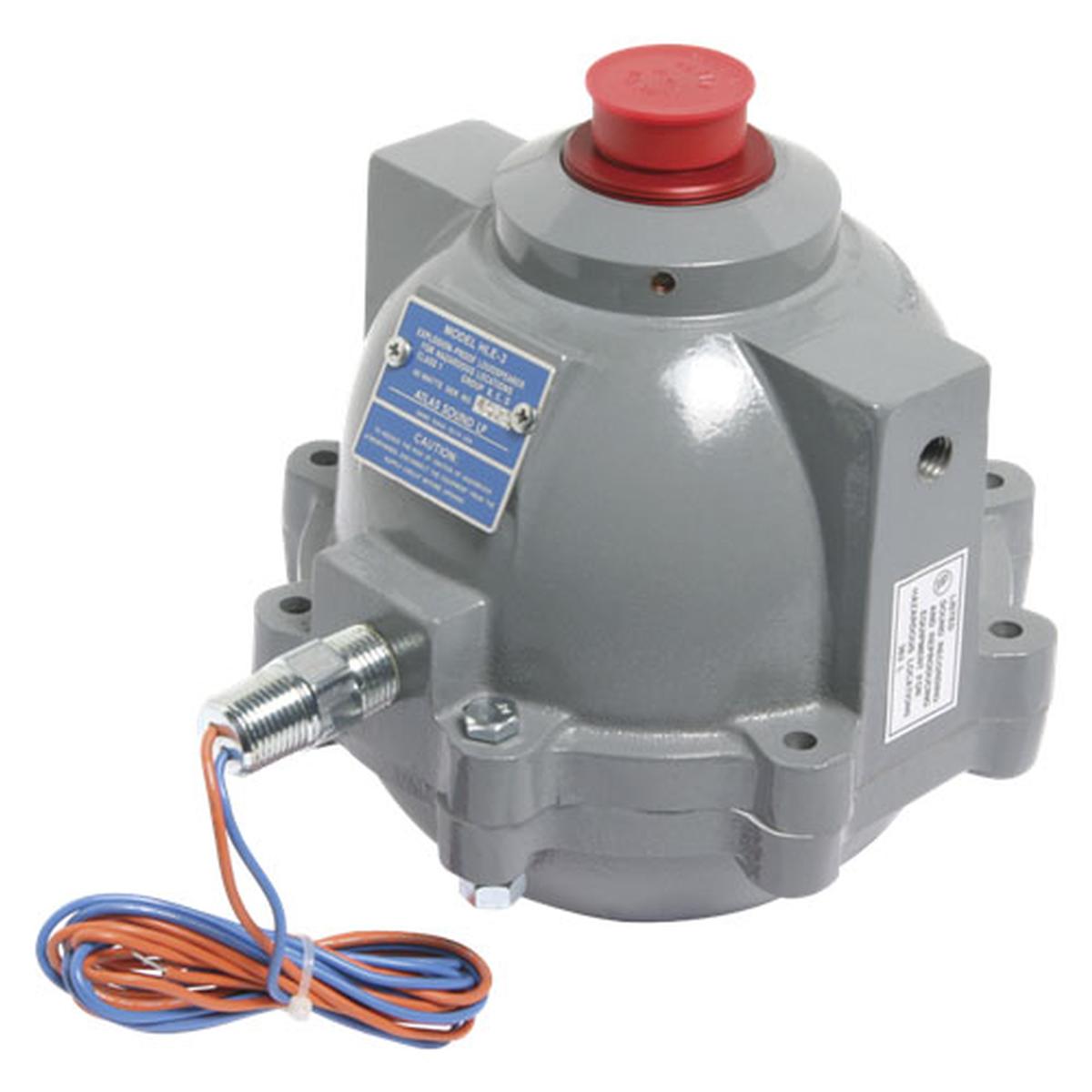

AtlasIED HLE-3
60W UL Explosion Proof (Hydrogen Environment) 70V Compression Driver

Our Price: $508.99

Request a Quote

Top HLE-3 Specifications

Description

HLE-3UL Listed Explosion-Proof Driver 60 W, 16 Ohms Hydrogen Enviroment by Atlas Sound. Series HLE and MLE loudspeakers are explosion-proof compression driver/horn assemblies engineered for high-efficiency voice and electronic signal communication in hazardous areas. Drivers, which are protected within a rugged die-cast aluminum housing, are available in 60-watt (HLE Series) and 30-watt (MLE Series) power handling versions. Models with T suffix include a factory-installed, internally mounted transformer (Note: To meet UL requirements transformer must be factory installed). All models are equipped with 1/2" conduit access and an adjustable mounting bracket. Projector horns are available in two styles to meet dispersion requirements.

Model HLE/MLE-30 is a high-quality, polycarbonate projector that creates a 120 x 60 pattern for wide area coverage. Model HLE/MLE-32 is a spun aluminum bell providing a 95 circular distribution emphasis.

Note that ONLY The HLE/MLE-30 and the HLE/MLE-32 Horns are UL Listed for use with the HLE or MLE Line of Explosion Proof Drivers

Specifications

• Frequency Response 250 Hz- 12 kHz
• Power Rating 60 Watts Cont.
• Sensitivity 108dB
• UL Listed/Standard 1203, 1604, 2279, 913, NFPA 503

Downloads

• AtlasIED HLE-3 Specifications (PDF)

Q & A

Reviews

Image Gallery

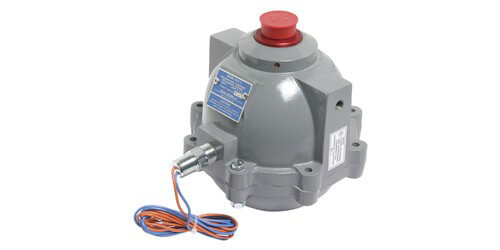

Atlas Sound HLE-3

•
