AtlasIED HPA-DAC2
Dante Accessory Card for HPA Amplifiers
Part #: HPA-DAC2
Satisfaction Guaranteed!
MSRP: $626.99
Our Price:
$502.99
Top HPA-DAC2 Specifications
- Description: 2 input Dante receiver card for the HPA Series amplifiers
- Connection: Single RJ-45
- Cable Quality: CAT-5
- Gain Settings: 0dBFS = 20dBu & 0dBFS = 10dBu PCB shunt selectable
"Online ordering was very easy and the automated emails kept me up to date on status of the order until delivery"
Contact a product specialist!
Proudly supporting our customers since 2008
Description

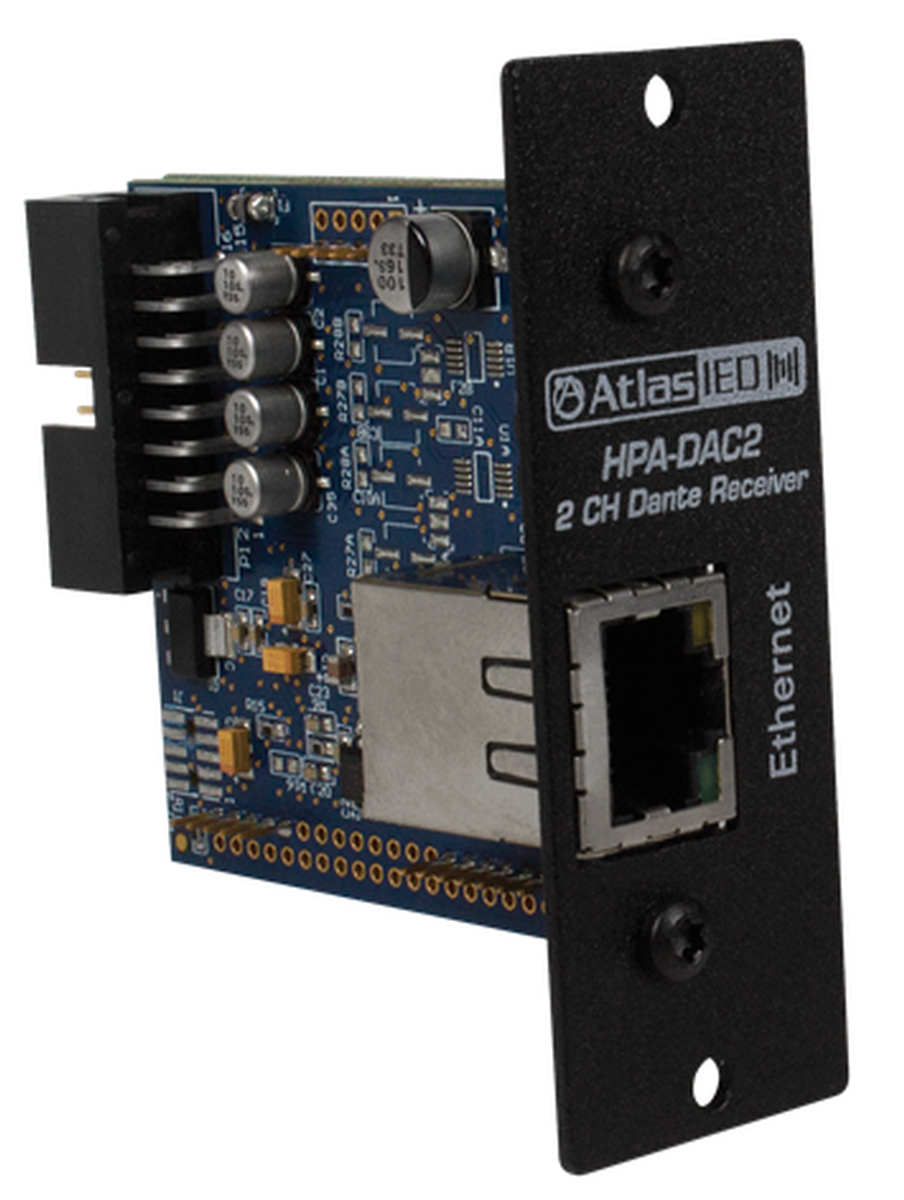

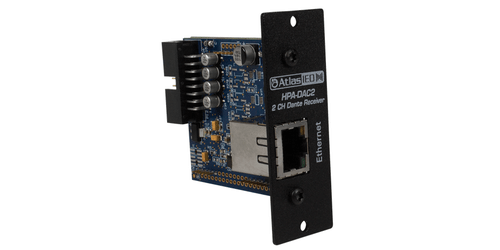

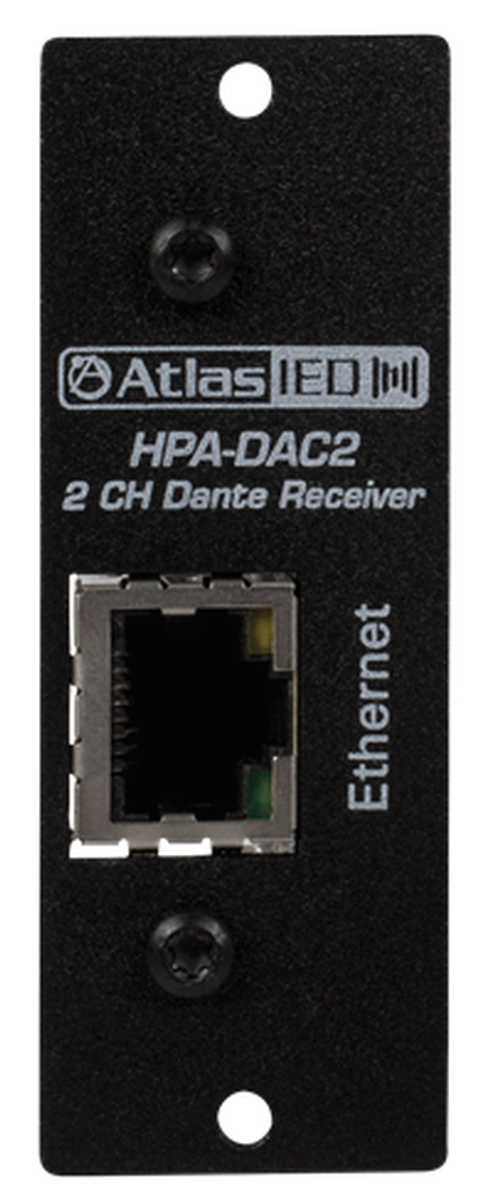

The HPA-DAC2 is a Dante receiver card designed specifically for use with Atlas Sound HPA amplifiers. This 2-input receiver provides digital audio over IP networks. Analog 1 and Dante Input 1 are isolated and then summed together to form a mixed output, both of which are controlled by the Channel-1 level control.
For use with the following units:
- HPA4202 Dual-Channel, 3200-Watt Commercial Amplifier
- HPA1302 Dual-Channel, 1300-Watt Commercial Amplifier
- HPA602 Dual-Channel, 600-Watt Commercial Amplifier
Specifications
- Indicators
- Ethernet network activity LED green / yellow
- Amplifier Interface: 16 pin HPA amplifier connections
- Electrical Specifications
- Dante Transmission Speed: 100Mbps
- Frequency Response: 20Hz - 20KHz +/- 1dB
- THD: .06% @ 1KHz
- Maximum Output Level 7dBu
- Noise 10dB Gain Setting = -83dBu
- 20dB Gain Setting = -77dBu
- Mechanical
- Dimension: 0.97" x 2.7" x 2.5"
- Weight: 2.6oz (.07kg)
- Color: Black
- Material: Steel
