AtlasIED HPA2602
Dual-Channel, 3200W Commercial Amplifier

Description

Atlas Sound's HPA2602 is a dual-channel commercial high-power amplifier. This amplifier is ideal for use in commercial distributed systems (70V/100V) as well as professional environments that require 4Ω and 2Ω loads. The HPA2602 is a terrific fit in nightclub environments, houses of worship, convention center, hotels, and retail stores.

The HPA2602 sports generation-II class-I outputs. This ensures that the sound quality is superior to class AB amplifiers. This unit's cooling fan keep it running at optimal temperatures by pushing hot air out of the front panel. The power supply can maintain stable output during fluctuating power conditions. Other key features of this amplifier include the following details:

• 70.7V/100V and 2Ω, 4Ω, and 8Ω Output
• 70.7V 2 x 1300W
• 8Ω 2 x 800W
• 4Ω 2 x 1300W
• 2Ω 2 x 1800W
• 8Ω BRIDGED 1 x 2500W
• 4Ω BRIDGED 1 x 3200W
• Balanced input Euro block Phoenix-style connectors
• Accessory card slot for optional Dante Digital Network audio card
• Fault reporting
• Soft clip limiter protection
• Stepped attenuators with security covers
• Stereo, bridge, or parallel operating modes
• Selectable input sensitivity
• High-efficiency fan cooling
• Auto-sensing 120V/220V AC mains power supply
• Meets Energy Star standards for 1W standby mode

Specifications

• Input Connectors Type: 3.5mm Euro block
• Accessory Slot: 2 Input Dante Digital Card (HPA-DAC2 Optional)
• Output Power
• 100V x 2 CH: NA
• 70.7V X 2 CH: 2 x 1300W
• 8Ohms x 2 CH: 2 x 800W
• 4Ohms x 2 CH: 2 x 1300W
• 2Ohms x 2 CH: 2 x 1800W
• 8Ohms Bridged: 1 x 2500W
• 4Ohms Bridged: 1 x 3200W
• Type: Power Amplifier, Two-Channel
• Power Supply Type: Auto-switch mode 120V/220V
• Amp Topology: Class I
• Number of Fixed Inputs: 2
• Accessory Inputs: 2
• Optional Card Slot: Yes
• Factory Default Settings
• Amplifier Configuration: 2 CH
• Level Controls: Front Panel

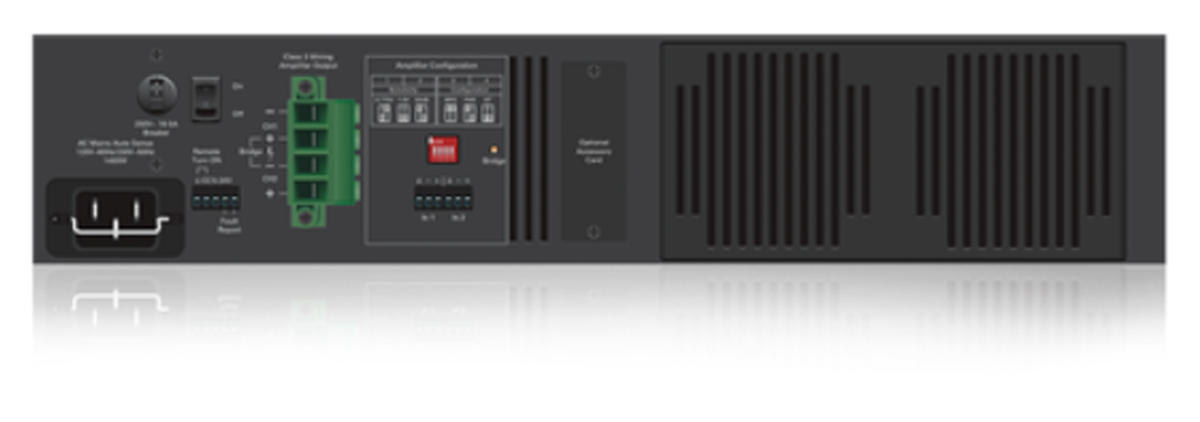

• Control Ports (Rear Panel): Remote Turn On / Off, Enable On
• Input Sensitivity: .775 / 0dBu

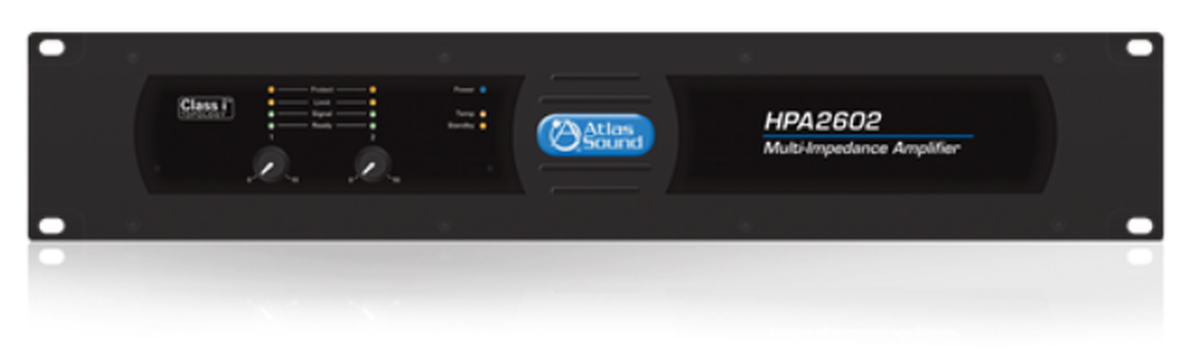

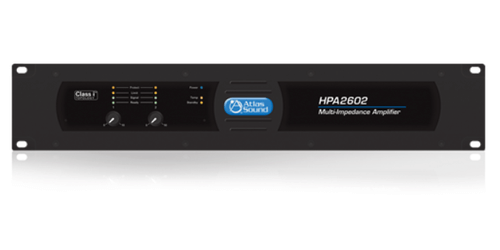

• Front Panel: Rotary Stepped Attenuators with Security Cover
• Output Terminals (Speaker)
• Output Connectors Type: Removable Euro Block, 10.16mm Pitch, Locking
• Output Connectors Number of Terminals: 4 Position
• Agency Approvals
• North America Agency: ETL
• Testing Standard: North America 60065
• FCC Class A (Conducted & Radiated Emissions): Part 15 of the FCC Rules
• CE: Yes (Includes RoHS & WEEE)
• Optional Accessories
• HPA-DAC2: Dante Digital Audio Interface Two-Channel Receive (Only)- Field Installable
• Warranty: 3 years
