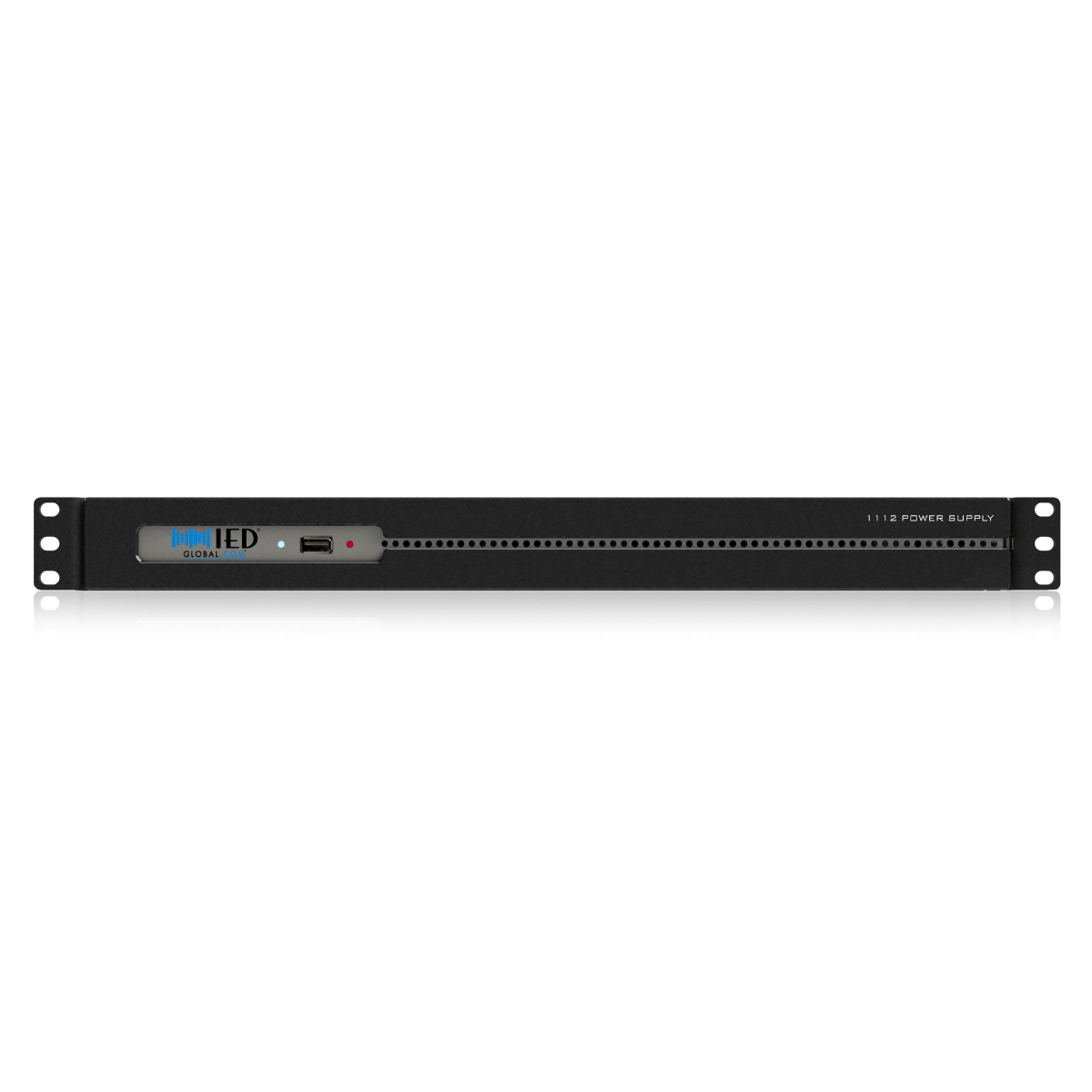

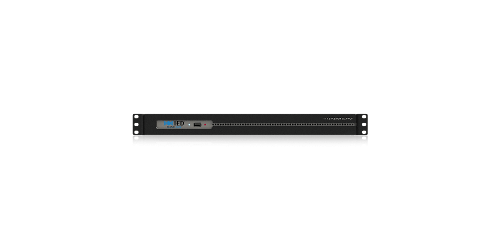

AtlasIED IED1112PS
RACK POWER SUPPLY SYSTEM FOR UP TO (8) 1000 SERIES & IP100 SERIES GLOBALCOM UNITS
- Power Supply Voltage: 100 - 240VAC
- Operating Temperature Range: 32°F - 104°F (0°C - 50°C)
- Rated Input Current (Per Supply): 8 Amps Max
- Rated Output Voltage: +12VDC (±5%)
-Lynn Y.
Description
The 1112PS is a rack mount power supply designed to provide 12V DC power to GLOBALCOM devices. The 1112PS ships with a single 1112PSM power supply module capable of delivering up to 37 Amps of 12V DC power to as many as eight (8) GLOBALCOM devices. This allows a single power supply to power multiple 1100ACS, 1200ACS, 1100MSG, 1200MSG, IP100 Series, and 1100DAB Series units. Each unit is connected to a fused power output port on the rear of the 1112PS. The connectors are secured using the supplied cover plate to prevent unwanted disconnections. A second 1112PSM power supply module can be added to provide redundancy. If a module fails, the remaining module will assume the full load. A module can be replaced while the other module is left on without interrupting power to the system. A relay is provided that will de-energize if a power supply module has failed. This closure can be monitored through the supervision system.
Specifications
- Rated Output Current (Total): 37 Amps
- Rated Output Current (Per Output): 4.6 Amps
- Relay Contact Rating: Form C, 1A 30VDC, 0.3A 125VAC
- Input: IEC 60320 Type C-13
- Output: 2-Pin Phoenix, 5.08mm Spacing
- Fault Relay: 3-Pin Phoenix, 3.8mm Spacing
- Storage Temperature Range: -40°F - 158°F (-40°C - 70°C)
- Height: 1.75" (4.4cm)
- Width (Without Rack Mount Ears): 17" (43.2cm)
- Depth: 12.25" (31.1cm)
- Recommended Mounting Depth: 18" (45.7cm)
- Weight (With Single IED1112PSM Module): 13. (5.9kg)
- Weight (With Dual IED1112PSM Modules): 15.6. (7.1kg)
