AtlasIED IED1112PSD
In-Line Modular Power Supply
Part #: IED1112PSD
Satisfaction Guaranteed!
MSRP: $296.99
Our Price:
$239.99
Top IED1112PSD Specifications
- Power Supply Voltage: 100 - 240VAC (50-60Hz)
- Operating Temperature Range: 32 degrees F - 113 degrees F (0 degrees C - 45 degrees C)
- Rated Input Current: 1.2 Amps Max
- Rated Output Voltage: +12VDC (±1%)
"Easy to order. Lots of useful info on your webpage."
Contact a product specialist!
Proudly supporting our customers since 2008
Description

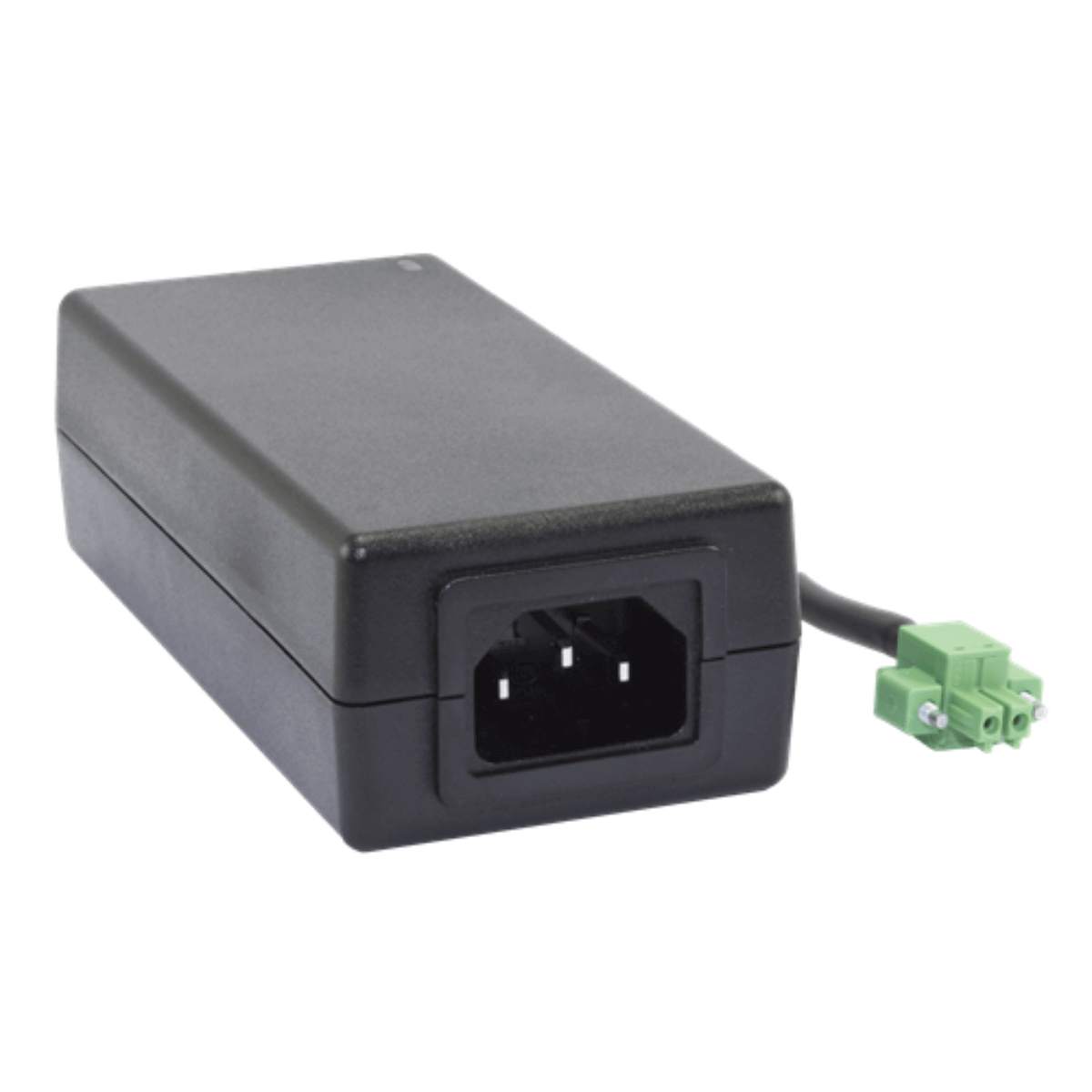

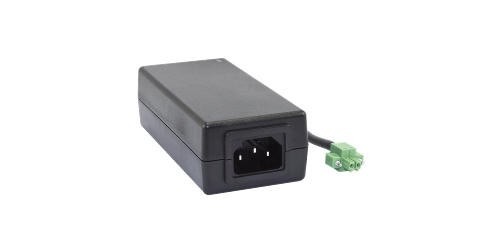

The 1112PSD is a small modular power supply designed to provide 12V DC power to individual GLOBALCOM devices. The 1112PSD is included as the default power module for the IED1100, IED1200, IP100 and IED1100DAB series devices. The module is capable of delivering up to 4 Amps of 12VDC power to a single GLOBALCOM device. The small form factor allows for a variety of mounting options for the module.
Specifications
- Rated Output Current: 4 Amps
- Storage Temperature Range: -4 degrees F - 185 degrees F (-20 degrees C - 85 degrees C)
- Input Connector: IEC 60320 Type C-13
- Output Connector: 2-Pin Phoenix, 3.81mm Spacing
- Height: 1.5" (3.8cm)
- Width: 2.4" (6.0cm)
- Depth: 4.7" (12.0cm)
- Weight: 10.9 oz (310g)
