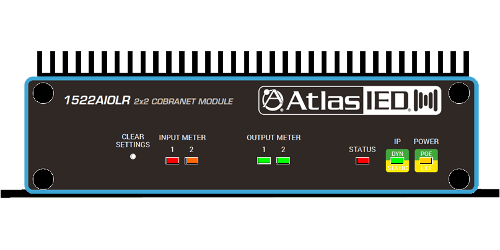

AtlasIED IED1522AIOLR
2x2 CobraNet Audio I/O Module with Logic and Relays
Part #: IED1522AIOLR
Satisfaction Guaranteed!
MSRP: $2,488.99
Our Price:
$1,992.99
Top IED1522AIOLR Specifications
- COBRANET INPUT/OUTPUT
- Type: 100BaseT Ethernet
- Connector Type: RJ-45
- Sample Rate: 48kHz
"Great working with my sales rep to figure out what options I had. Thank you again!"
-Timothy J.
-Timothy J.
Contact a product specialist!
Proudly supporting our customers since 2008
Description
The IED1522AIOLR 2x2 CobraNet Audio I/O Module is a CobraNet interface for use in the professionally installed sound market. The IED1522AIOLR receives CobraNet network audio and sends them to two balanced analog audio outputs while simultaneously inputting two channels of mic/line level balanced audio and transmitting them as CobraNet network audio. The IED1522AIOLR is perfect for applications requiring additional inputs or outputs to an existing CobraNet system.
Specifications
- Latency: 1.33, 2.66 or 5.33ms
- MICROPHONE/LINE INPUT
- Type: Balanced
- Connector Type: Terminal block
- Input Level: -50 to +24dBu in 1dB increments
- Input impedance: 5kOhm balanced
- Sample Rate: 48kHz
- Frequency Response: 20Hz to 20kHz +/-3dB
- Analog Output
- Type: Balanced
- Connector Type: Terminal Block
- Output Level: -10 to +24 dBu in 1dBu steps
- Load Impedance: -10 to +14dBu:600 Ohms or greater
- 15dBu to +24dBu: 2kOhms or greater
- Dynamic Range: >100dB
- THD+N: < -88dB
- Sample Rate: 48kHz
- Frequency Response: 20Hz to 20kHz +/-3dB
