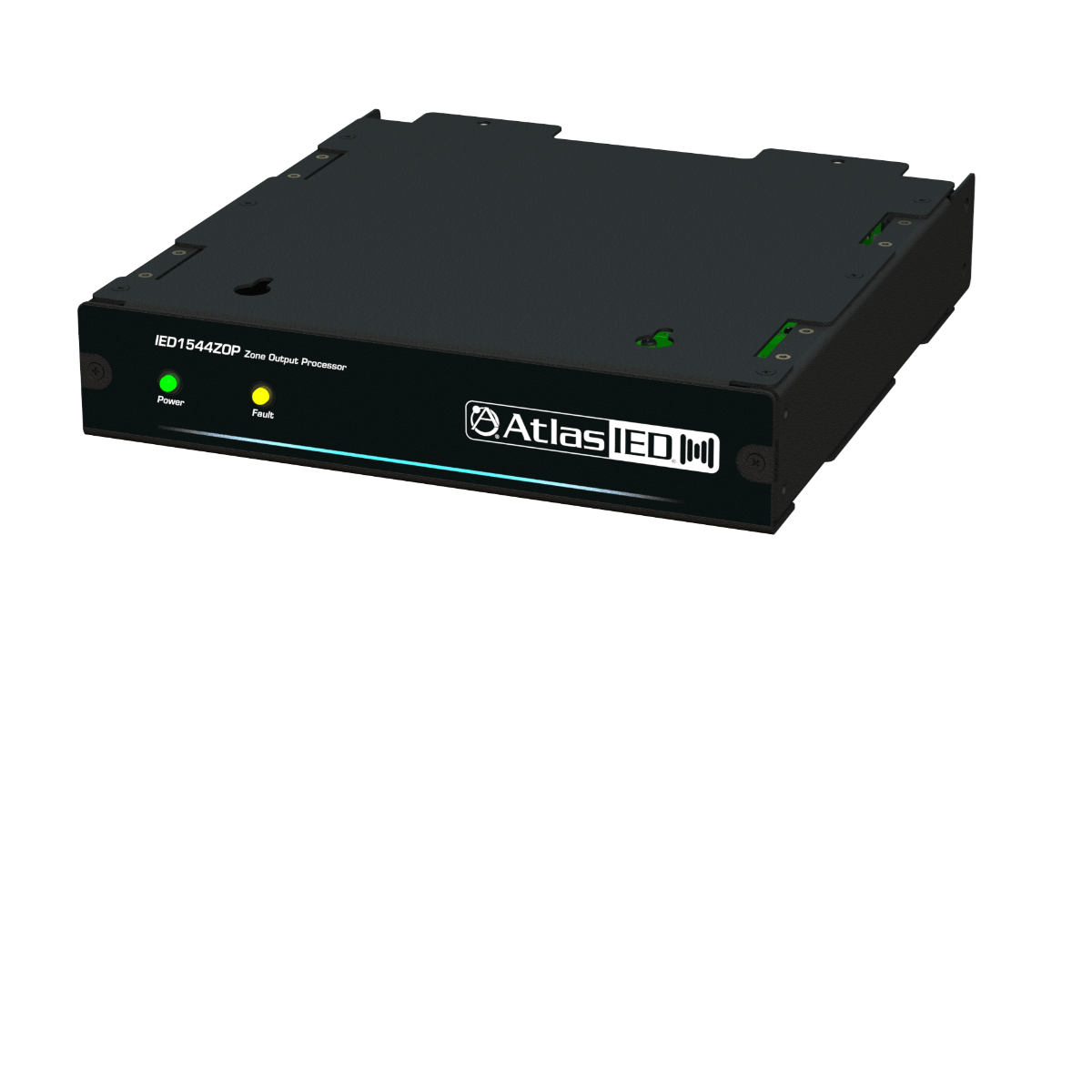

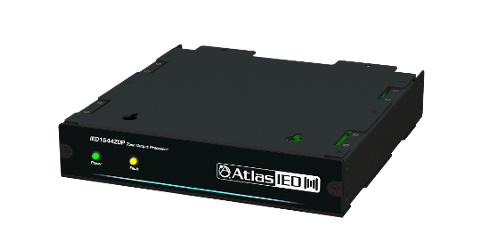

AtlasIED IED1544ZOP
4x4 Smart Zone Output Processor
- Frequency Response: ±0.3 dB, 20 Hz - 20 kHz Unweighted
- THD: <
- 0.01%, 20 Hz - 20 kHz Unweighted
- Signal to Noise Ratio: >
-Patrick S.
Description
The 1544ZOP 4x4 Smart Zone Output Processor provides all the network audio routing and zone digital signal processing functions of a DNA2404D integrated network amplifier unit. This includes Dante network audio input, equalization, level control, and IED's patented AlwaysHEARsmart ambient analysis automatic level adjustment. AlwaysHEAR. ensures the audio levels are automatically adjusted to always be set at the perfect sound level. The 1544ZOP provides four line-level balanced analog audio outputs for driving external amplifiers or powered line arrays. The 1544ZOP integrates with AtlasIED's GLOBALCOM.IP announcement controller, or may be used in stand-alone applications. Optionally, the processed zone output audio may be routed back out over the network as Dante digital audio.
Specifications
- 90 dB, 20 to 20kHz, Unweighted
- Level Control: Per Input/Output Channel
- EQ Control: 7 Parametric Plus High-Pass and Low-Pass Per Channel
- Power Requirements: 2-pin Lugless Compression-Type (Nominally Use 12, 24 or 48V Supply) Screw Terminal Max Power
- Height: 1.75" (44 mm)
- Width: 8.5" (216 mm)
- Weight: 3.25 (1.5kg) 3.75 (1.7kg) with rack ears
- Depth: 8.9" (226 mm)
