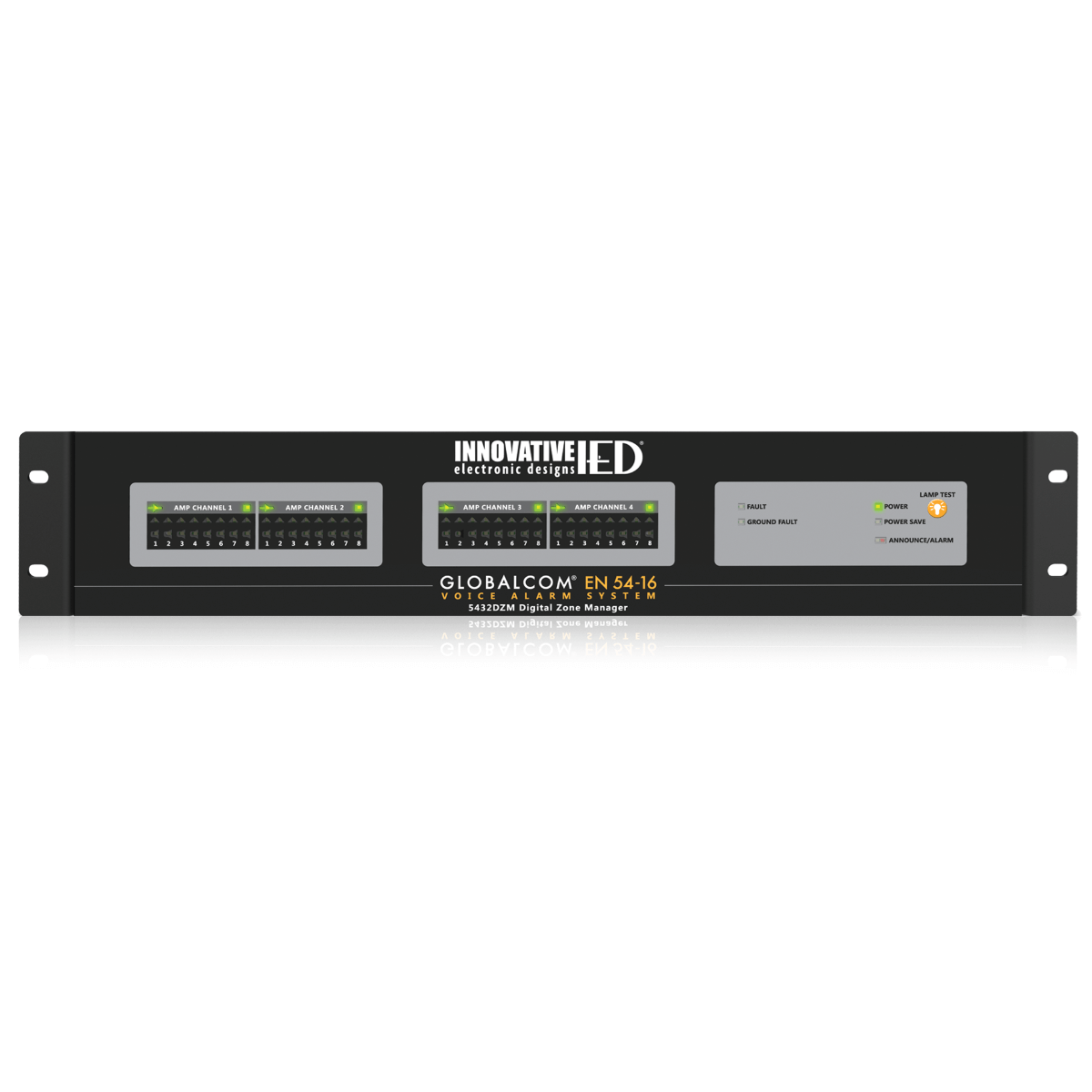

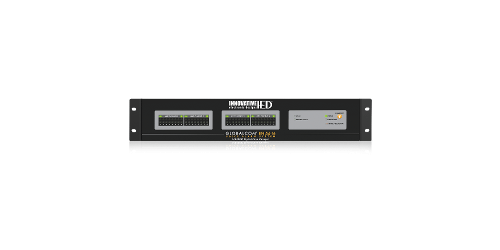

AtlasIED IED5432DZM
GLOBALCOM EN54-16 Digital Zone Manager (Up to 32 Zones)

Description

The 5432DZM Digital Zone Manager provides processing and management of up to 32 paging zones assigned from an IED 5400 Announcement Control System. It provides line level audio outputs to a paired four (4) channel amplifier unit. Digital Signal Processing (DSP) is provided on each of the four (4) output channels. This includes: gain control for the paging input, page routing, automatic ducking of background music, equalization (high and low pass filters, up to 7 parametric bands per amplifier channel, and up to 40 milliseconds of delay). The paired amplifier outputs comes back into the 5432DZM and then is distributed to up to eight (8) speaker line outputs per amplifier channel. Each of the 32 speaker lines is supervised.

Downloads

• AtlasIED IED5432DZM Specifications (PDF)
