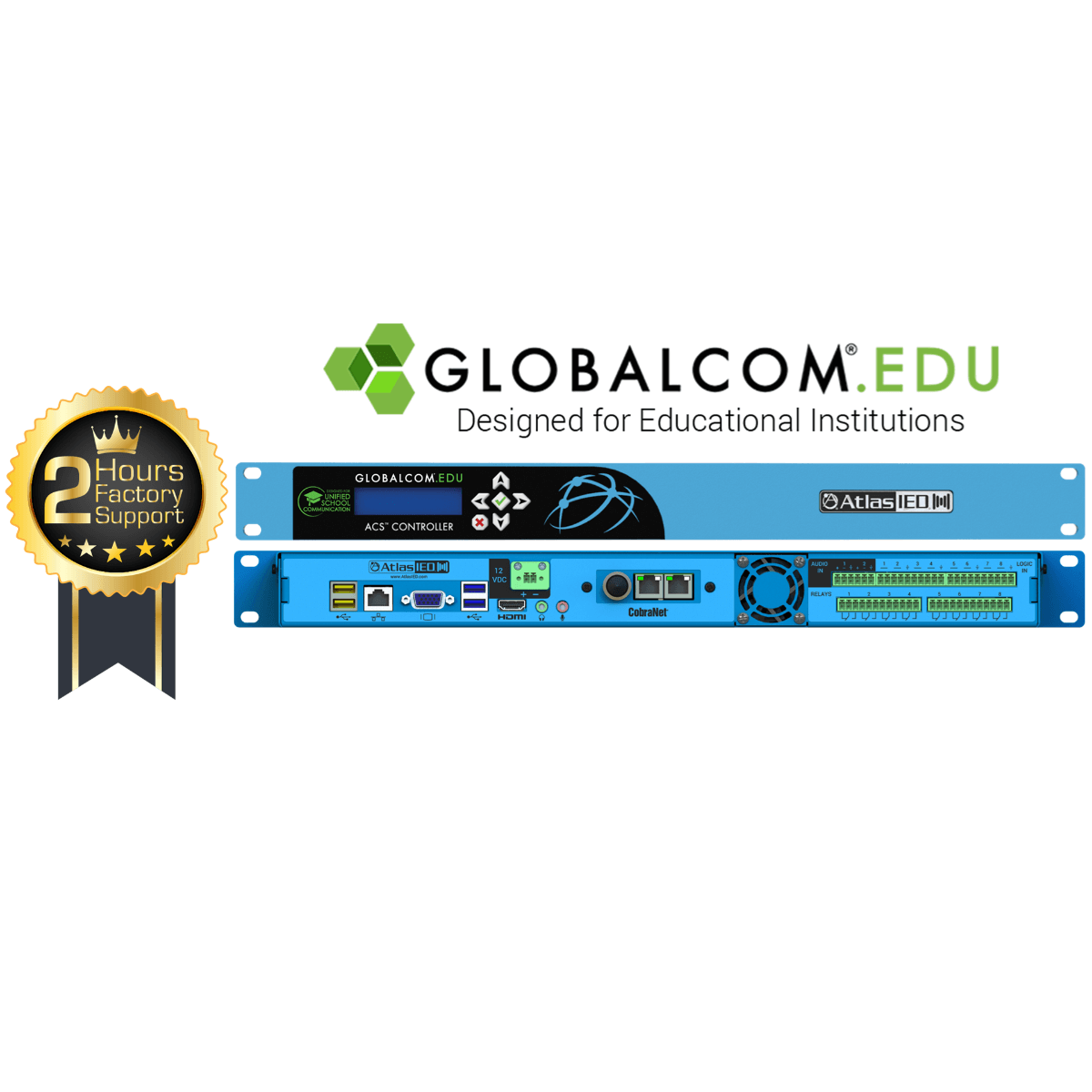

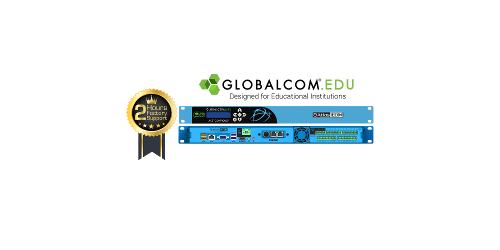

AtlasIED IP108-EDU-CS
Announcement Control System with 8 CobraNet Message Channels

Description

The IP108-EDU-CS Announcement Control System (aka ACS) is the heart of AtlasIED's next-generation GLOBALCOM.EDU mass communication platform designed for educational institutions. It manages the flow of announcements and messages between network endpoints such as digital communication stations, zone controllers, network power amplifiers, IP-based speakers and other types of IP endpoints. Additionally it serves as a gateway for external I/O devices, VoIP telephone systems and analog audio to be incorporated into the ecosystem.

Specifications

• Ethernet Connector: RJ-45
• Network Requirement: 100MBps/1000MBps
• Rack Units: 1 RU, 19"
• Operating Voltage: 12VDC
• Power Consumption: 36W, 123 BTU/hr, 31 kcal/hr Max
• Safety Listed: ETL Listed to UL 60950-1, UL 62368-1, CSA 60950-1 and CSA 62368-1
• Height: 1.75" (44mm)
• Width: 17.25" (438mm)
• Depth: 7.75" (197mm)
• Weight: 6.5 (3kg)

Downloads

• AtlasIED IP108-EDU-CS Specifications (PDF)
