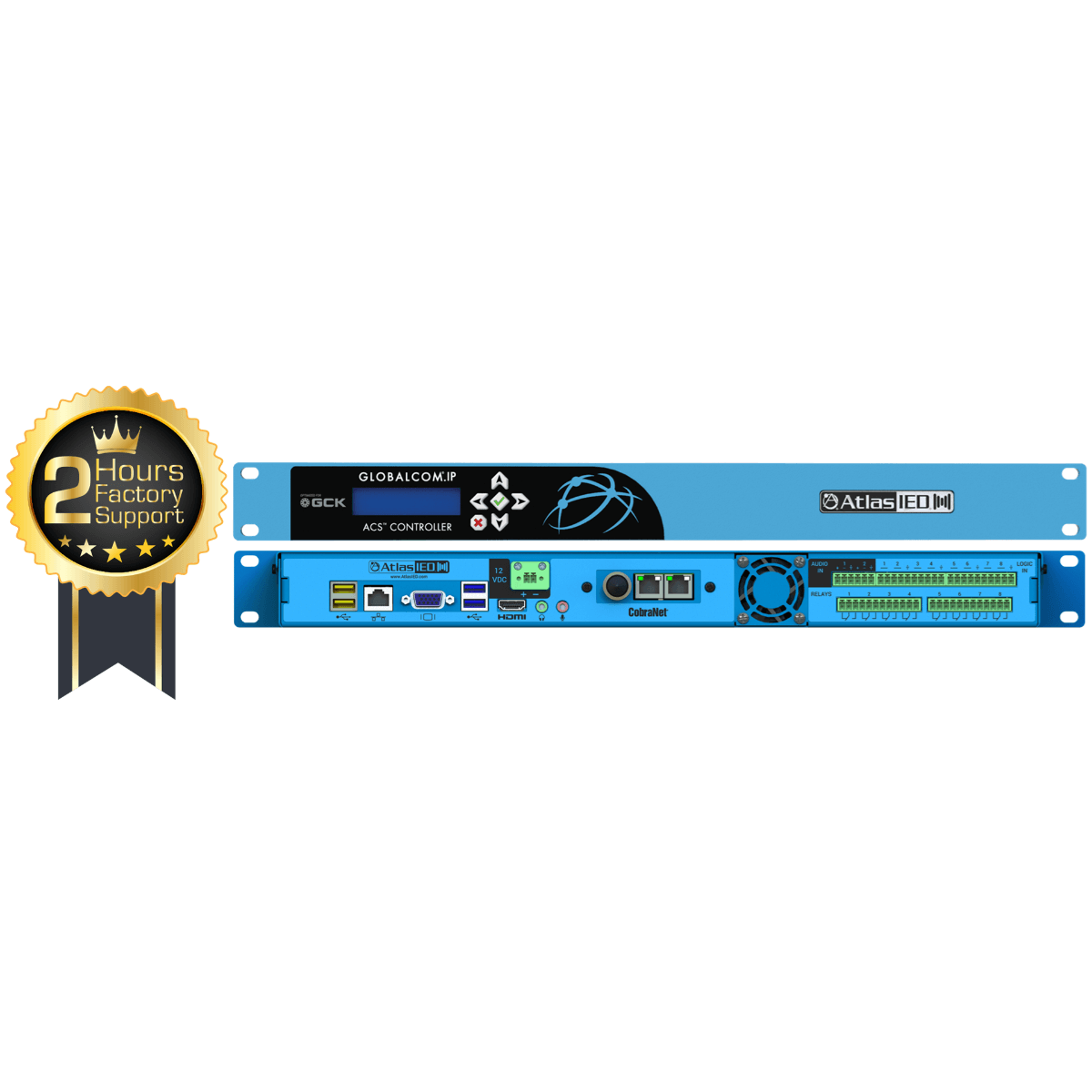

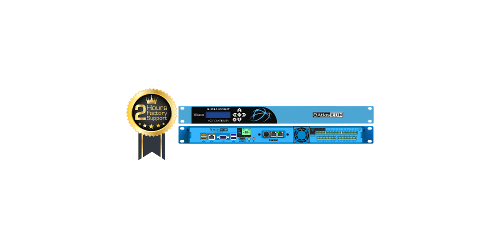

AtlasIED IP116-CS
GLOBALCOM IP116-CS Announcement Control System with 16 CobraNet Message Channels

Description

The IP116-CS Announcement Control System (aka ACS) is the heart of AtlasIED's next generation GLOBALCOM enterprise wide communications management system. It manages the flow of announcements and messages between network endpoints such as digital communication stations, zone controllers, network power amplifiers, IP-based speakers and other types of IP endpoints. Additionally it serves as a gateway for external I/O devices, VoIP telephone systems and analog audio to be incorporated into the ecosystem.

Specifications

• Ethernet Connector: RJ-45
• Network Requirement: 100MBps/1000MBps
• Rack Units: 1 RU, 19"
• Operating Voltage: 12VDC
• Power Consumption: 36W, 123 BTU/hr, 31 kcal/hr Max
• Safety Listed: ETL Listed to UL 60950-1, UL 62368-1, CSA 60950-1 and CSA 62368-1
• Height: 1.75" (44mm)
• Width: 17.25" (438mm)
• Depth: 7.75" (197mm)
• Weight: 6.5 (3kg)
