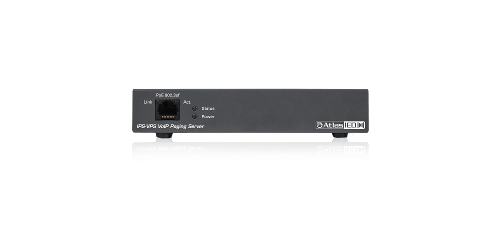

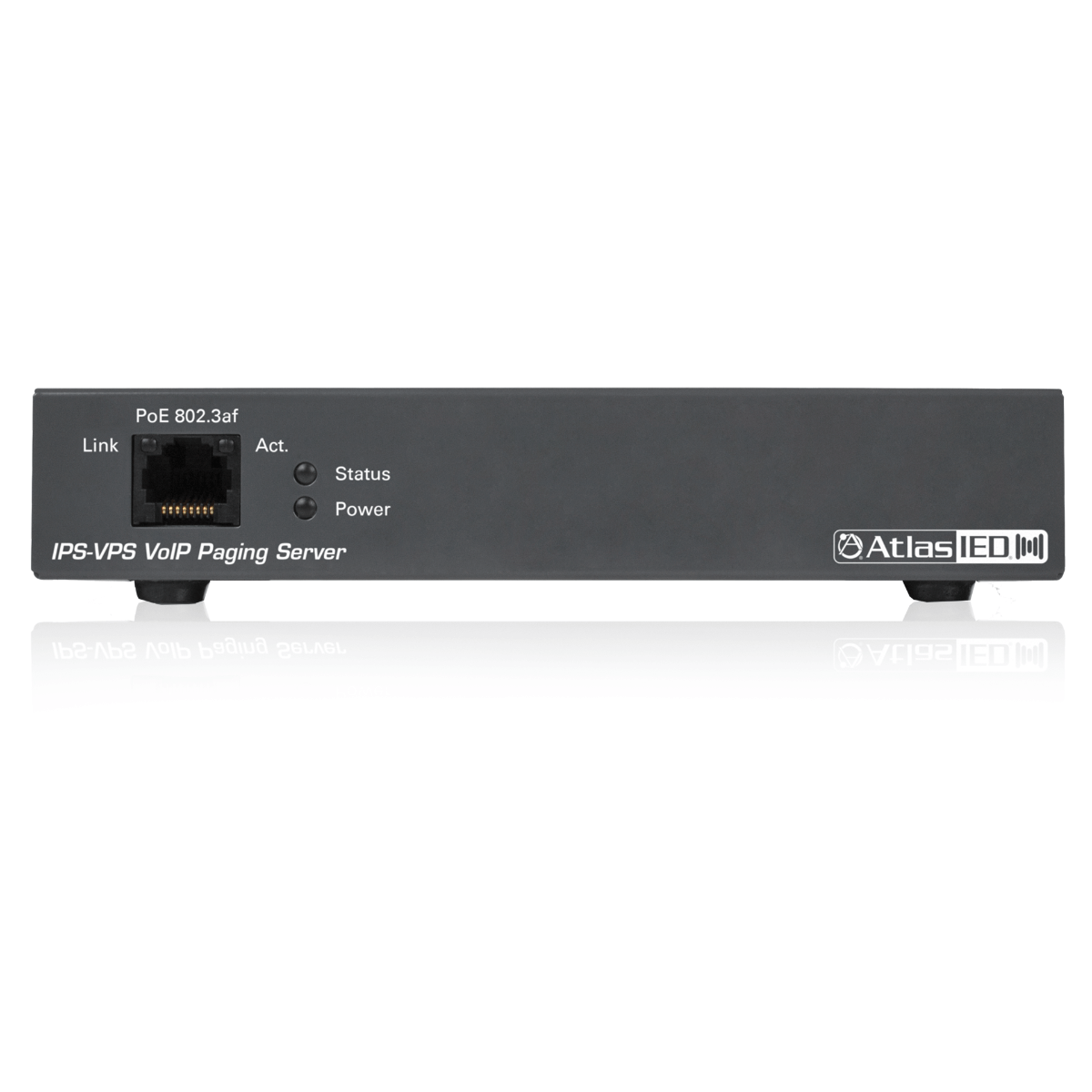

AtlasIED IPS-VPS
VoIP V3 Paging Server
Part #: IPS-VPS
This product has been discontinued
For further information and alternative products, please call us at 888-999-3759 or click here to contact us.
Top IPS-VPS Specifications
- Ethernet I/F: 10/100 Mbps
- Protocol: SIP RFC 3261 Compatible
- Power Input: PoE 802.3af or 48VDC
- Payload Types: G711
"Custom Equipment w/ quick turnaround. CERTIFIED FRESH!"
Contact a product specialist!
Proudly supporting our customers since 2008
Description
AtlasIED IPS-VPS is a VoIP paging server that is perfect for creating a group paging solution through multicast transmission for any combination of registered SIP endpoint devices and an analog overhead system in an environment where the paging servers or VoIP communications managers may not support paging groups or where 3rd party notification applications are not required.
Specifications
- Operating Temperature Range: -30 to 55 C (-22 to 131 F)
- Regulatory Compliance: FCC Class A, UL 60950
- Page Port Output: Balanced 600 ohms 5VPP
- Line In: Input Signal Amplitudes: 2.0 VPP Maximum
- Line In: Input Impedance: 10k ohms
- Line Out: Output Signal Amplitudes: 2.0 VPP Maximum
- Line Out: Output Level: +2dBm Nominal
- Line Out: Total Harmonic Distortion: 0.5% Maximum
- Line Out: Output Impedance: 10k ohms
- Width: 6.11" (155.19mm)
- Height: 1.15" (29.21mm)
- Depth: 4.05" (102.87mm)
- Weight: 1.8. (0.82kg)
