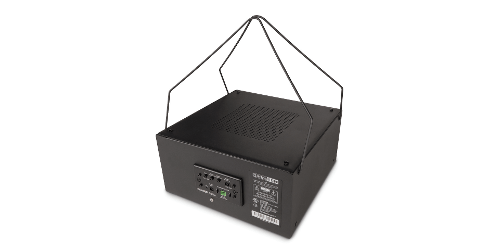

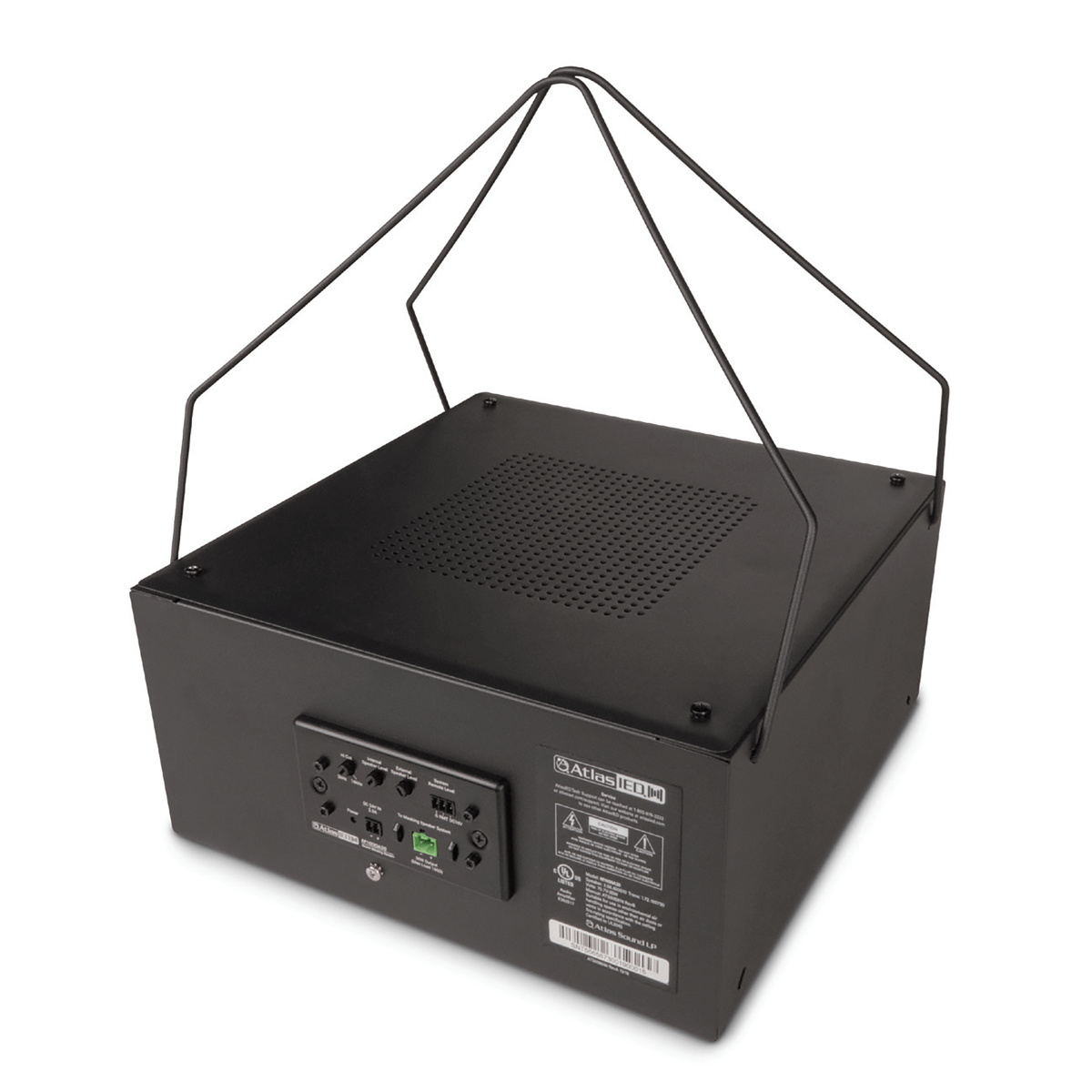

AtlasIED M1000A35
8" Powered / Active Sound Masking Speaker
- System Type: Self-Contained Active Sound Masking System
- Sensitivity: 97dB Peak, 94dB Average
- 70.7V Power Taps: .25, .5, 1, 2 and 4
- Width: 11 9/16" (29.37002 cm)
Description
The AtlasIED M1000A35 is a self-contained sound masking system that increases speech privacy and enhances workplace acoustics. An M1000A35 masking system is ideal for small to medium size installations. Depending on the installation conditions and the speaker tap settings when the M1000A35 is paired with M1000 passive speakers, masking coverage can be over 12,000 sq. ft. Consult with AtlasIED for system design assistance. The M1000A35 features a compact 12"x12"x6" enclosure utilizing an efficient wide range 8" speaker with a frequency response of 80Hz - 16kHz and is powered by an internal 5-Watt amplifier. The M1000A35 also features an additional 30-Watt amplifier output to drive other non-powered masking speakers such as the AtlasIED M1000, M1000R and the M2000 series. Separate amplifier level controls are incorporated to control the internal speaker and second amplifier output. Both amplifier channels produce an ideal speech privacy / sound masking spectrum by using a non-repeatable pink noise that can be contoured to the environment by utilizing the specialized variable filter. The M1000A35 features a VCA remote level control port that works with external 10k pots to allow for remote level adjustments. The optional AtlasIED ATMASKSC is specially designed to be used with the M1000A35. The ATMASKSC features remote 1dB precision level adjustments and will not allow the masking system to be accidentally turned off. The ATMASKSC is well suited to properly support commissioning a sound masking system.
Specifications
- Speaker: 8" Full Range, Qty 1
- Amplifier Power: Internal 5-Watts, External Amplifier Output 30-Watts (Max Load 166 Ohms)
- Masking Power: Standalone 225 sq ft, 30W Secondary Output (see data sheet)
- Frequency Response: 80Hz - 16kHz
- Masking Generator: Contoured Pink Noise
- Level Control: Qty 2
- 1 x Internal Speaker, 1 x Extermal Amplifier Output
- Output Voltage: 70.7V
- GPIO: VCA Remote Level, 10V, 3-position Euro-Style
- PSU: Included In-Line 100-240V Input, 24VDC 2.5A Output
- Dimensions (HxWxD): 5.67" x 11.61" x 11.61" (144mm x 295mm x 295mm)
- Weight: 11.25lb (5.11kg)
- Safety Listed: MA100035: UL2043, UL60065, CE
- External Power Supply: UL, CE
