AtlasIED MAGPIE2-1
Atlas Learn AL2450, 2 MAGPIE Wireless Mics, and IR Dome Kit

Description

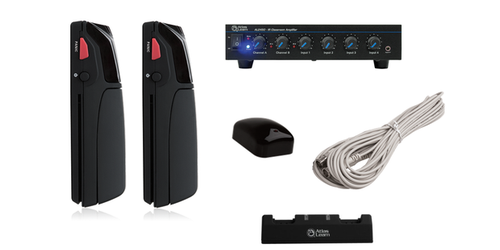

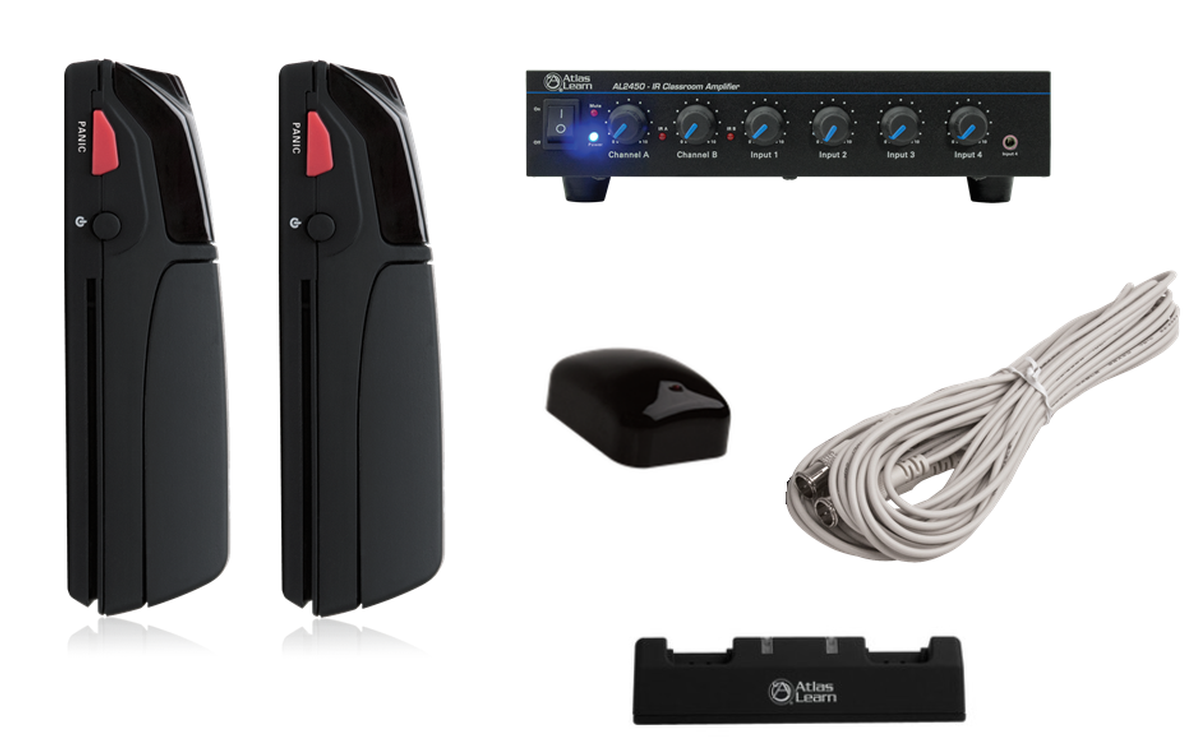

This is your all-in-one, complete MAGPIE Atlas Learn (AL) amplified listening system from Atlas Sound: the MAGPIE2-1. This kit contains everything that you need to bring MAGPIE's amplified listening to your learning environment. It comes with the following products:

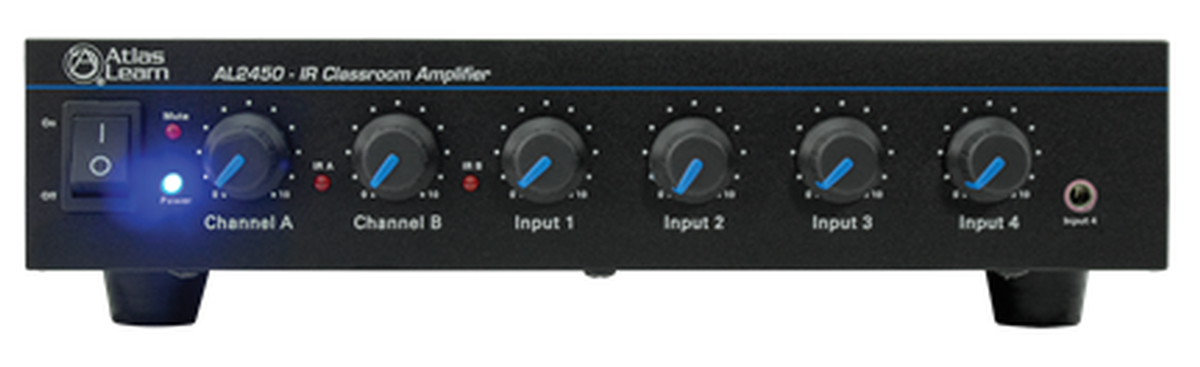

1 AL2450 amplifier/receiver
Atlas Sound's AL2450 is the hinge pin coordinator for all Atlas Learn (AL) products. This receiver/amplifier is designed to work with AL-MAGPIE and AL-MYNA transmitter products. This receiver/amplifier receives signal from the transmitter, and then projects the sound out of speakers. The AL2450 can support up to 3 infrared wireless transmitters.

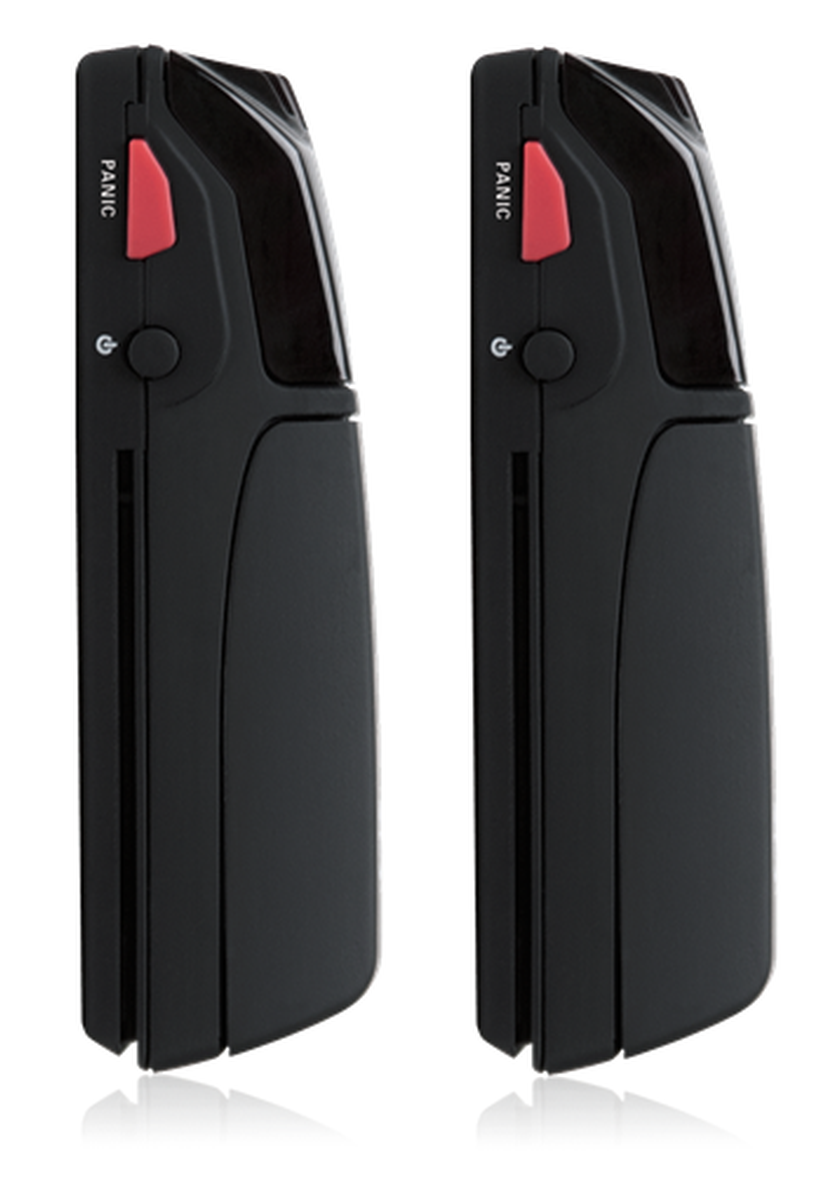

2 AL-MAGPIE infrared microphones
Atlas Sound introduces the Atlas Learn amplified learning system. Part of this system is the AL-MAGPIE: an infrared wireless microphone. The AL-MAGPIE features volume control, enabling users to control the output of their voices for optimal clarity and sound.

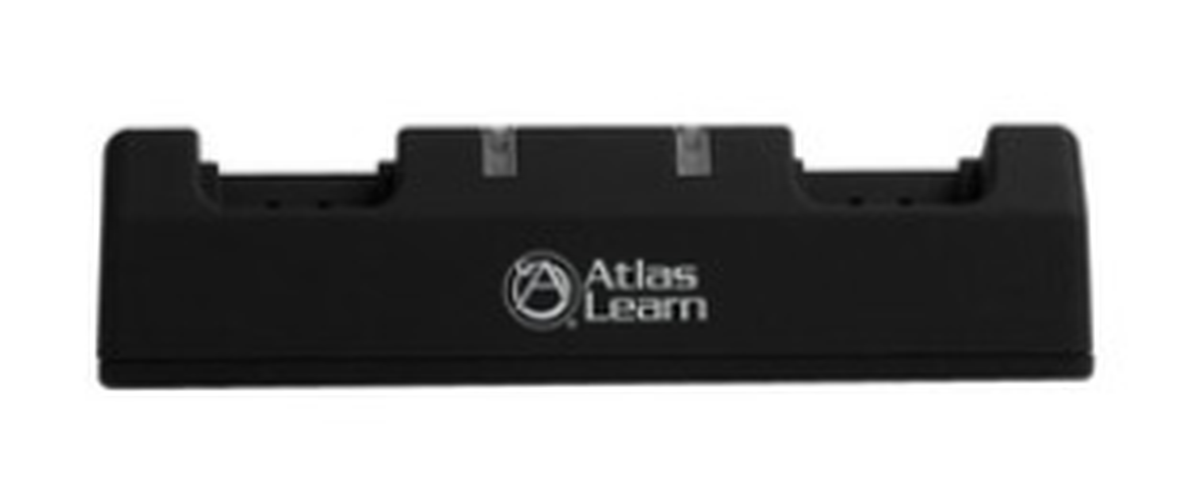

1 AL-MAGPIE-NEST charging station
Atlas Sound's Atlas Learn (AL) line of amplified learning systems introduces a charging dock made specifically for AL-MAGPIE wireless microphones. The AL-MAGPIE-NEST is a outfitted to charge up to 2 AL-MAGPIE microphones

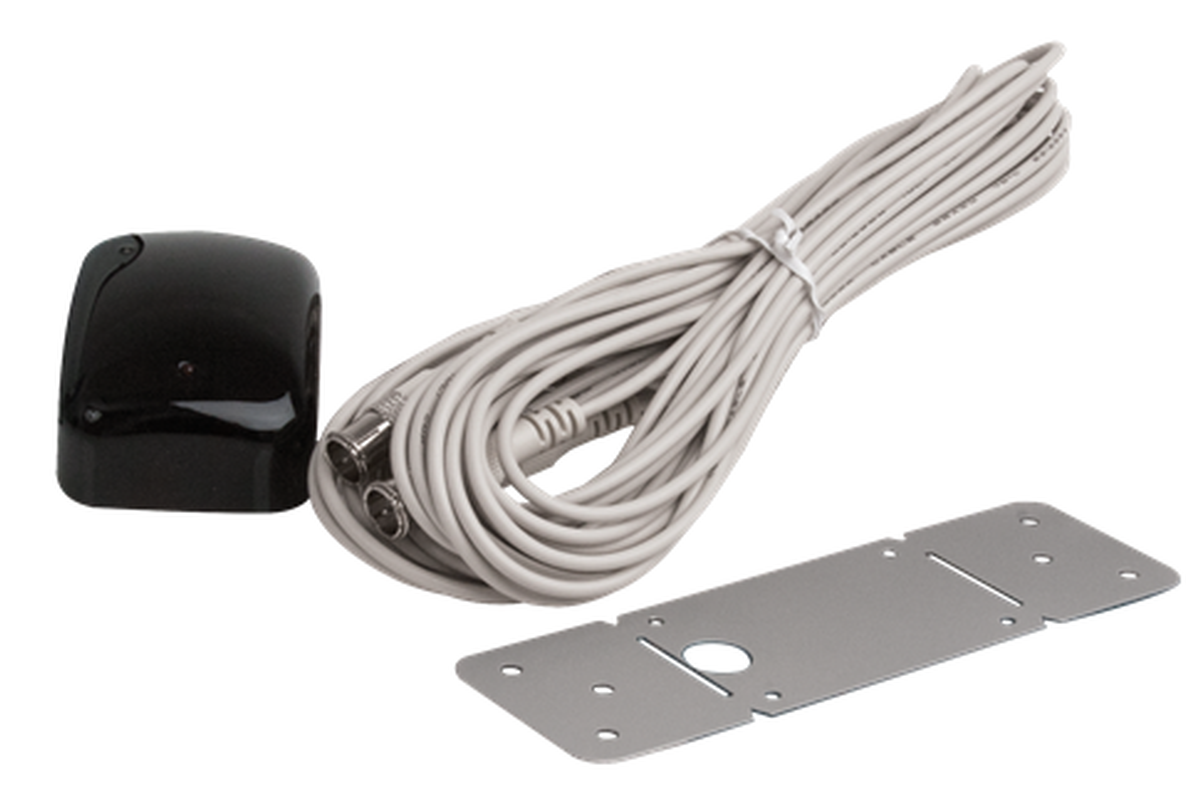

1 AL-IRDS infrared dome transmitter and 10 meters of coaxial cable
The AL-IRDS is wall- and ceiling-mountable. Each AL-IRDS includes a 10 meter RG6 coaxial cable for connecting the AL-IRDS to an AL2430 amplifier/receiver. The AL-IRDS works with both the AL-MYNA and AL-MAGPIE infrared wireless microphones.

Specifications

• Number of Fixed Inputs: 6
• Input Quantity: 6 (Four RCA, 2 IR)
• Input Type: Infrared / Balanced / Unbalanced Input Connectors: Type F-Pin (IR) / Dual RCA (Inputs 1 - 4) / 3.5mm Aux (Front Panel Input 4)
• Input Impedance: 56k Computer / 22k Multimedia / 75 IR
• Input Sensitivity: -10dB Multimedia / 14dB Priority Page
• Maximum Input Level: dBu &Vrms NA
• Accessory Inputs: 0
• Output Power (Note 1)
• 100V: 1 x 50-Watts
• 70.7V: 1 x 50-Watts
• 8 Ohm: 1 x 50-Watts
• Factory Default Settings (As Shipped)
• Amplifier Configuration: 1 CH
• Level Controls: Front Panel
• Control Ports (Rear Panel): No
• Front Panel: Rotary Stepped Attenuators
• Status Indicators
• Power: Blue
• Mute: Red
• GPIO Ports (Rear Panel)
• Number of Ports: 1
• Type of Connector: 3-Pin Phoenix
• Functions: Relay Output NO/NC (5A@36V)
• Output Connectors Type: Removable Euro Block, 7.62mm Pitch, Locking
• Output Connectors Number of Terminals: 4 Position
• Wire Size: 6-18 Gauge (Class 2 Wire)
• Total Harmonic Distortion 1 kHz and 1 dB Below Rated Power: .033%
• Frequency Response: 20Hz - 20kHz +/- 2dBV
• Gain: 35dB
• Crosstalk: CH1-2 & CH 2-1 NA
• Max Voltage Per Output: 8 20V
• Max Current per Output: 8 2.5A
• Operating Voltage Auto Switch, 50/60Hz: 100V - 240V
• Minimum Power-Up Voltage: 48V
• Maximum Operating Voltage: 256V
• Mains Connector: Barrel Connector
• Power Cord (Ships With): In Line 30VDC / 3A
• Power Consumption & Current Draw @ 120V AC Mains
• Idle Active: Amps - 170mA / Watts - 9.4W
• Average Power 8 Ohms, All CH Driven: Amps - 610mA / Watts - 43.8W
• Average Power 70.7V, All CH Driven: Amps - 490mA / Watts - 34W
• Max Power 8 Ohms, All CH Driven: Amps - 790mA / Watts - 58W
• Max Power 70V, All CH Driven: Amps - 790mA / Watts - 58.6W
• Rack Mount Requirements: 1 RU, 8.5"
• Dimensions: Unit 8.5" W x 1.75" H x 11.25" D / With Feet and Knobs 8.5" W x 2.25" H x 12.5" D
• Shipping Dimensions: 10.96" x 5.7" x 13.9" (278mm x 145mm x 353mm)
• Weight: Unit 7 lbs (3.18 kg)
• Shipping Weight: Shipping 9 lbs (4.1 kg)
• AL2430-RMK: Rack Mount Kit for AL2450
• Warranty: 3 years
•
  AL-MAGPIE Specifications
• IR LEDs: 6
• Aux Input: 1, 3.5mm Phono Jack, Mic Level
• External Controls: Power, Panic, Mic Volume
• Internal Controls: Lockout, Mic A/B Channel
• Dimensions: 1.15" x 1" x 3.8" (29mm x 25mm x 97mm)
• Weight With Battery: .14lb (65g)
• Weight Without Battery: .08lb (36g)
• Warranty: 1 year
•
  AL-MAGPIE-NEST Specifications
• AL-MAGPIE Ports: Two Charging Ports
• Charge Indicator LEDs: Two Charge Indicator LEDs
• UL Listed Power Supply: 100-240V (50/60Hz) .2A In/ .5VDC 1A out
• Height: 1.75"
• Width 6.5"
• Depth 2.75"
• Warranty: 1 year
•
  AL-IRDS Specifications
• Length: 2 13/16" (71.44mm)
• Width: 2" (50.8mm)
• Height: 1 1/4" (31.75mm)
• F-Pin Connector Height: 0.5" (12.7mm)

Downloads

• Atlas Sound AL-MAGPIE Owner's Manual (PDF)
• Atlas Sound AL2450 Owner's Manual (PDF)
• Atlas Sound MAGPIE2-1 Atlas Learn Brochure (PDF)
