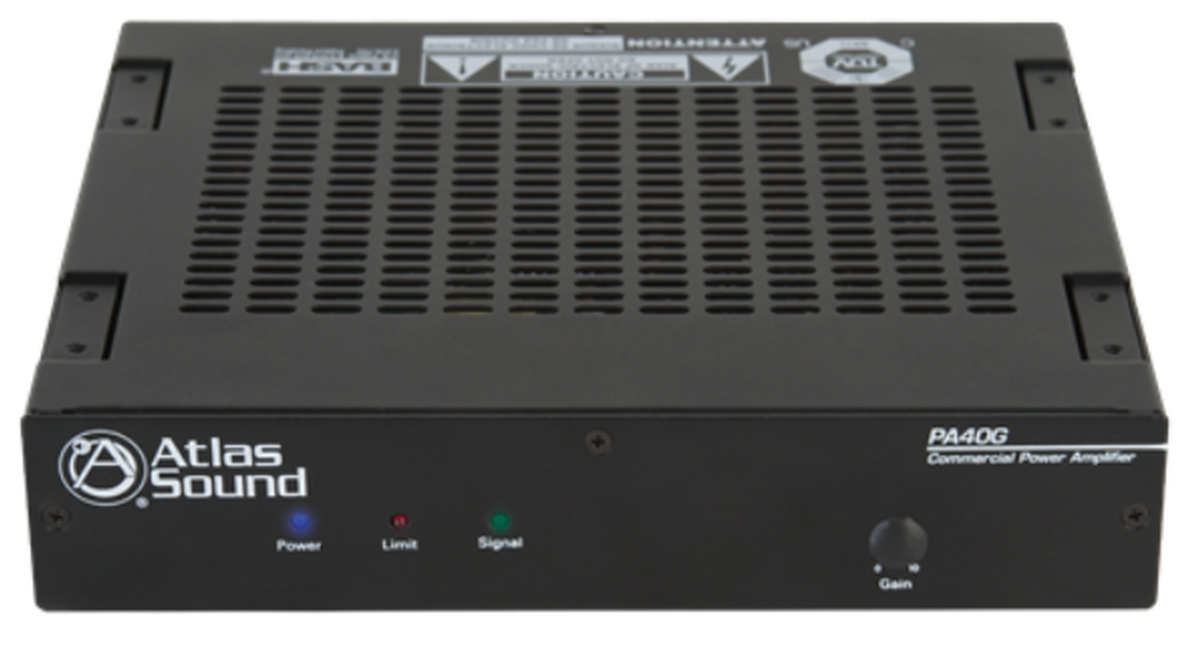

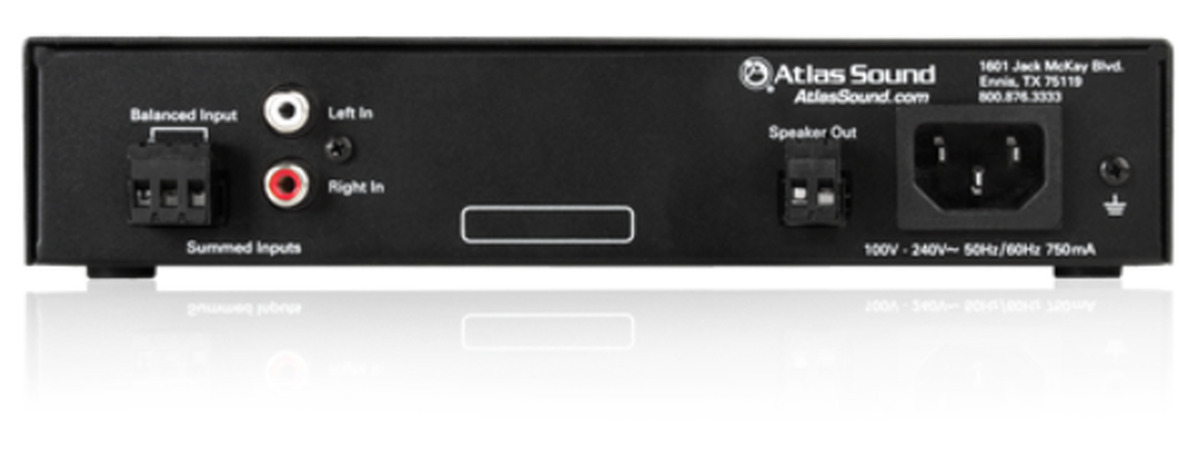

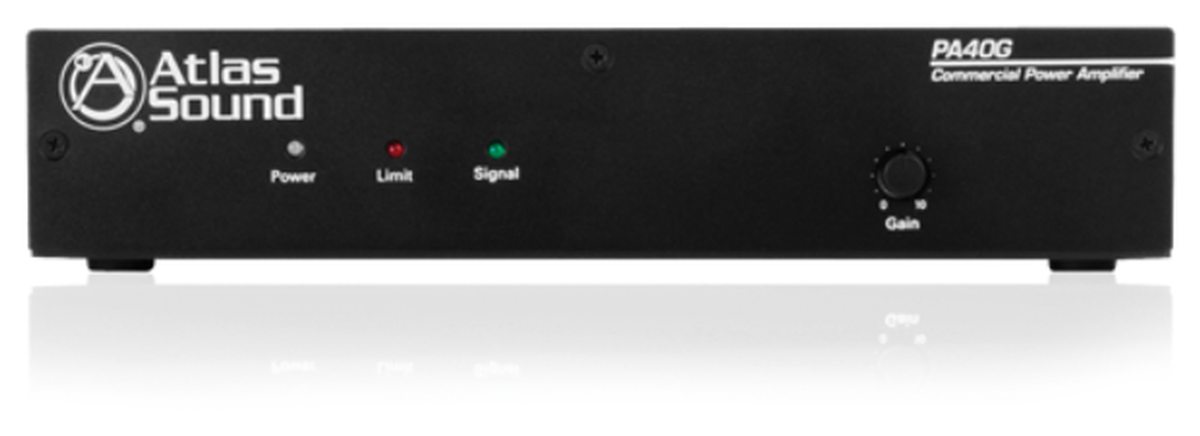

AtlasIED PA40G
Single Channel, 40W Power Amplifier with Global Power Supply
- Power Output
- PA40G: 40W @ 70.7V (125Ohms), 40W @ 100V (250Ohms)
- PA60G: 60W @ 70.7V (83Ohms), 60W @ 100V (166Ohms)
- Frequency Response: 50Hz - 20kHz
-Maciej Z.
Description
AtlasIED is a world-renowned audio-visual equipment provider. The brand has revolutionized the AV industry with its unique collection of state-of-the-art and high-quality audio-visual equipment. One such piece of equipment is the AtlasIED PA40G. This power supply is one of the newest in a long line of high-quality audio-visual equipment that the AtlasIED has produced and ensures that your event does not fall through due to power issues. Whether in the classroom or at a corporate event, it will make your experiences unforgettable.
Uninterrupted and reliable power supply options are necessary in events, commercial settings, or corporate settings to ensure the user's power demands are met. Hence, the AtlasIED PA40G comes with the PA40G Power Amplifier Whole Unit View. A power amplifier converts a relatively low-powered signal into a significantly more powerful one. In a large-scale setting, such as an auditorium or a live event, where audio distribution is necessary to ensure audience engagement, the PA40G Power Amplifier Whole Unit View is ideal. It is also perfect for background music and medium sound masking systems.
AtlasIED produces unparalleled equipment due to its seamless blend of high-tech products with user-operability. This can be seen in the AtlasIED PA40G, which also has LEDs to help locate it in the dark. It has a 100VAC-240VAC power supply.
Additionally, the AtlasIED PA40G is designed to include all the functionalities and features that professional installation personnel need to fulfill the expectations of their customers. Combined with its small and compact design, enabling it to be fitted in small, congested spaces, the AtlasIED PA40G is the ideal AV product for a small-scale event.
The AV equipment manufactured by AtlasIED emphasizes functionality along with quality. Their popular AV systems product lines ensure that both the user and the installer meet their respective events' needs.
Specifications
- THD+N: 0.5% or Less @ 1kHz, Rated Output
- Sensitivity Line Input: 500mV (600Ohms)
- RCA: 500mV (10kOhms)
- Output Regulation: Less Than 2dB, No Load to Full Load
- Signal to Noise Ratio: Balanced Input = >55dB / Unbalanced RCA Summed = >55dB
- Indicators: Power, Signal, Limit
- Power Consumption
- PA40G Idle: 8 Watts, 0.075A, 27 BTU
- Average: 24 Watts, 0.26A, 81 BTU
- Max: 71 Watts, 0.8A, 242 BTU
- Dimensions: 1.75" (1RU) x 8.5" x 7.81" (44mm x 216mm x 198mm)
- Unit Weight: 2.9 lbs (1.32kg)
- Shipping Weight: 3.1 lbs (1.4kg)
- Fuse
- PA40G: T630mA
- Warranty: 3 years
