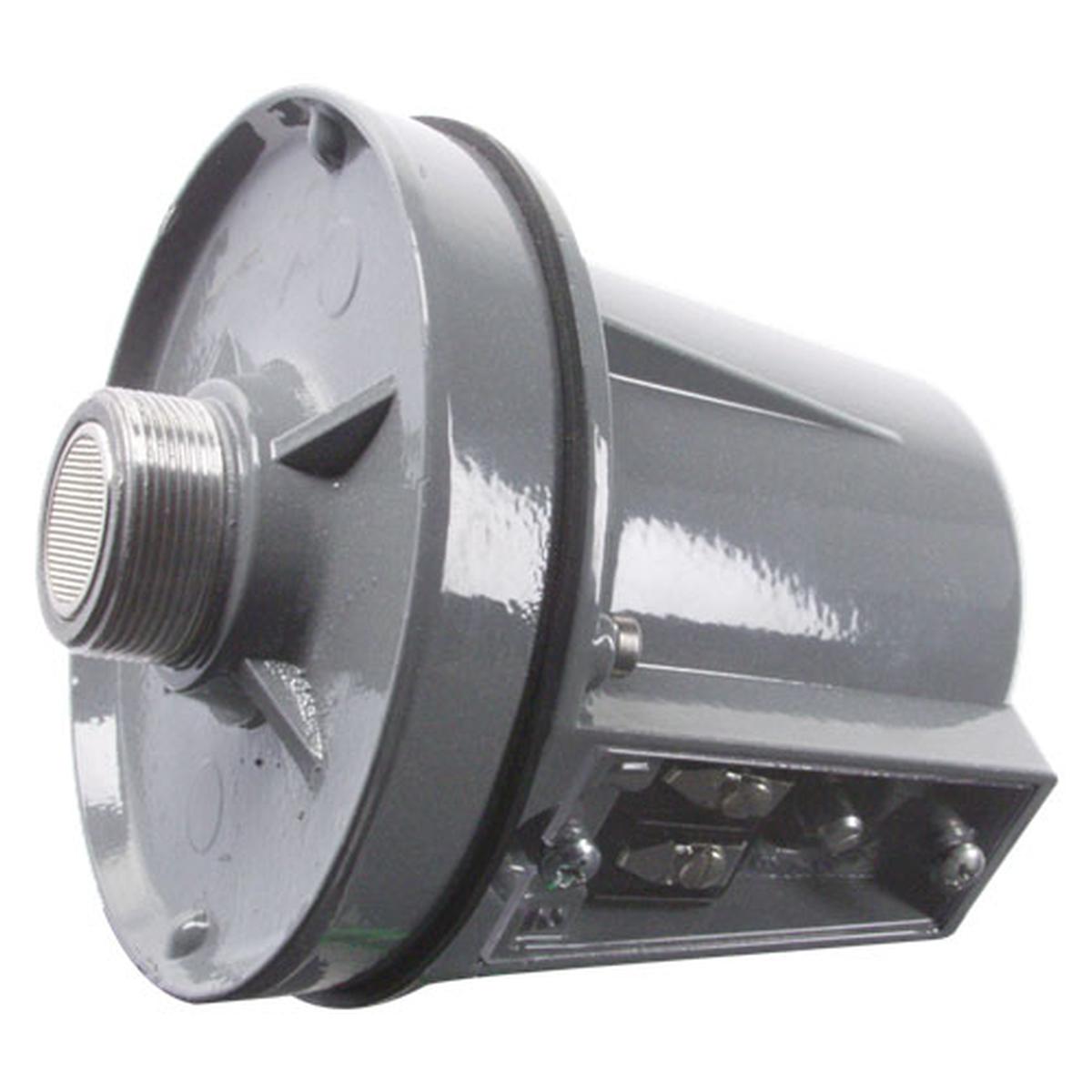

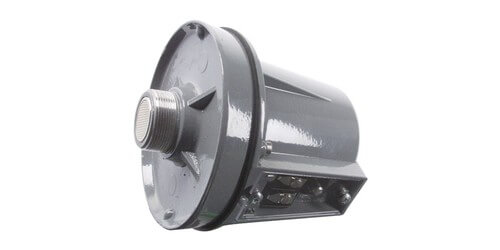

AtlasIED PD-30T
Weather Resistant Compression Driver w/ 70V - 30W
Part #: PD-30T
Satisfaction Guaranteed!
MSRP: $171.99
Our Price:
$139.99
Top PD-30T Specifications
- Depth 4 1/2"
- Diameter 4 1/2"
- Shipping Weight 4.00 lbs
- Frequency Response 300 - 3,900 Hz
"Love the products we've ordered- they've been awesome!"
Contact a product specialist!
Proudly supporting our customers since 2008
Description
PD-30T Compression Driver with 70.7V-30W Transformer made by Atlas Sound. This is a fully environment-resistant compression driver for indoor or outdoor applications recommended for use in expansive and/or high-ambient sound-level areas.
The unit has a power rating of 30 watts, a 1.5" voice coil and a plane wave frequency response of 300 - 3,900 Hz (+5dB). Transformer-equipped Model PD-30T incorporates the exclusive Atlas Sound Vari-Tap Control/Connect Center with a screwdriver selectable ohms/watts switch. The integral 70V line matching transformer is varnish impregnated for maximum environment resistance and life expectancy. It also includes a protective terminal cover with built-in strain relief to assure secure cable connection. The PD-30T is terminated in standard 1-3/8"-18" thread male couplings for use with screw-on horns.Specifications
- Impedance 70.7V
- Power Rating 30W
- Sensitivity 113.6 (avg) 300-3,900 Hz (+5dB)
