AtlasIED RX14-30SFD
14RU Rolling Equipment 30" Deep Rack with Front and Rear Doors

Description

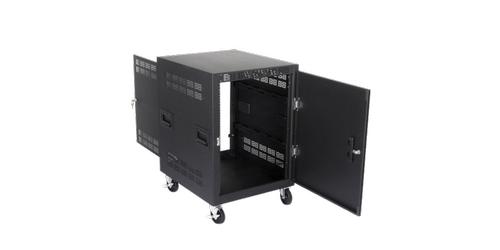

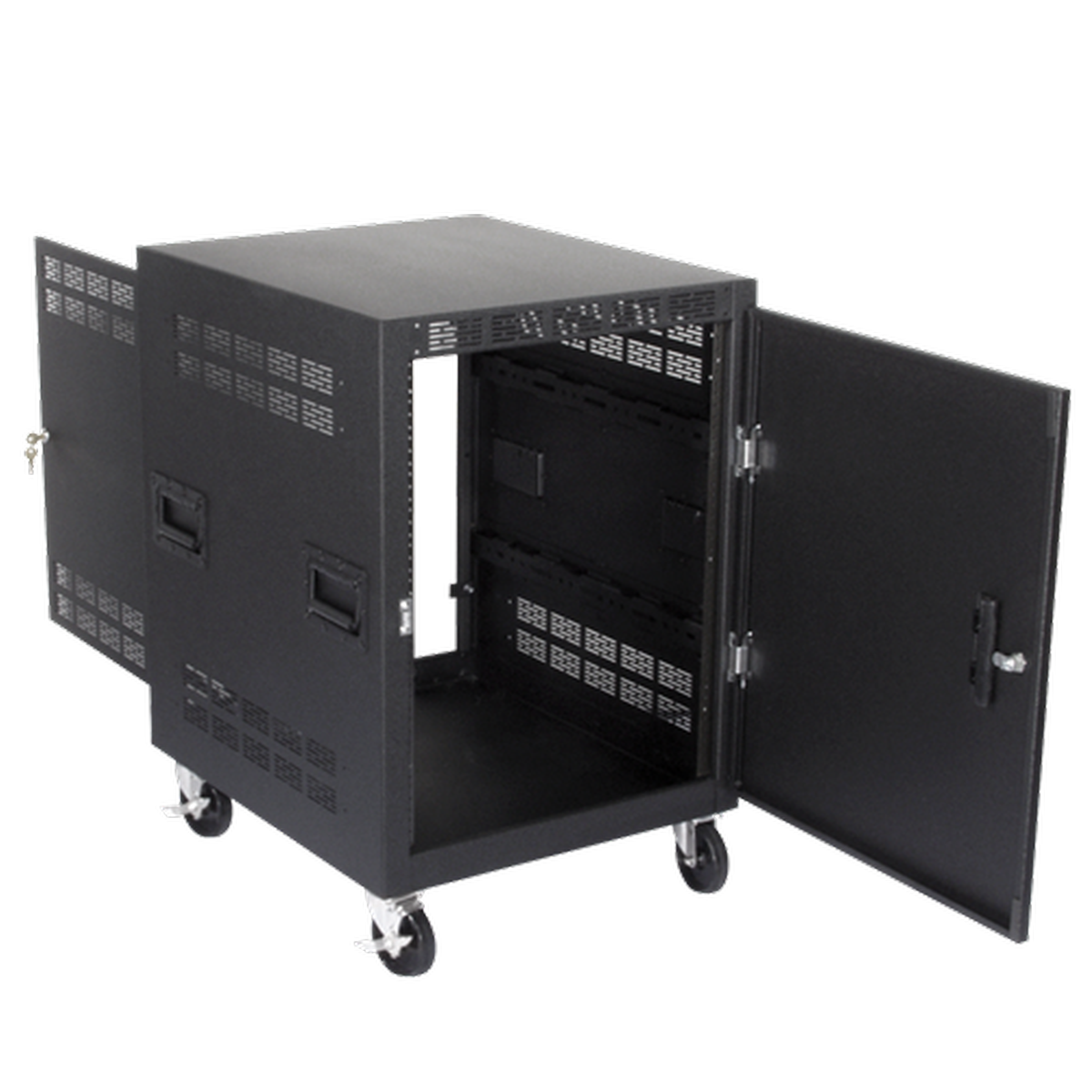

The Atlas Sound RX14-30SFD is a rolling 14RU metal rack with both front and rear locking doors.  The sides have handles so it can even be picked up and moved wherever you need your A/V equipment.  The cabinet is made of high quality and heavy duty thick 16 gauge material with heavy duty casters that have a total weight capacity of 700 lbs.

The rack is 30" deep and includes vented and removable locking doors with left or right hinges, as well as vented top-front and top-rear flanges. The front door is 1" deep to provide clearance for equipment knobs and handles which protrude up to 1 1/2" from the front of the rail.  Included is one pair of adjustable, 11-Gauge front-to-rear mounting rails for additional support if needed.

Specifications

• Mounting Rail Supports with Slotted Cut-Outs for Vertical Wire Management
• Perforated Front and Rear Top Flanges, Sides and Rear Door Provide Ventilation and Dissipation of Equipment-Generated Heat
• Removable Front and Rear Doors (Right or Left-Hand Hinging) are Identically Keyed for Security and Convenience
• Rubber-Padded Steel Grip "Road Handles" (2 Per Side)
• Standard Rack Includes Base, Top Panel, Side Panels, Casters, Front and Rear Doors
• Three, Wire Isolation Holes Located on Bottom of Rear Panel for External Wire Access
• Welded Frame for Long-Lasting Durability
• Dimensions: 33 9/16"H x 22 5/16"W x 30"D
• Usable Depth: 28.5"
• Warranty: 3 years

Downloads

• AtlasIED RX14-30SFD Specifications (PDF)
