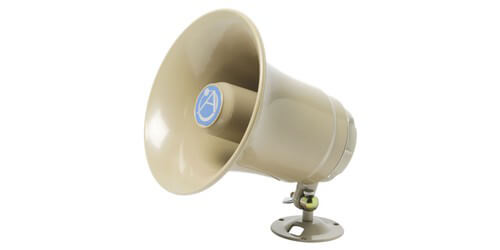

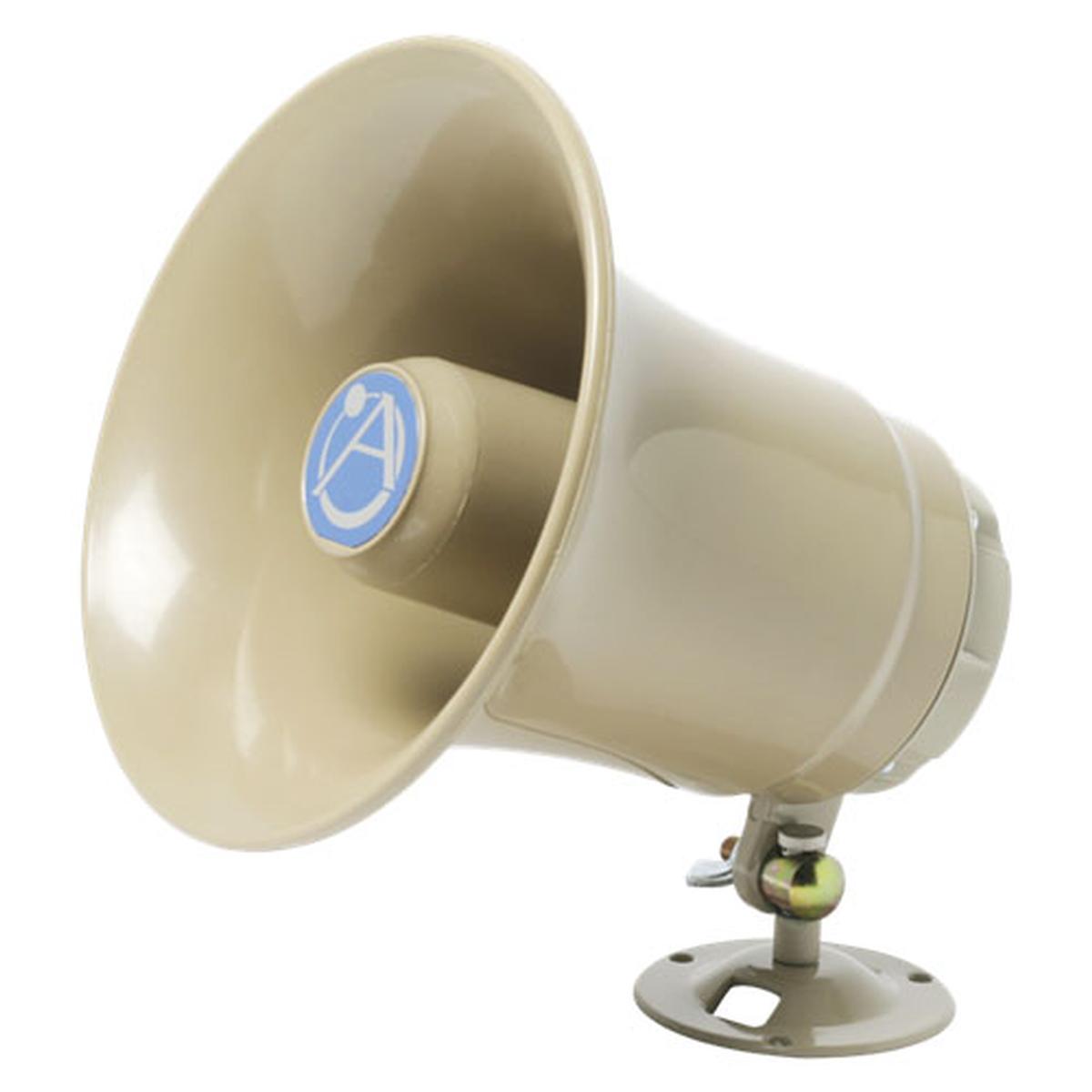

AtlasIED SC-15
Weatherproof 15W Paging Horn 8 Ohms
- Depth 60 15/16"
- Diameter 6 1/4"
- Shipping Weight 3.00 lbs
- Frequency Response 600 - 6,000 Hz (+5dB)
-Maciej Z.
Description
SC-15 Compact High Efficiency Paging Horn 15W @ 8 by Atlas Sound. SC Series double re-entrant acoustic path loudspeakers are low-cost, weatherproof units which reproduce voice and signal communication with high intelligibility. Models include a built-in 15-watt compression driver with 8 or 45-ohm impedance. Model SC-15-45 is a 45-ohm unit for intercom uses and Model SC-15 is an 8 ohm version for multi-purpose installations. All SC Series loudspeakers are equipped with a high impact molded plastic bell, metal mounting bracket and will an accommodate optional 70.7/25-volt transformer. They also feature a swivel base with nut assembly for easy-to-adjust horizontal and vertical positioning. Termination is via a 12" connecting cable. Finish is light beige epoxy.
Specifications
- Impedance 8
- Dispersion 95
- 15 watts
- Sensitivity 103dB
