AtlasIED TSD-DA28
2x8 Balanced Line Distribution Amplifier
- Description: 2 x 8 Line Distribution Amplifier
- Chassis Color: Black
- Chassis Material: Aluminum
- Inputs
-Maciej Z.
Description

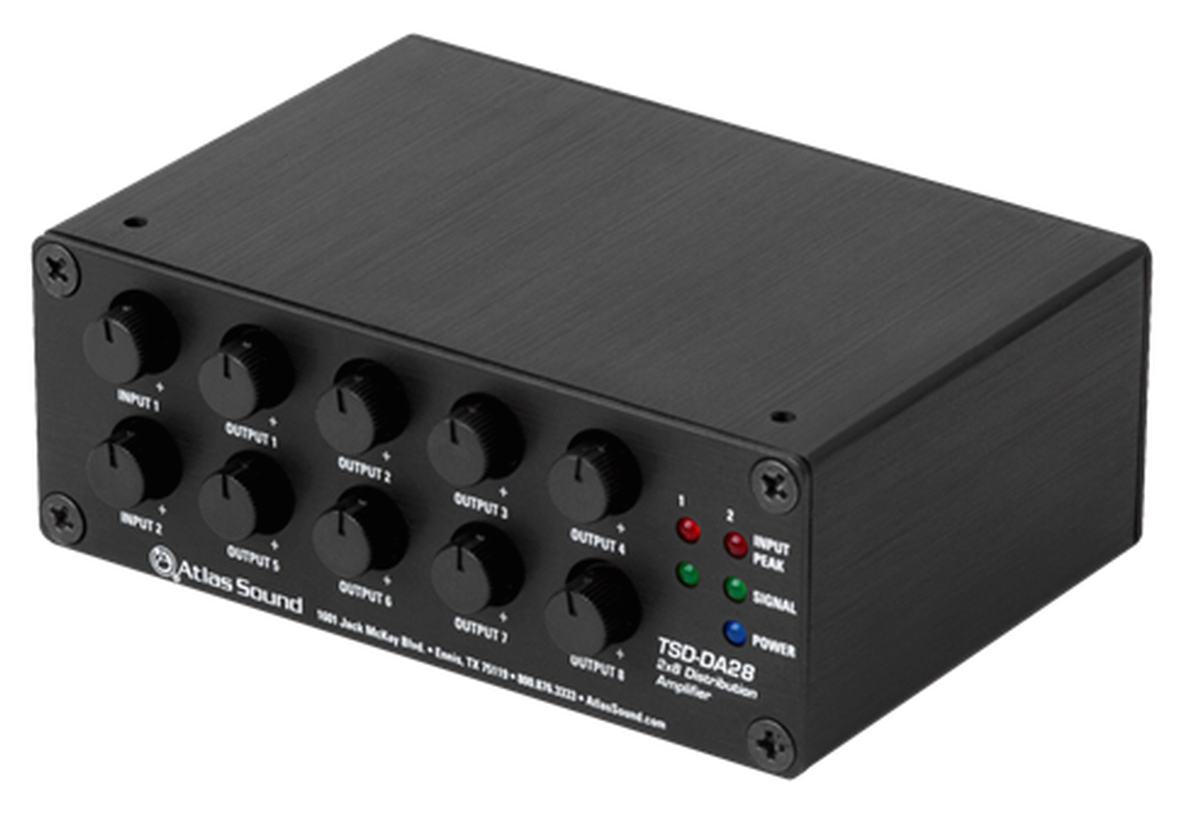

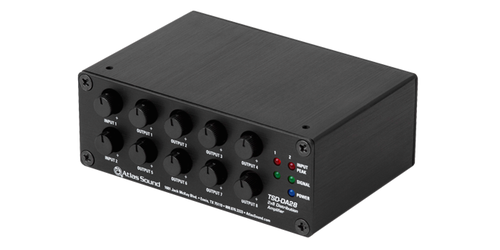

Atlas Sound introduces the TSD-DA28 is a 2x8 distribution amplifier. It distributes clean, strong signal locally or to remote locations. This high-quality distribution amp distributes two independent, balanced line level inputs to up to 8 isolated variable outputs. This distribution factor makes the TSD-DA28 ideal in houses of worship, sports bars, and industrial environments.
The TSD-DA28's isolated outputs ensure prevent cross-talk does not interfere with signal and resolves mismatched input impedance. All inputs and outputs on this distribution amplifier are Phoenix-style connectors for ease of installation. This distribution amplifier requires a separately purchased power supply, however, multiple TSD units can be powered via a single power supply. The TSD requires 80mA of power. Other key features of the TSD-DA28 include the following:
- Signal and peak indicator LEDs per channel
- High gain output for driving long balanced lines
- Separate Ground Connections

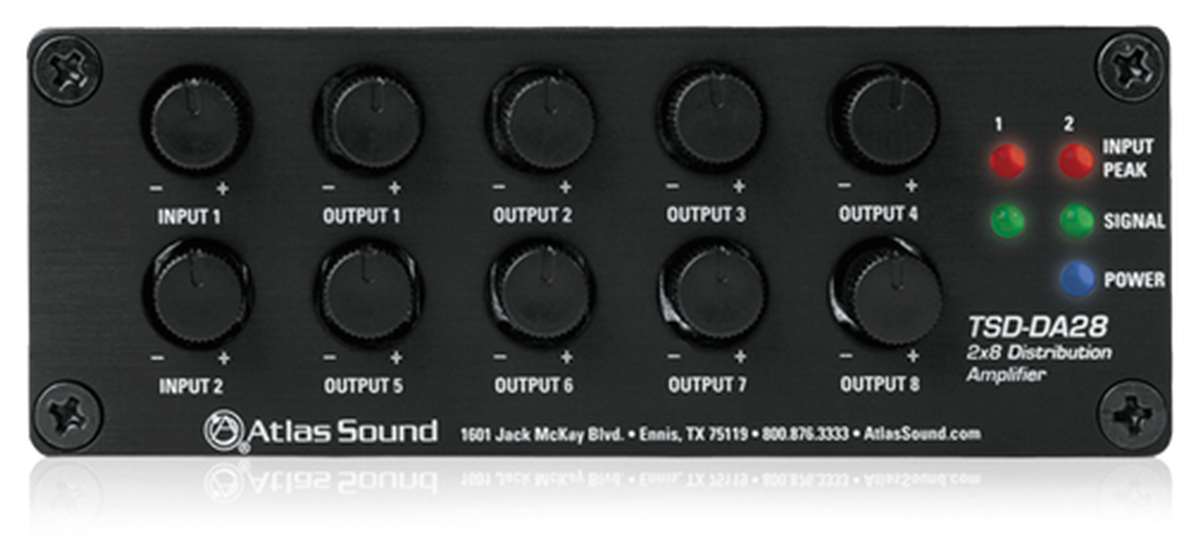

- Security covers included for all front panel controls
Specifications
- Type: Qty 2, Balanced Line Selectable

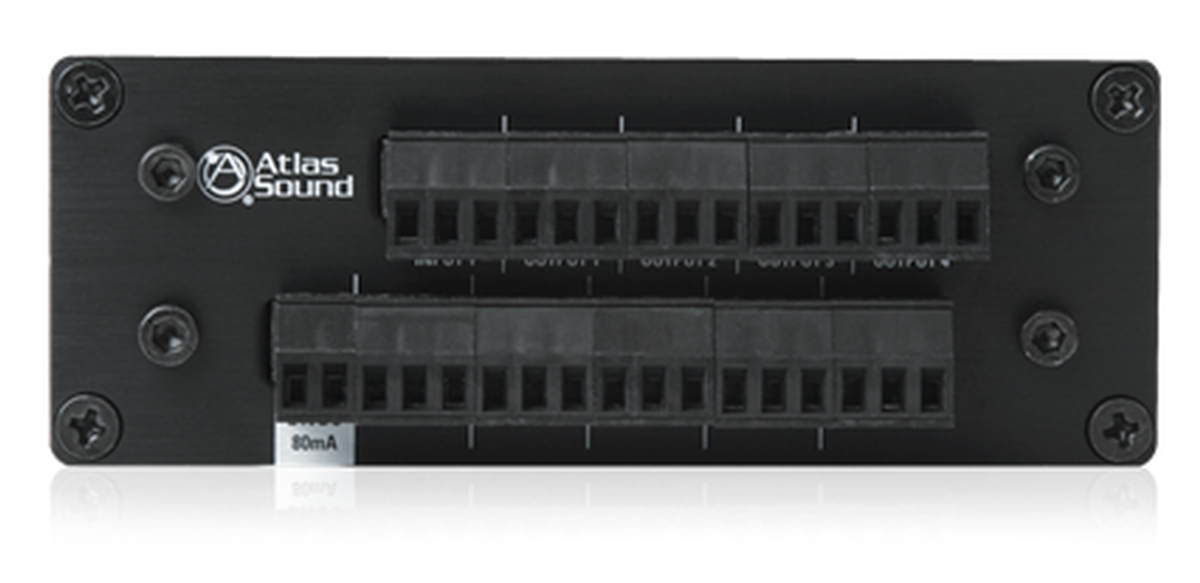

- Connection: Removable 3 Position Captive Screw 3.5mm Spacing
- Impedance: 10K Balanced, 5K Unbalanced
- Line Input Level: 1V (0dBV) Balanced = 2V (+6dBV) Balanced Output, Maximum Input 6V (15dBV)
- Outputs
- Type: Qty 8, Balanced Mic or Line Selectable
- Connection: Removable 3 Position Captive Screw 3.5mm Spacing
- Impedance: 300 Balanced, 150 Unbalanced
- Line Output Level: 1V (0dBV) In = 2V (+6dBV) Balanced, Maximum Ouput 6V (15dBV) Balanced
- Controls
- Input Level Control: Qty 2, Removable Knobs with Security Covers
- Output Level Control: Qty 8, Removable Knobs with Security Covers
- Indicators
- Input Signal: Green, 25mV On Threshold
- Input Peak: Red, -3dB Before Clip
- Power: Blue
- Electrical
- Frequency Response: 20Hz - 20kHz ( 1dB)
- THD: .06% & 1kHz
- Signal to Noise: 90dB
- Mounting
- Velcro: Industrial-Grade, Included
- Brackets: Qty 2, Included
- TSD-RMK: Optional 1 RU Rack Mount Panel (Supports 4 TSD Units)
- Cable Retainer: Qty 2, Included
- Power Requirements
- Voltage: 24VDC
- Power Consumption: 80mA
- Power Consumption: 1.92W
- Dimensions: 1.5" (39mm) x 4" (101mm) x 2.75"(70mm)
- Weight: 6oz, .165kg
- Accessories
- TSD 24VDC Power Supplies
- TSD-RMK 1 RU Rack Panel
- Safety and Certifications
- External Power Supply: cUL, CE, RoHS, TUV
- Warranty: 3 years
