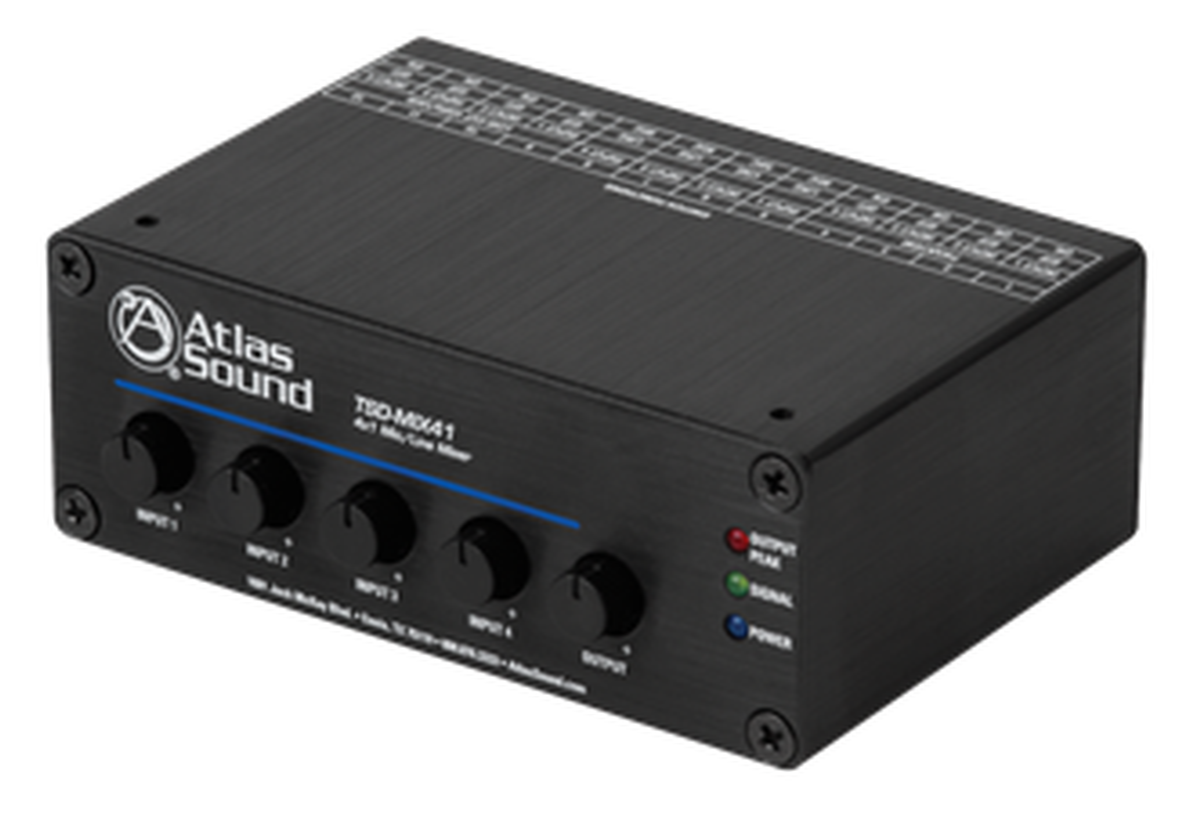

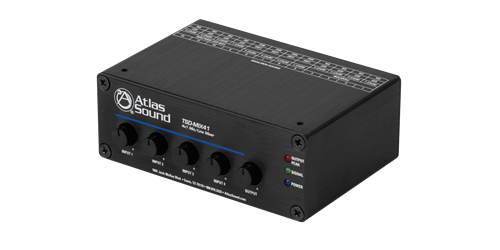

AtlasIED TSD-MIX41
4x2 Mic/Line Mixer

Description

Atlas Sound introduces the TSD-MIX41: a 4x1 mic/line mixer. The TSD-MIX41 is specially designed for environments in which multiple mic or line sources need to be sub-mixed or summed, making it an ideal fixture in musical applications, such as house of worship choirs, which require signals to be combined to a single mixer channel.

This mixer features 4 mic/balanced line inputs and 4 professional-grade microphone preamps. It is also fitted with an internal mic preamp to protect the sound quality and clarity while operating silently and discretely. The TSD-MIX41 features a 12dB/octave high-pass filter at 125Hz on each input. This prevents bass rumble and low-frequency feedback.

This mixer requires a separately purchased power supply, however, multiple TSD units can be powered via a single power supply. Other key features of the TSD-MIX41 include the following:

• Up to 50dB mic gain per input
• Balanced line output
• Input peak and signal indicator LEDs
• High gain output for driving long balanced lines
• Separate ground connections
• Removable Phoenix-style I/O connectors
• Security covers included for all front panel controls

Specifications

• Type: Qty 4, Balanced Mic or Line Selectable
• Connection: Removable 3 Position Captive Screw 3.5mm Spacing
• Impedance: 1.2KOhms Balanced, 600Ohms Unbalanced
• Phantom: 24VDC Defeatable
• Low Cut Filter: 125Hz/12dB Defeatable
• Line Input Level: 1V (0dBV) Balanced = 2V (+6dBV) Balanced Output, Maximum Input 6V (+15dBV)
• Mic Input Level: 46dB Gain, 10mV (-40dB) Balanced = 2V (+6dBV) Balanced Output, Maximum Input 40mV (-27dBV)
• Outputs
• Type: Qty 1, Balanced Line
• Connection: Removable 3 Position Captive Screw 3.5mm Spacing
• Impedance: 300 Ohms Balanced, 150 Ohms Unbalanced
• Line Output Level: 1V (0dBV) In = 2V (+6dBV), Maximum Output 6V (15dBV)

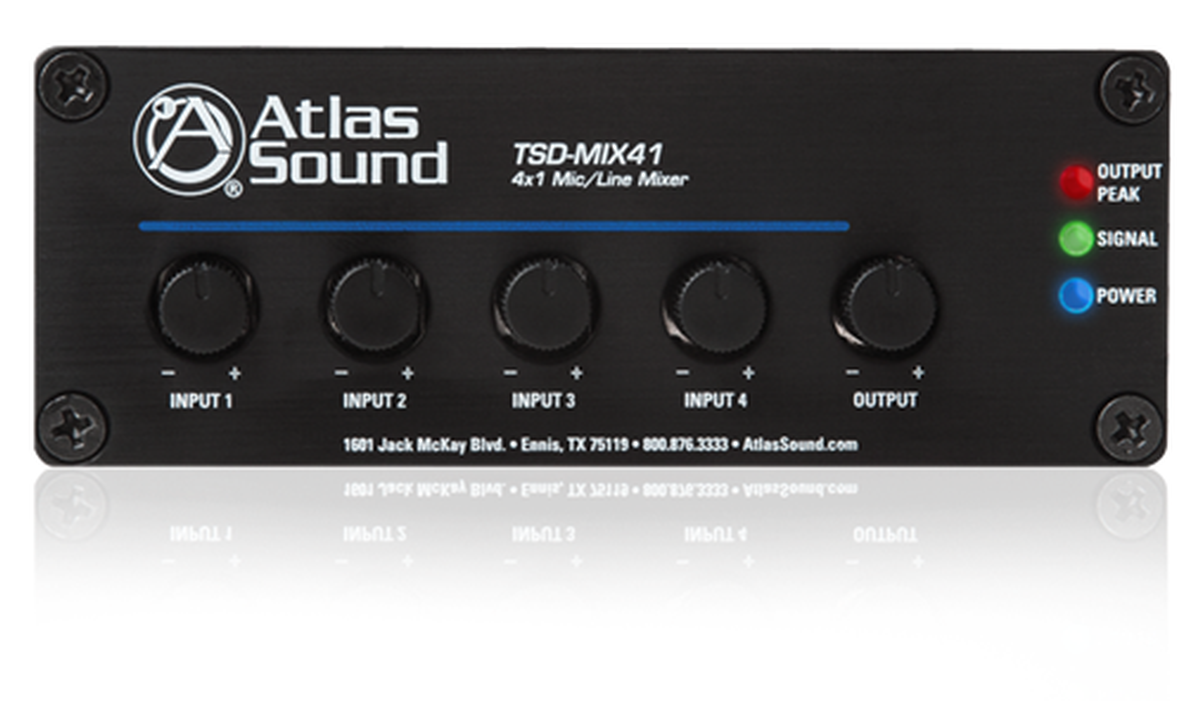

• Controls
• Input Level Control: Qty 4, Removable Knobs with Security Covers
• Output Level Control: Qty 1, Removable Knob with Security Cover

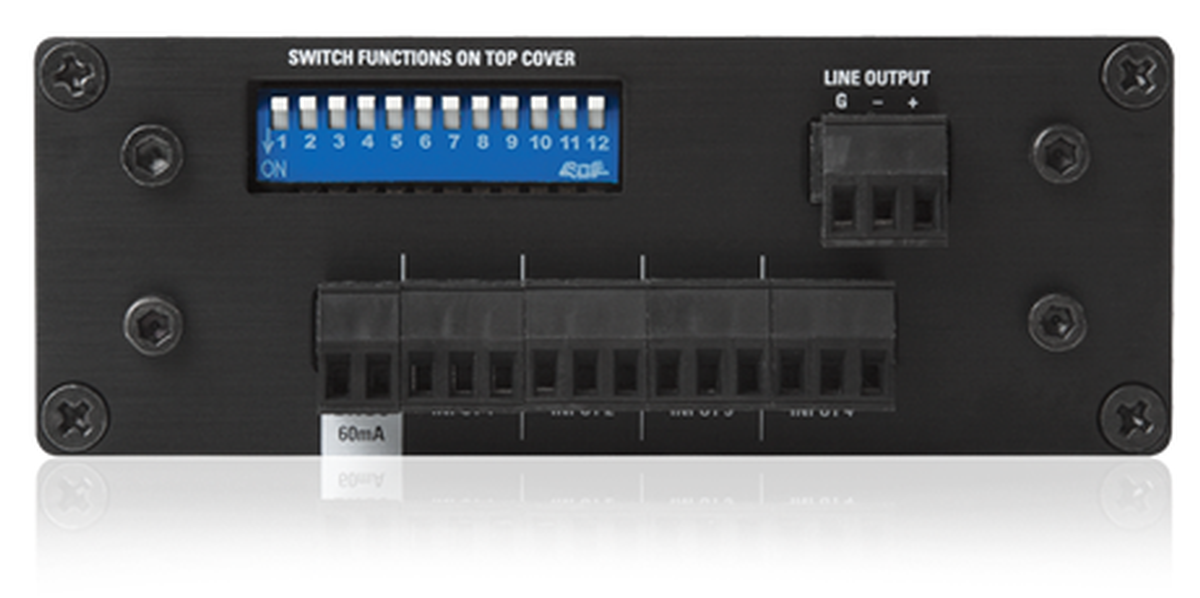

• Dip Switch Function: Phantom power 24VDC / Input Mic/Line Select, Qty 4 / Input 125Hz/12dB High-Pass Filter, Qty 4
• Indicators
• Output Signal: Green, 25mV ON Threshold, Qty 1
• Output Peak: Red, -3dB Before Clip, Qty 1
• Power: Blue, Qty 1
• Electrical
• Frequency Response: 20Hz - 20kHz ( 1dB)
• THD: .06% @ 1kHz
• Signal to Noise: Line to Line: 85dBV / Mic to Line: 78dBV
• Mounting
• Velcro: Industrial-Grade, Included
• Brackets: Qty 2, Included
• TSD-RMK: Optional 1 RU Rack Mount Panel (Supports up to 4 TSD Units)
• Cable Retainer: Qty 2, Included
• Power
• Voltage: 24VDC
• Power Consumption Current: 60mA
• Power Consumption VA Watts: 1.4W
• Dimensions: 1.5" (39mm) x 4" (101mm) x 2.5" (70mm)
• Weight: 13.4oz, .3kg
• Accessories
• TSD 24VDC: Power Supply
• TSD-RMK: 1 RU Rack Panel
• Safety and Certifications
• External Power Supply: cUL, CE, RoHS, TUV
• Warranty: 3 years
