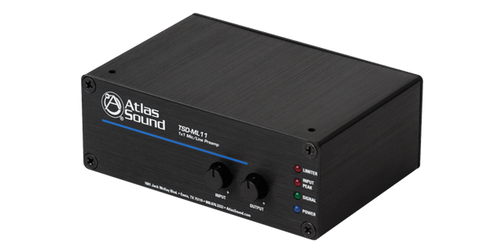

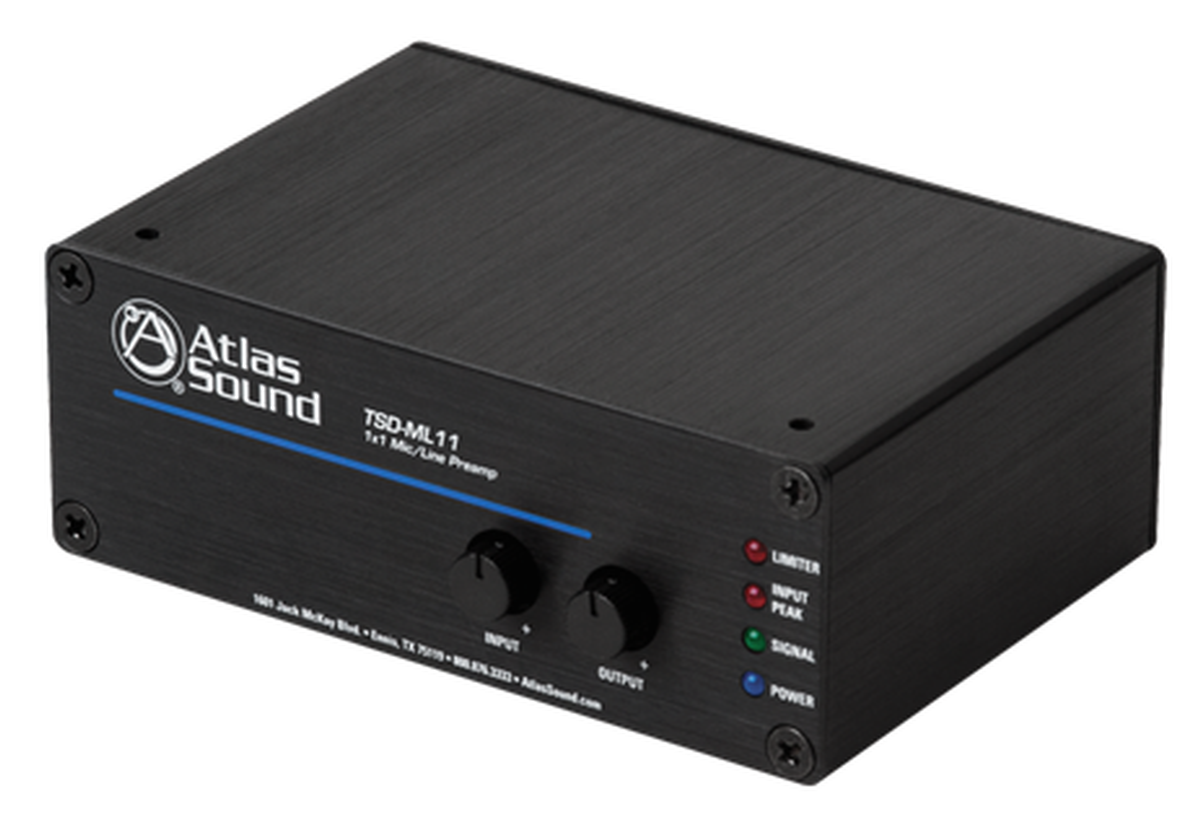

    AtlasIED TSD-ML11
    1x1 Mic/Line Pre-Amplifier

    Part #: TSD-ML11
    Satisfaction Guaranteed!
    MSRP: $308.99
    Our Price: $249.99
    Free Shipping* | 30 Day Returns* | Authorized Dealer
    Coupon
    Click for $5 Off!
    Top TSD-ML11 Specifications
    • Description: 1 x 1 Mic/Line Preamp
    • Chassis Color: Black
    • Chassis Material: Aluminum
    • Inputs
    "Great product. Came as promised. Top quality."
    Contact a product specialist!
    Proudly supporting our customers since 2008

    Description

    Atlas Sound's mic/line pre-amplifier, the TSD-ML11, is a low-noise pre-amp that can be used in AV systems that require push-to-talk microphone functions. This pre-amp features phantom power for condenser microphones. The TSD-ML11 also features 4 EQ cut filters that work to eliminate feedback while controlling voice shaping.

    This pre-amp features a variable microphone pre-amp, which works to eliminate noise and ensure quiet, smooth operation. This variable mic pre-amp also works to limit tonality changes. It has a 12dB @ 125Hz high-pass filter on each microphone to produce a crisp sound that stays within the voice sound spectrum. The TSD-ML11 also has an output limiter/compressor that also works to eliminate sound distortions and clipping. Atlas Sound's technology enables microphones connected to the system with push-to-talk capabilities via Mic Mute and Mic On controls. The TSD-ML11 does not ship with a power supply. It requires 100mA of power. Other key features of this pre-amp include the following:

    • 4 pre-set frequency notch filters for tone and feedback control
    • Input signal and peak indicators
    • Separate ground connections
    • High gain output for long-distance signal transmission

    Specifications

    • Type: Qty 1, Balanced Mic or Line Selectable
    • Connection: Removable 3 Position Captive Screw 3.5mm Spacing
    • Impedance: 1.2K Balanced, 600 Unbalanced
    • Phantom: 24VDC Defeatable
    • Low Cut Filter: 125Hz/12dB Defeatable
    • Line Input Level: 1V (0dBV) Balanced 2V (+6dBV) Balanced Output, Maximum Input 8V (+15dBV)
    • Mic Input Level: 46dB Gain 10mV (-40dB) Balanced = 2V (+6dBV) Balanced Output, Maximum Input 40mV (-27dBV)
    • Outputs
    • Type: Qty 1, Balanced Mic or Line Selectable
    • Connection: Removable 3 Position Captive Screw 3.5mm Spacing
    • Impedance: 300 Balanced, 150 Unbalanced
    • Line Output Level: 1V (0dBV) In = 2V (+6dBV), Maximum Output 6V (15dBV)
    • Mic Output Level: 10mV (-40dBV) In = 80mV (-21dBV), Maximum Output 300mV (-10dBV)

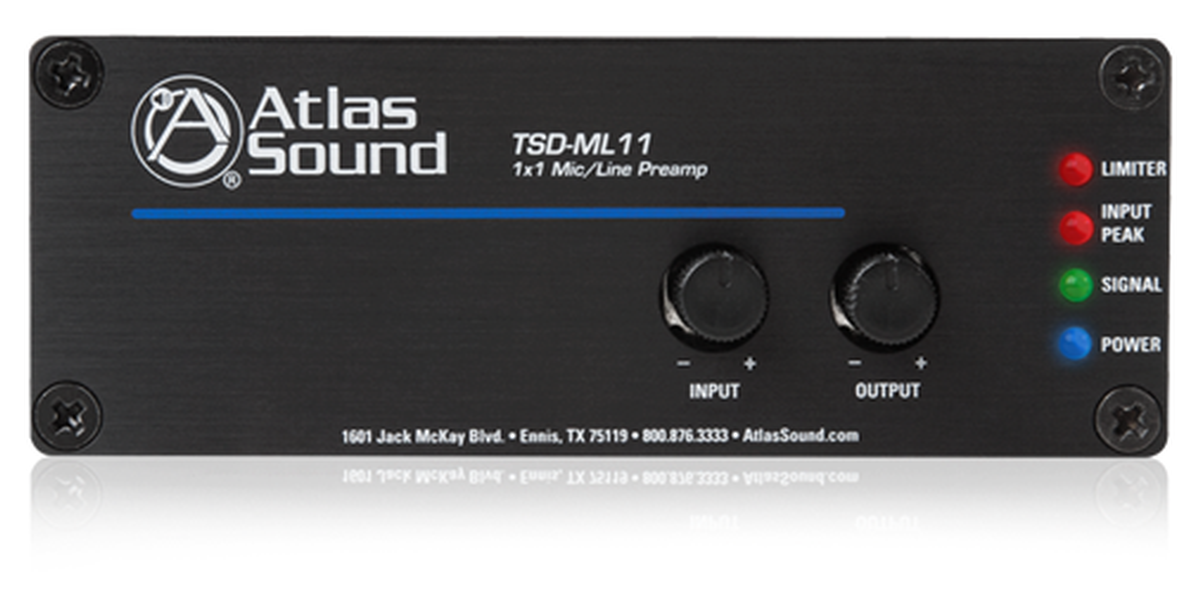

    • Controls
    • Input Level Control: Qty 1, Removable Knob with Security Cover
    • Output Level Control: Qty 1, Removable Knob with Security Cover
    • Output Limiter: Threshold Adjust From +18dB - No Output. Hard Knee Limit
    • Mic Mute: Contact Closure, Removable 2 Position Captive Screw 3.5mm Spacing
    • Mic On: Contact Closure, Removable 2 Position Captive Screw 3.5mm Spacing

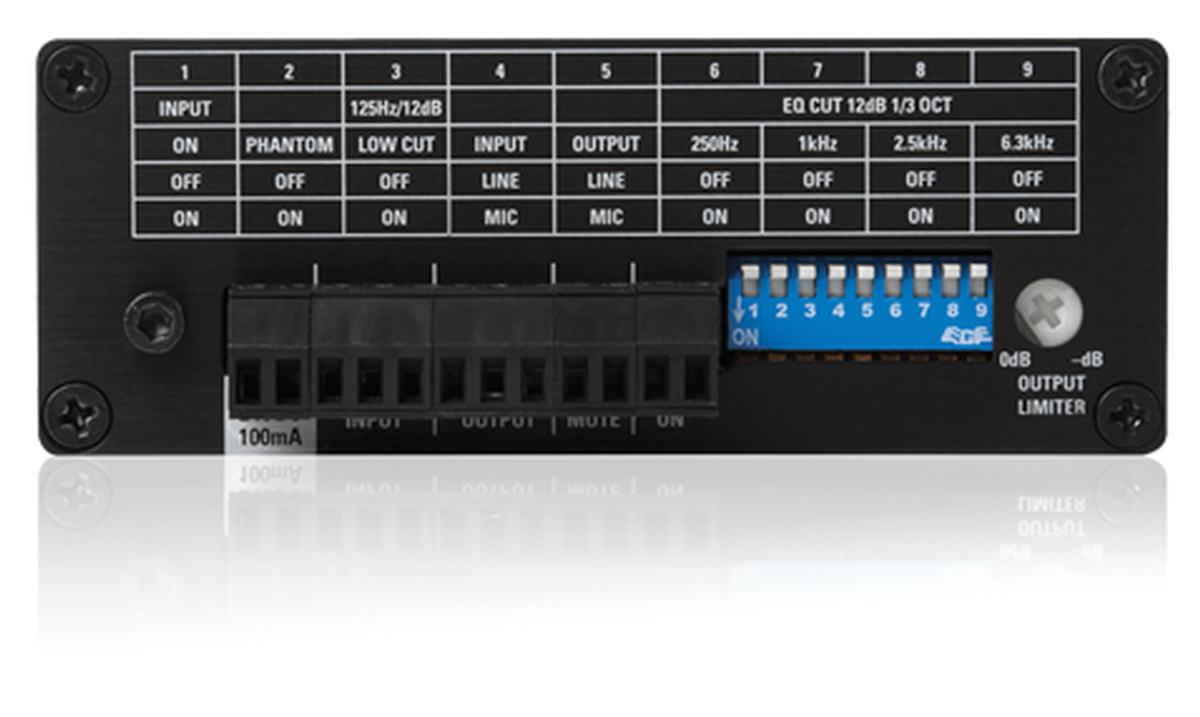

    • Dip Switch Function: Input 1 On/Off / Phantom Power 24VDC / Input Mic/Line Select / Input 125Hz/12dB / High Pass Filter / Output Qty 1, Mic/Line Select / EQ, 12dB Cut Filters 250Hz, 1KHz, 2.5KHz, 6.3KHz
    • Indicators
    • Input Signal: Green, 25mV On Threshold
    • Input Peak: Red, -3dB Before Clip
    • Limiter: Red, Output Limiter Activation
    • Power: Blue
    • Electrical
    • Frequency Response: 20Hz - 20kHz ( 1dB)
    • THD .06% and 1kHz
    • Output Limiter: Threshold Adjust 50mV to No Limiter
    • Signal to Noise: Line to Line: 85dBV / Mic to Line: 70dBV / Line to Mic: 55dBV / Mic to Mic: 55dBV
    • Mounting
    • Velcro: Industrial-Grade, Included
    • Brackets: Qty 2, Included
    • TSD-RMK: Optional 1 RU Rack Mount Panel (Supports 4 TSD Units)
    • Cable Retainer: Qty 2, Included
    • Power Requirements
    • Voltage: 24VDC
    • Power Consumption: 100mA
    • Power Consumption: 2.4W
    • Dimensions: 1.5" (39mm) x 4" (101mm) x 2.75" (70mm)
    • Weight: 6oz, .165kg
    • Accessories
    • TSD 24VDC: Power Supplies
    • TSD-RMK: 1 RU Rack Panel
    • Safety and Certifications
    • External Power Supply: cUL, CE, RoHS, TUV
    • Warranty: 3 years
