AtlasIED TSD-PA10VG
10W Mono 4Ohm/25V/70.7V/100V Power Amplifier

Description

Atlas Sound's TSD-PA10VG is a mono amplifier for speaker systems up to 4Ohms. This device can be used with up to 8 25/70/100V ceiling speakers. The TSD-PA10VG is also ideal for sound-masking applications. It can drive up to 17 masking speakers tapped at .5W each on a 70.7-volt line.

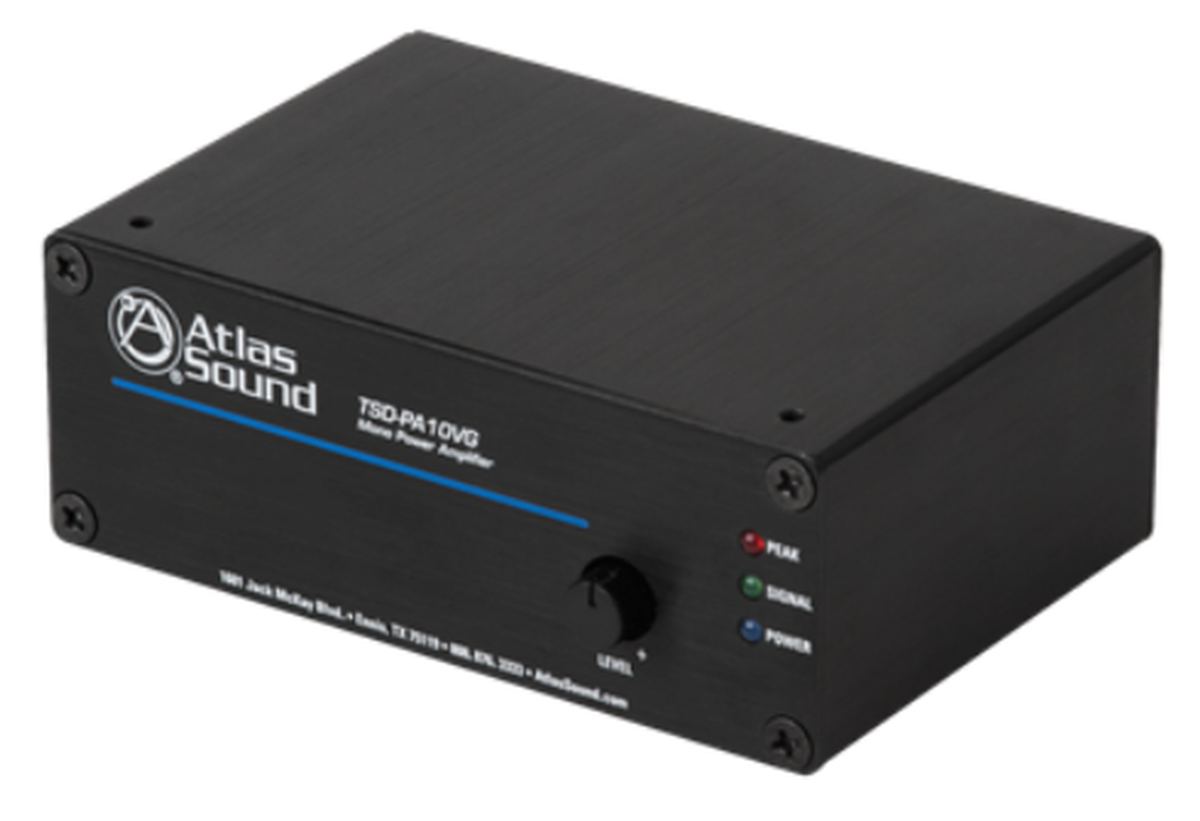

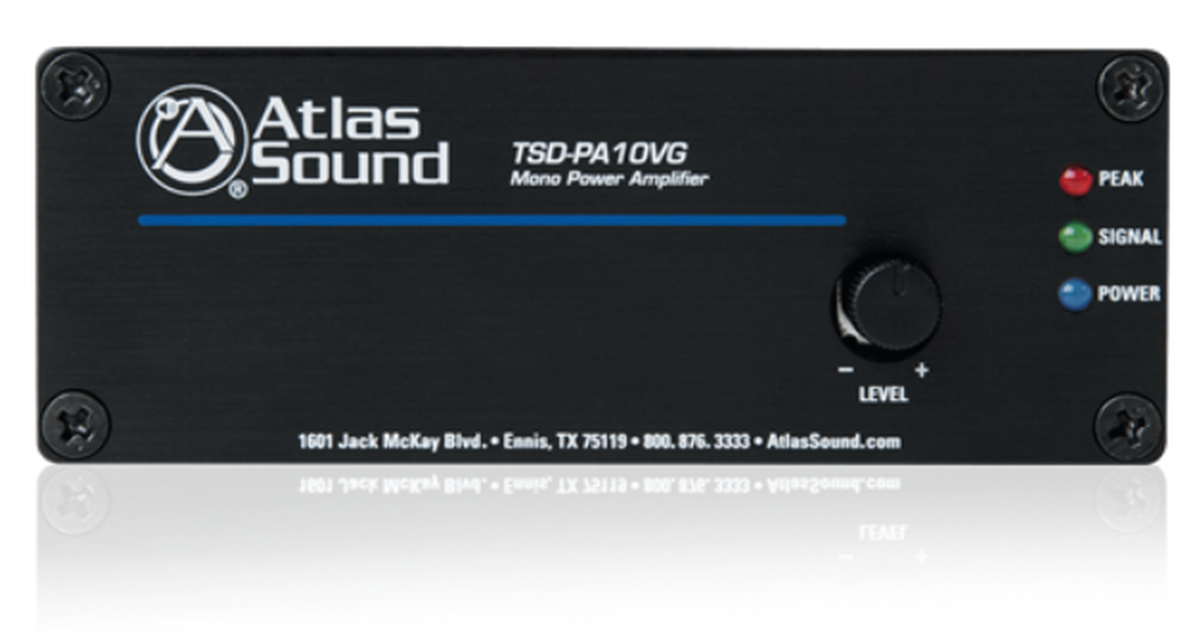

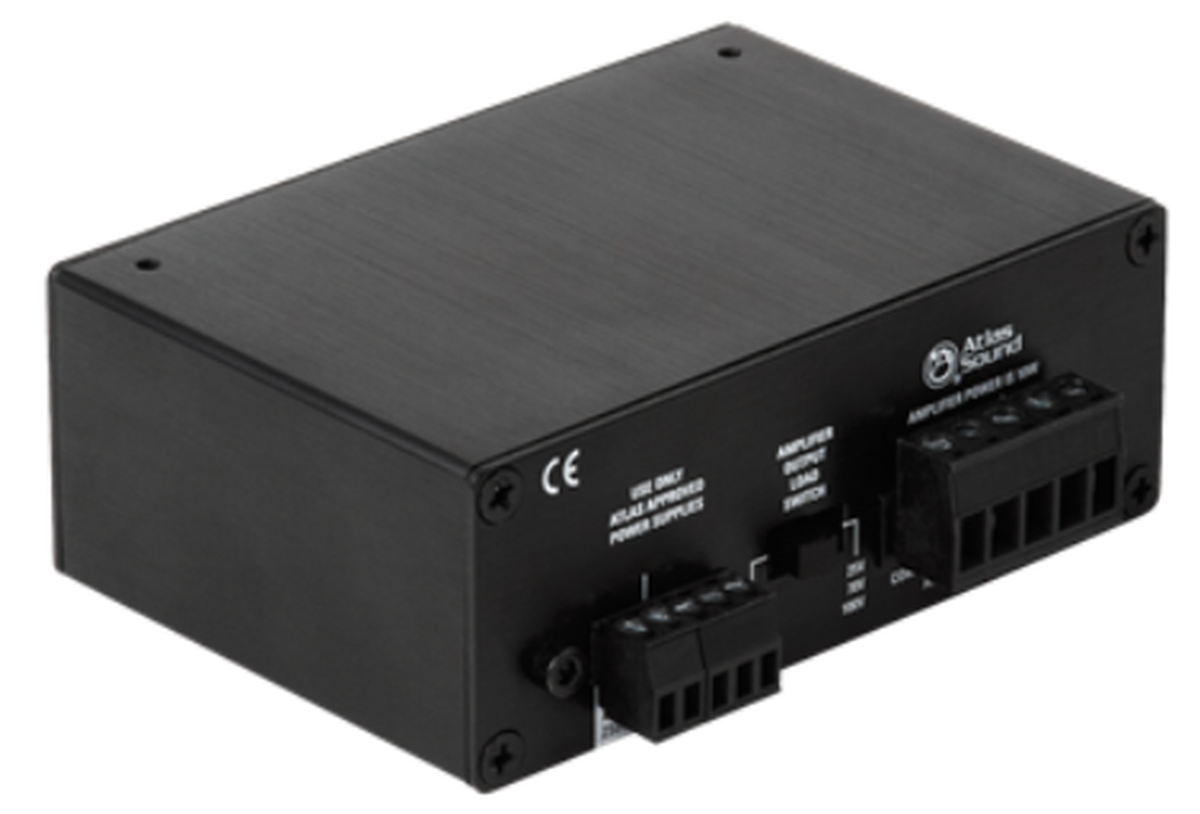

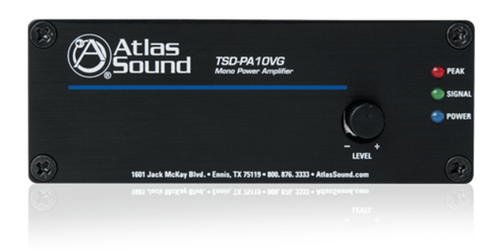

The TSD-PA10VG is ideal in projector amplifier applications as well as zone amplifiers and paging systems. It features 1 balanced input and removable Phoenix-style connectors on both input and output. The front knob features a potentiometer for gain controlling the output. Ideal applications for this device include houses of worship, foyers, hallways, courtrooms, schools, and industrial facilities.

Specifications

• Inputs
• Type: Qty 1, Balanced Line
• Connection: Removable 3 Position Captive Screw 3.5mm Spacing
• Impedance: 10KOhms Balanced, 5KOhms Unbalanced
• Line Input Level: 500mV (-6dBV) Balanced
• Outputs

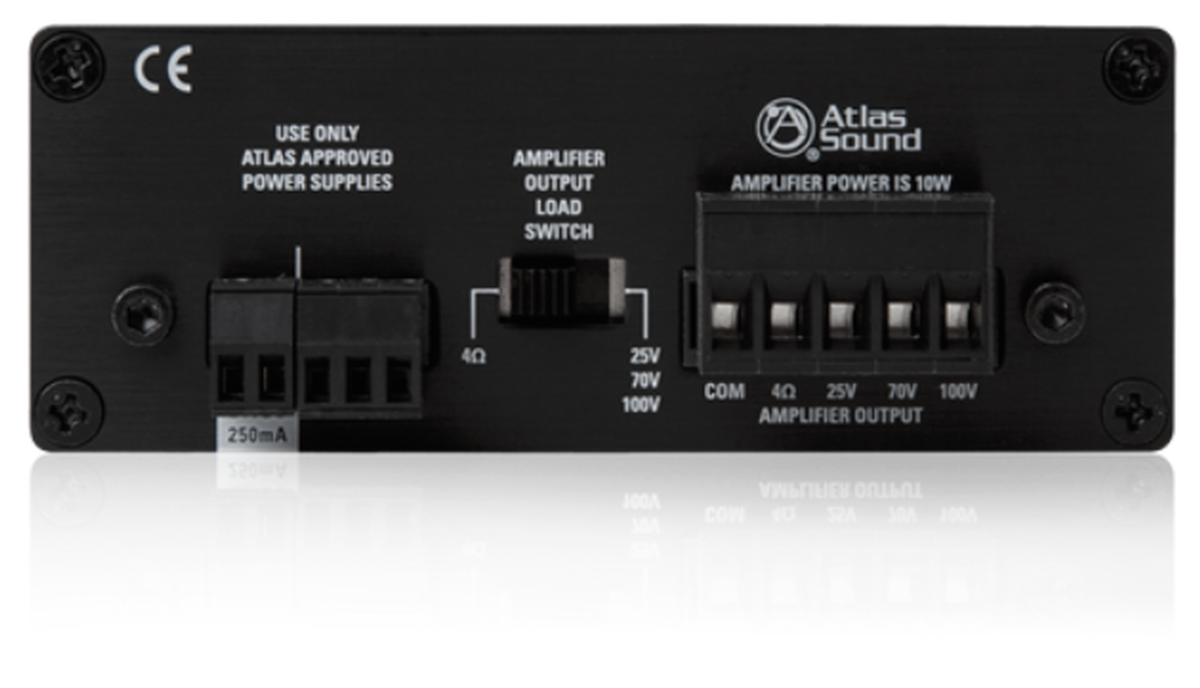

• Output Taps: 4Ohms, 25V, 70V, 100V
• Type: Speaker Output
• Connection: Removable 5 Position Captive Screw 5mm Spacing
• Wire Size: 14 Gauge Max
• Controls
• Level Control: Qty 1, Removable Knob with Security Cover
• Indicators
• Input Signal: Green, 25mV On Threshold
• Peak: Red, -3dB Before Clip
• Power: Blue
• Electrical
• Frequency Response: 40Hz - 20kHz ( 3dB)
• THD: 05% & 1kHz
• Signal to Noise: 78dB
• Power Requirements
• Load Taps: 4Ohms, 25V = 31Ohms Load, 70V = 245Ohms Load, 100V = 500Ohms Load
• Voltage: 24VDC 1000mA
• Idle Current: 60mA
• Idle VA Watts: 2.8W
• Average Current: 110mA
• Average VA Watts: 6.7W
• Max Current: 500mA
• Max VA Watts 14W Dimensions: 1.5" (39mm) x 4" (101mm) x 5.2" (132mm)
• Weight: 6oz, .165kg
• Accessories
• Velcro: Industrial-Grade
• Multi-Mount Plate Qty 1, Includes Two (2) M3 x 4mm Screws
• Cable Retainers: Qty 2
• Level Control Knob: Qty 1
• Level Control Security Cover: Qty 1
• Safety and Certifications
• Power Supply Sold separately: cUL, CE, RoHS, TUV
• Warranty: 3 years
