AtlasIED TSD-PA122G
12W x2 @ 4-Ohm, 2-Channel Power Amplifier

Description

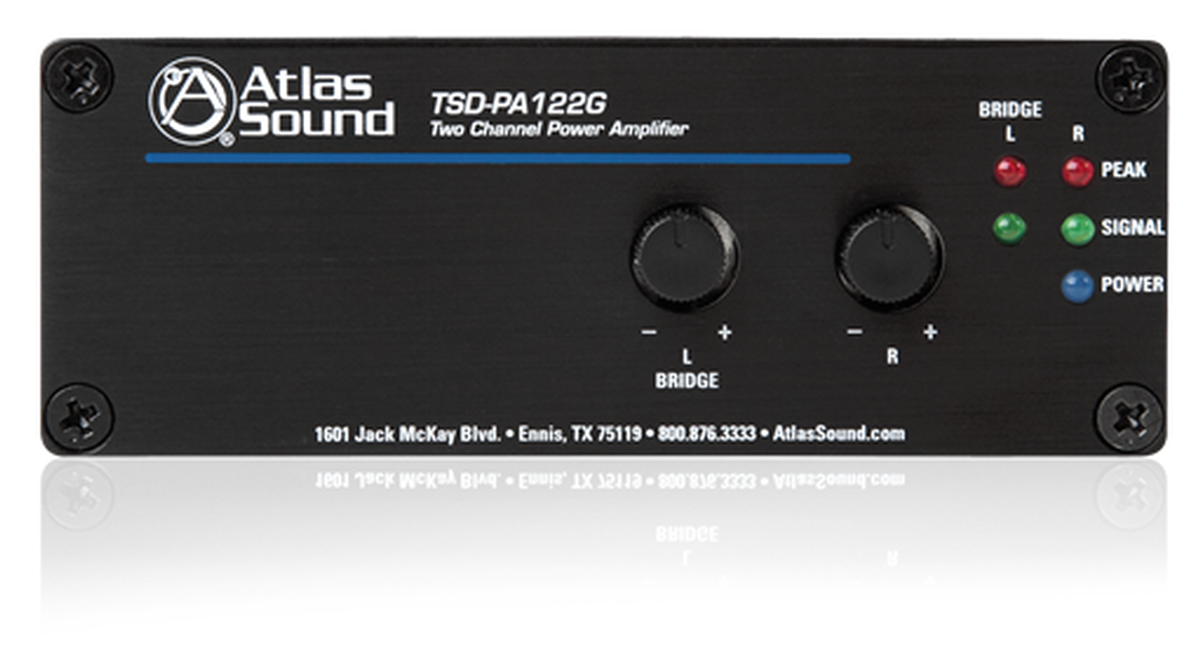

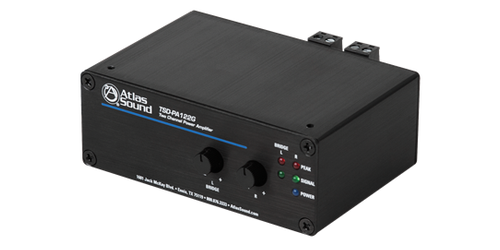

Atlas Sound's TSD-PA122G is a power amplifier that can power up to 4 8Ω speakers. Each of the 2 channels have an output of 12W at 4Ω, or 24W when in bridged mono mode at 8Ω. The front panel of this unit features knob controls for the left and right bridged outputs.The TSD-PA122G has a balanced stereo Phoenix-style and unbalanced RCA connectors.

This unit does not come with a power supply. Power supply must be purchased separately. This unit requires 500mA at 8Ω and 1000mA at 8Ω. These requirements require that either the TSD-PS24V500MA or TSD24V2500MA power supplies from Atlas Sound.

Key features of this power amplifier include the following:

• 12W x 2 @ 4Ω
• 24W Bridged @ 8Ω
• Two RCA Balanced Inputs
• Removable Level Controls
• Input Peak Indicator LEDs
• Input Signal Indicator LEDs

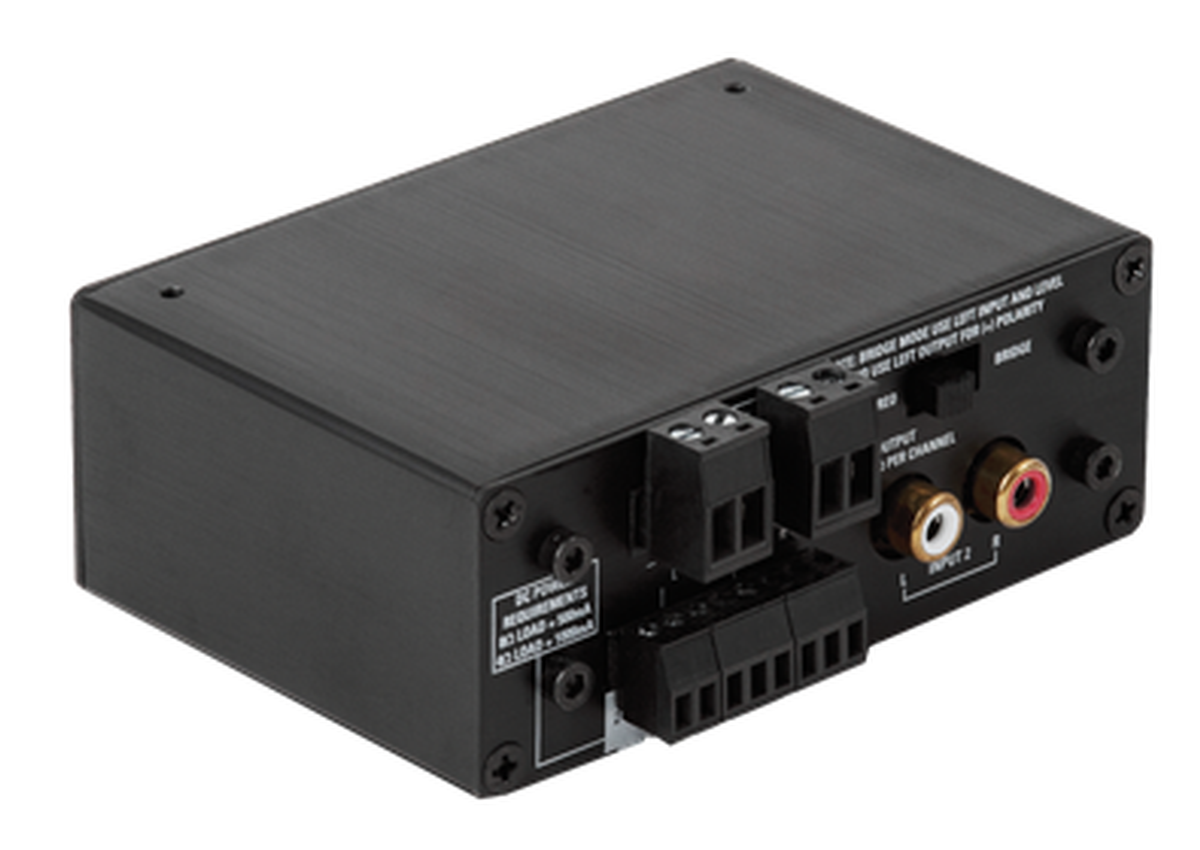

• Removable Phoenix Style I/O Connectors
• Separate Ground Connections

Specifications

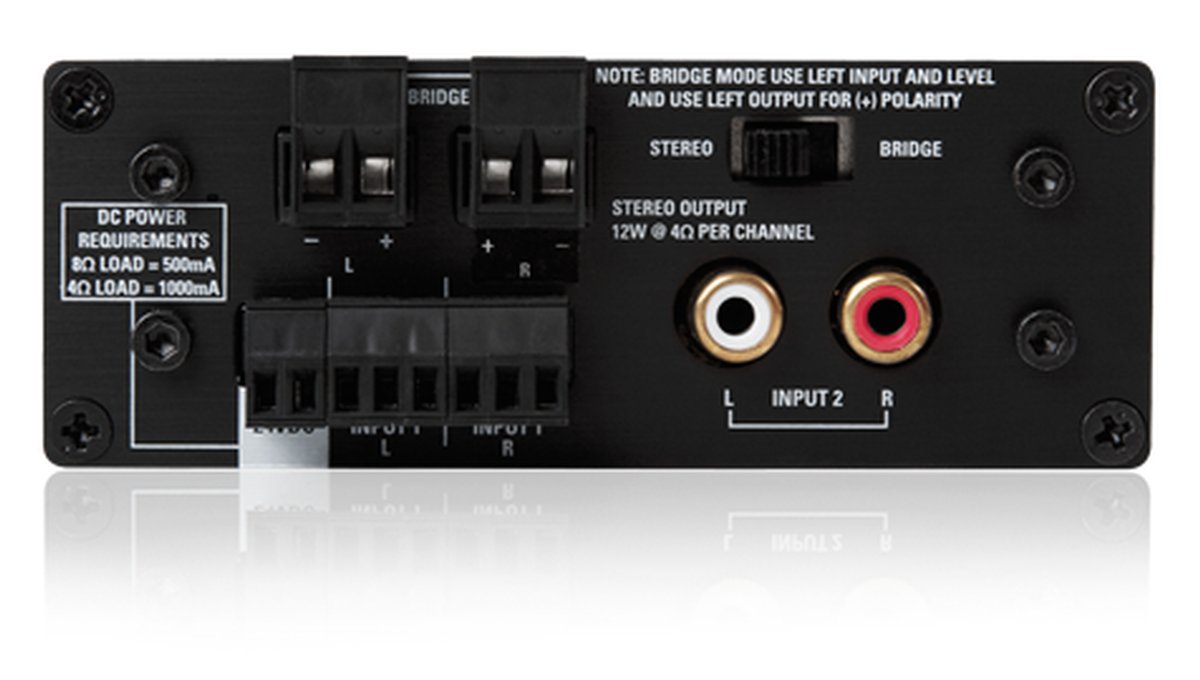

• Inputs
• Type: Qty 1, Unbalanced
• Connection: RCA Left and Right
• Impedance: 10K
• Input Level: 316mV (-10dBV)
• Type: Qty2, Balanced Line
• Connection: Removable 3 Position Captive Screw 3.5mm Spacing
• Impedance: 10K Balanced, 5K Unbalanced
• Line Input Level: 500mV (-6dBV) Balanced
• Outputs
• Type: Qty 2, Speaker Output
• Connection: Removable 2 Position Captive Screw 5mm Spacing

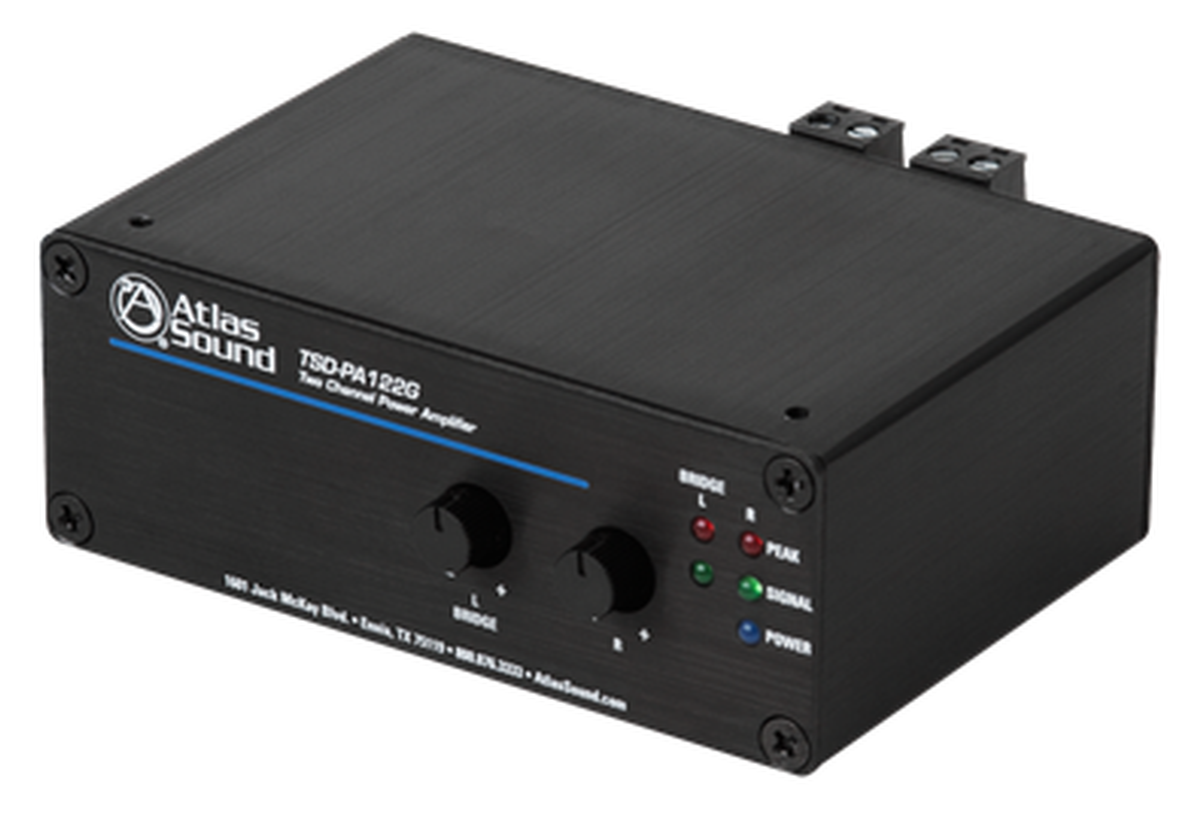

• Controls
• Level Control: Qty 2, Removable Knobs with Security Covers
• Operation Mode Switch: Stereo or Bridge
• Indicators
• Input Signal: Green, 25mV On Threshold, Qty 2
• Peak: Red, -3dB Before Clip, Qty 2
• Power: Blue
• Electrical
• Frequency Response: 20Hz - 20kHz ( 3dB)
• THD: 1% & 1kHz
• Signal to Noise: 80dBV
• Mounting
• Velcro: Industrial Grade, Included
• Brackets: Qty 2, Included
• TSD-RMK: Optional 1 RU Rack Mount Panel (Supports 4 TSD Units)
• Cable Retainer: Qty 2, Included
• Power Requirements
• Voltage: 8Ohm - 24VDC 500mA / 4Ohm - 24VDC 1000mA
• Idle Current: 8Ohm - 50mA / 4Ohm - 50mA
• Idle VA Watts: 8Ohm - 1.2W / 4Ohm 1.2W
• Average Current: 8Ohm - 160mA / 4Ohm - 320mA
• Average VA Watts: 8Ohm - 11W / 4Ohm 22W
• Max Current: 8Ohm - 490mA / 4Ohm 980mA
• Max VA Watts: 8Ohm 36W / 4Ohm 72W
• Dimensions: 1.5" (39mm) x 4" (101mm) x 2.75" (70mm)
• Weight: 6oz, .165kg
• Accessories
• TSD 24VDC: Power Supplies
• TSD-RMK: 1 RU Rack Panel
• Safety and Certifications
• External Power Supply: cUL, CE, RoHS, TUV
• Warranty: 3 years
