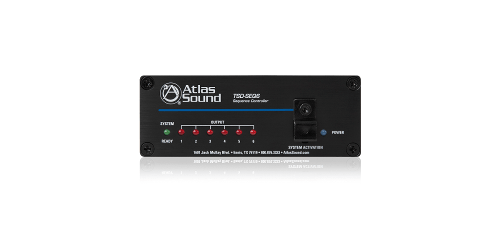

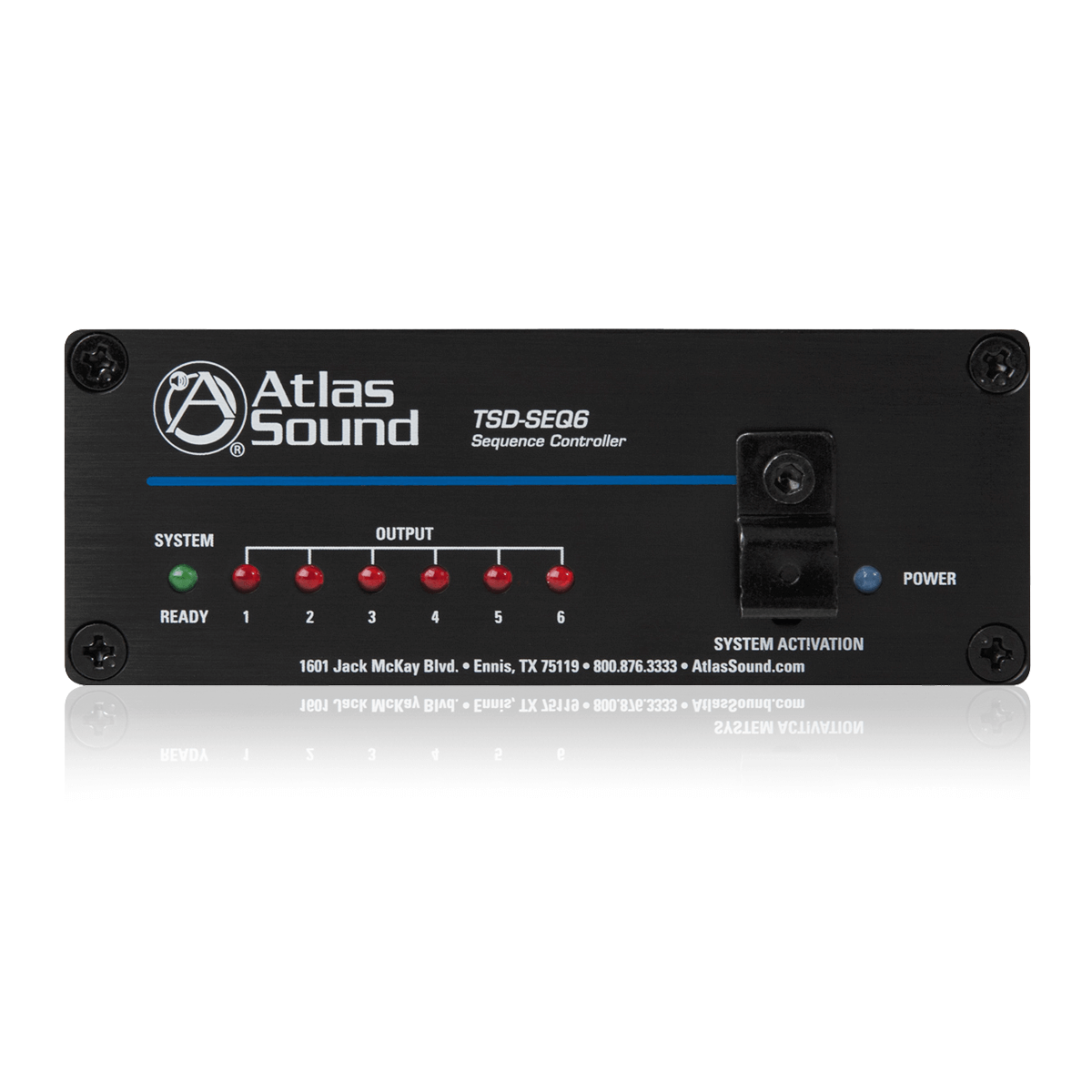

AtlasIED TSD-SEQ6
AC Sequence Controller
- Chassis Construction: Black Aluminum
- Power Consumption: 100mA
- Sequence Status Indicator: Green, Qty 1
- Output Status Indicator: Red, Qty 6
-Lynn Y.
Description
The AtlasIED TSD-SEQ6 Sequencer Controller features 6 outputs that are configurable individually to be either a 24VDC output or Hard Switch Contact Closure (CC). There are two separate output sequence time delay trimmers ranging from 1 second to 10 minutes. Activation can be done via the front panel or remotely via Hard Switch CC, Momentary Switch or DC Voltage. The TSD-SEQ6 also incorporates an Emergency Power Down (EPD) port for local fire codes. You can link two TSD-SEQ6 units together giving you 12 sequenced outputs. Unit requires Power Supply that is sold separately for proper function, multiple TSDs can be powered with one power supply based on current requirements. This unit has a power requirement of 100mA so any of the available TSD power supplies can be used with the unit. For multiple TSD applications use the TSD Power Calculator to determine the proper power supply needed.
Click here to see compatible ECM modules.
Specifications
- Height: 1.5" (39mm)
- Depth: 2.75" (70mm)
