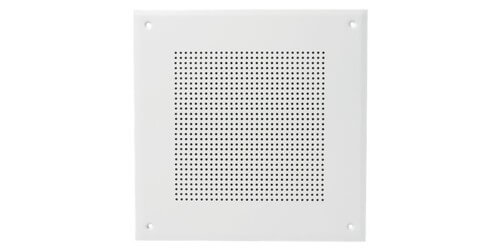

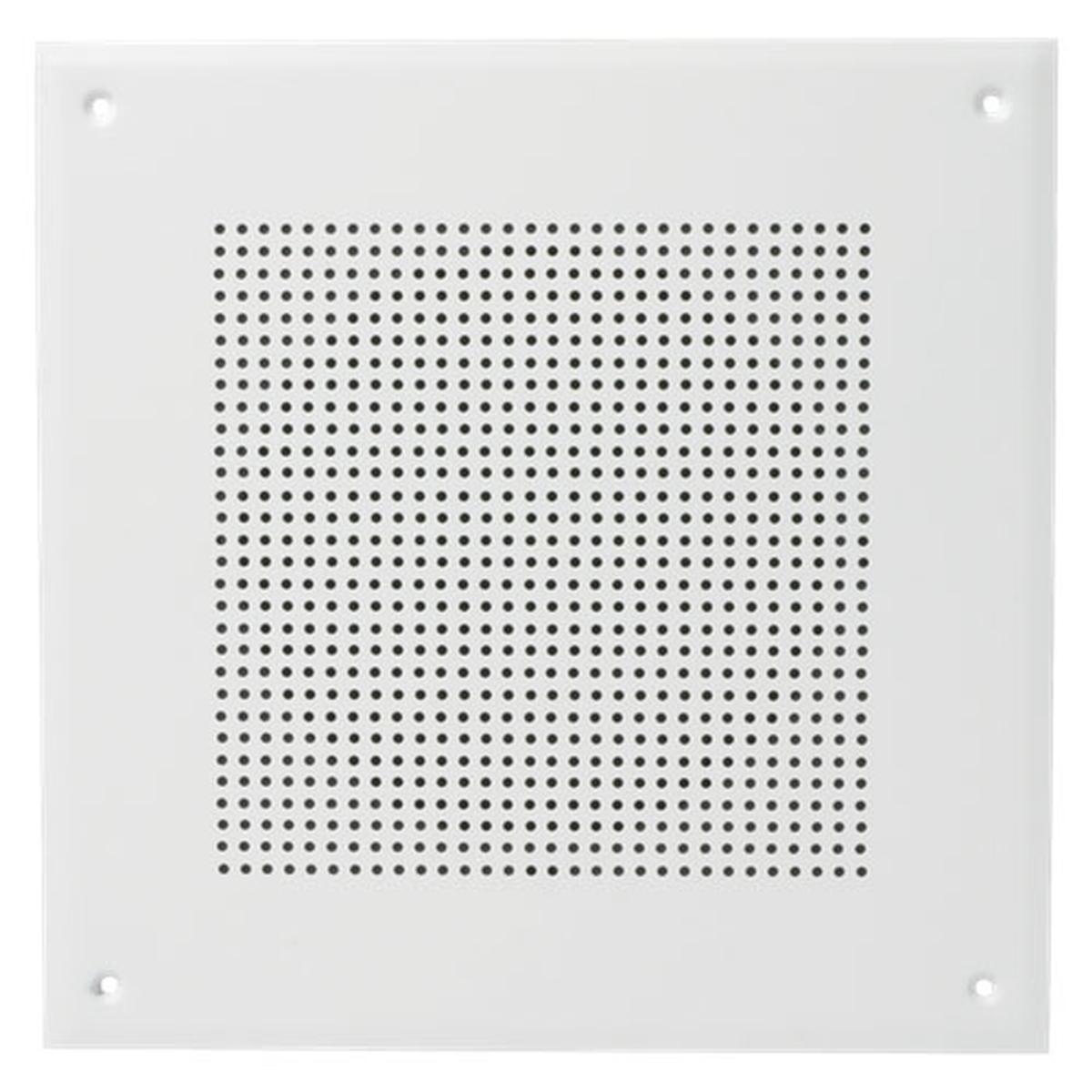

AtlasIED UHT25C-U161-8
8" Life Safety Ceiling Speaker w/ 25V-5W Xformer & Baffle
Part #: UHT25C-U161-8
Satisfaction Guaranteed!
MSRP: $120.99
Our Price:
$98.99
Top UHT25C-U161-8 Specifications
- Frequency Response 85 Hz - 8 kHz
- Power Taps .5, 1, 2, & 5 Watts
- Sensitivity 97dB Peak, 94dB Avg.
- Depth 2 7/8"
"Excellent and prompt call back from customer service!"
-Maciej Z.
-Maciej Z.
Contact a product specialist!
Proudly supporting our customers since 2008
Description
UHT25C-U161-8 8" Loudspeaker for Fire Protective Signaling with 25V-5W Transformer and U161-8 Baffle made by Atlas Sound. UHT and UKT Series are 8" diameter single and dual voice coil loudspeakers equipped with dual (whizzer) cone and 10 oz. ceramic magnet to deliver extended frequency response with high intelligibility and minimal distortion. Cost-effective units are complete with fire-retardant moisture-proof cones, factory-mounted transformer, 6" color-coded leads, and a wide selection of architecturally pleasing baffles.
UHT Series loudspeakers have a 1" dia. voice coil, choice of 70.7 or 25-volt transformer, and DC blocking capacitor for line supervision applications. UKT Series loudspeakers are equipped with two 1" dia. voice coils, two transformers (specify 70.7 or 25 volts), and a DC blocking capacitor. To comply with UL requirements, loudspeaker packages must be used with UL-approved enclosures.Specifications
- Diameter 8"
- Shipping Weight 4.67 lbs
- UL Listed/Standard 1480
