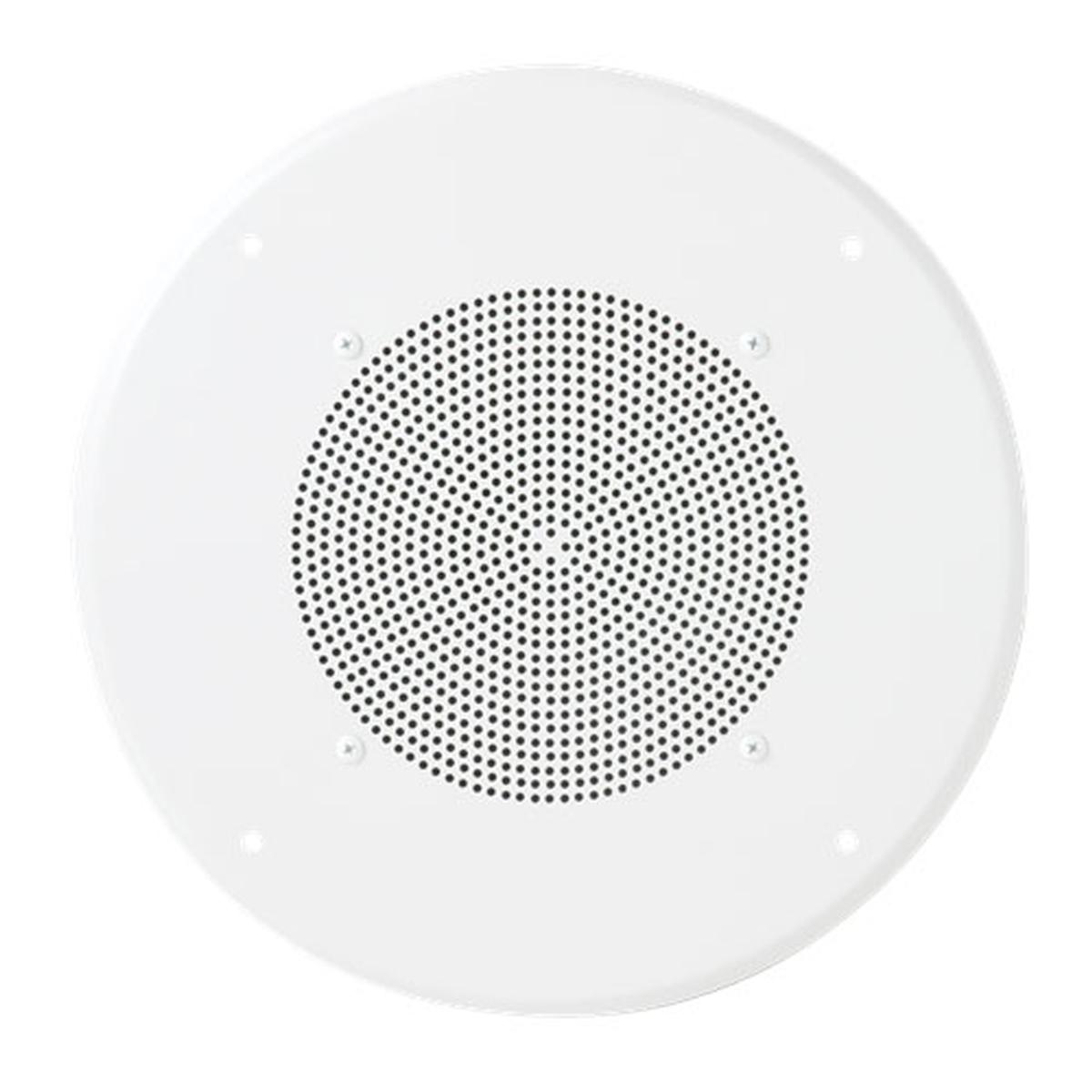

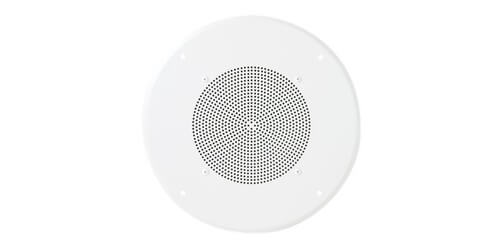

AtlasIED UHT25C-U51-8
8" Life Safety Ceiling Speaker with 25V Transformer & Grille
Part #: UHT25C-U51-8
Satisfaction Guaranteed!
MSRP: $102.99
Our Price:
$85.99
Top UHT25C-U51-8 Specifications
- Depth 2 7/8"
- Diameter 8"
- Shipping Weight 4.67 lbs
- Frequency Response 85 Hz - 8kHz
"Custom Equipment w/ quick turnaround. CERTIFIED FRESH!"
Contact a product specialist!
Proudly supporting our customers since 2008
Description
UHT25C-U51-8 8" Loudspeaker for Fire Protective Signaling with 25V-5W Transformer and U51-8 Baffle made by Atlas Sound. Atlas Sound's UHT25C-U51-8 are 8" diameter single voice coil loudspeakers equipped with dual (whizzer) cone and 10 oz. ceramic magnet to deliver extended frequency response with high intelligibility and minimal distortion.
Cost-effective units are complete with fire-retardant moisture-proof cones, factory-mounted transformer, 6" color-coded leads, and a 51-8 baffle. UHT Series loudspeakers have a 1" dia. voice coil, a 25-volt transformer, and DC blocking capacitor for line supervision applications. To comply with UL requirements, loudspeaker packages must be used with UL-approved enclosuresSpecifications
- Power Taps .5, 1, 2, & 5 Watts
- Power Rating 10 Watts
- Sensitivity 97dB Peak, 94dB Avg.
- UL Listed/Standard 1480
