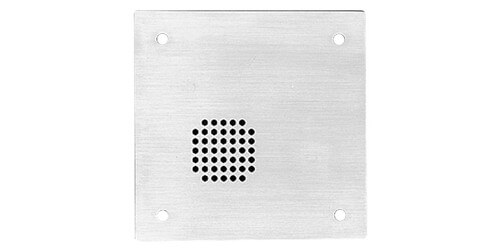

AtlasIED VPVT-4PB
Vandal Proof Intercom Station w/ Compression Driver & 25V Xformer

Our Price: $214.99

Request a Quote

Top VPVT-4PB Specifications

Description

VPVT-4PB Vandal Proof Intercom Station with Compression Driver & Call Switch 25V Transformer made by Atlas Sound. This vandal proof loudspeaker station withstand damage caused from abuse, moisture, corrosion, dust, vibration and temperature extremes from 150 to -30 F. Station is available in 15 watt model with 12 gauge stainless steel plate mounted to the high efficiency VT Series compression driver. Patented 8 ohm driver with water-sealed die cast zinc housing and exponential sound projector is recognized for dependable performance and high intelligibility voice and signal transmission. Driver functions as a loudspeaker and a microphone for hands-free remote station communication with a centrally located master control.

It incorporates a vandal proof call switch with 3 amp contact rating for call-in signalling capability. Call switch is a heavy duty, momentary action push button flush mounted for security and durability. Station assemblies install with tamper proof, button-head breakaway screws to a recess mounting enclosure (order separately)

or as a stand alone signalling device when a separate or remotely located call origination button is desired. Switch is a SPST normally open circuit with 3 amp contact rating. Vandal proof hardware installs using a 6 32 holt-head driver bit for a standard 1/4" nut driver.

Bit may be ordered separately. Order Model HX56-6D.

Specifications

• Power Taps 15, 8, 4, & 2
• Dispersion > 190 (- 6dB pt., 1 and 2 kHz octave bands)
• Sensitivity 102dBA
• Transformer 25V

Downloads

• AtlasIED VPVT-4PB Specifications (PDF)
• Atlas Sound VPVT-4PB Installation Sheet (PDF)

Q & A

Reviews

Image Gallery

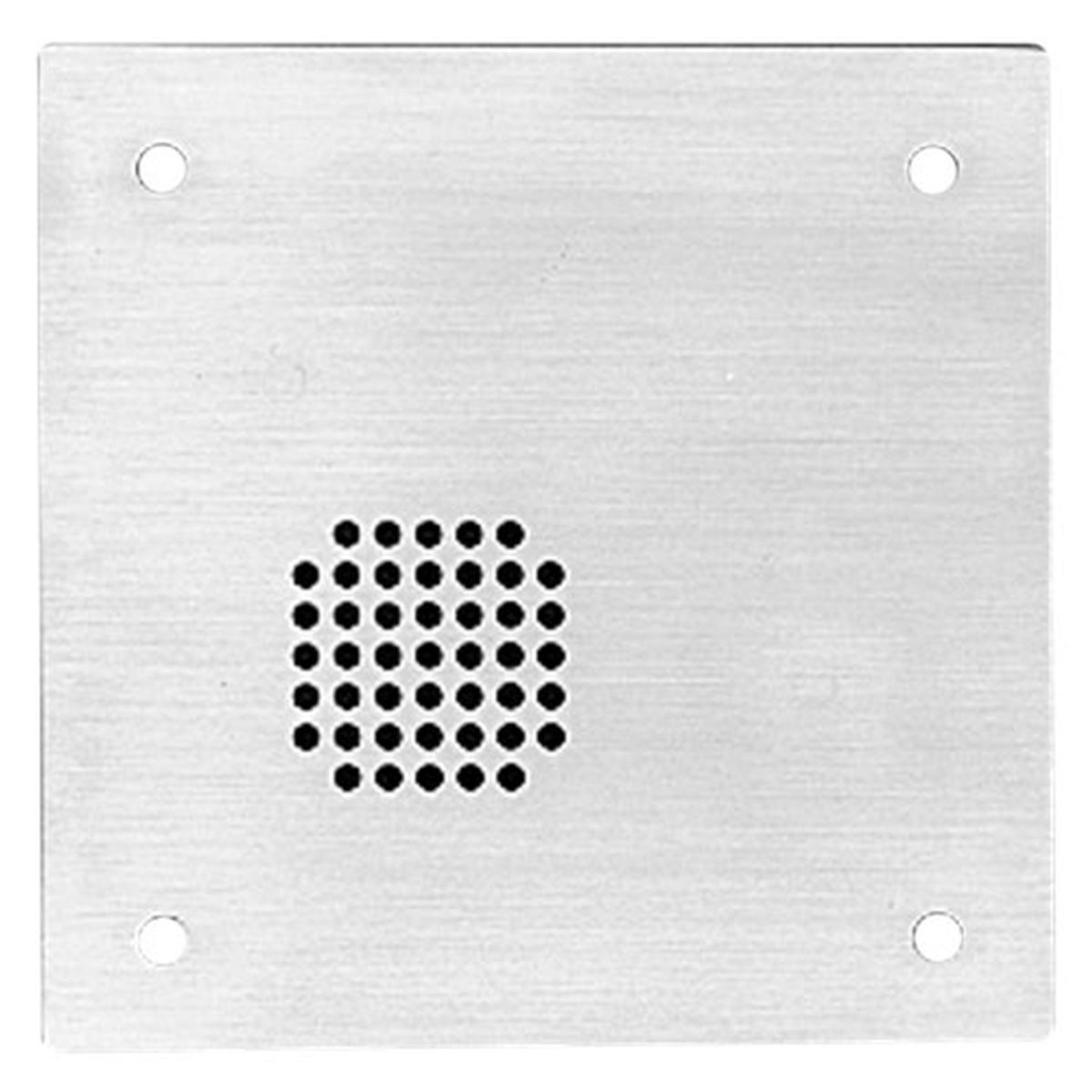

Atlas Sound VPVT-4PB

•
