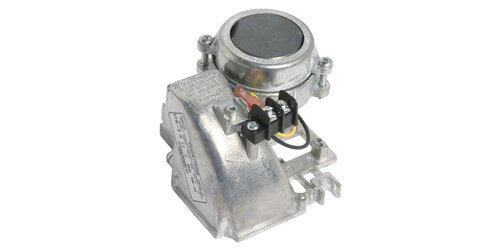

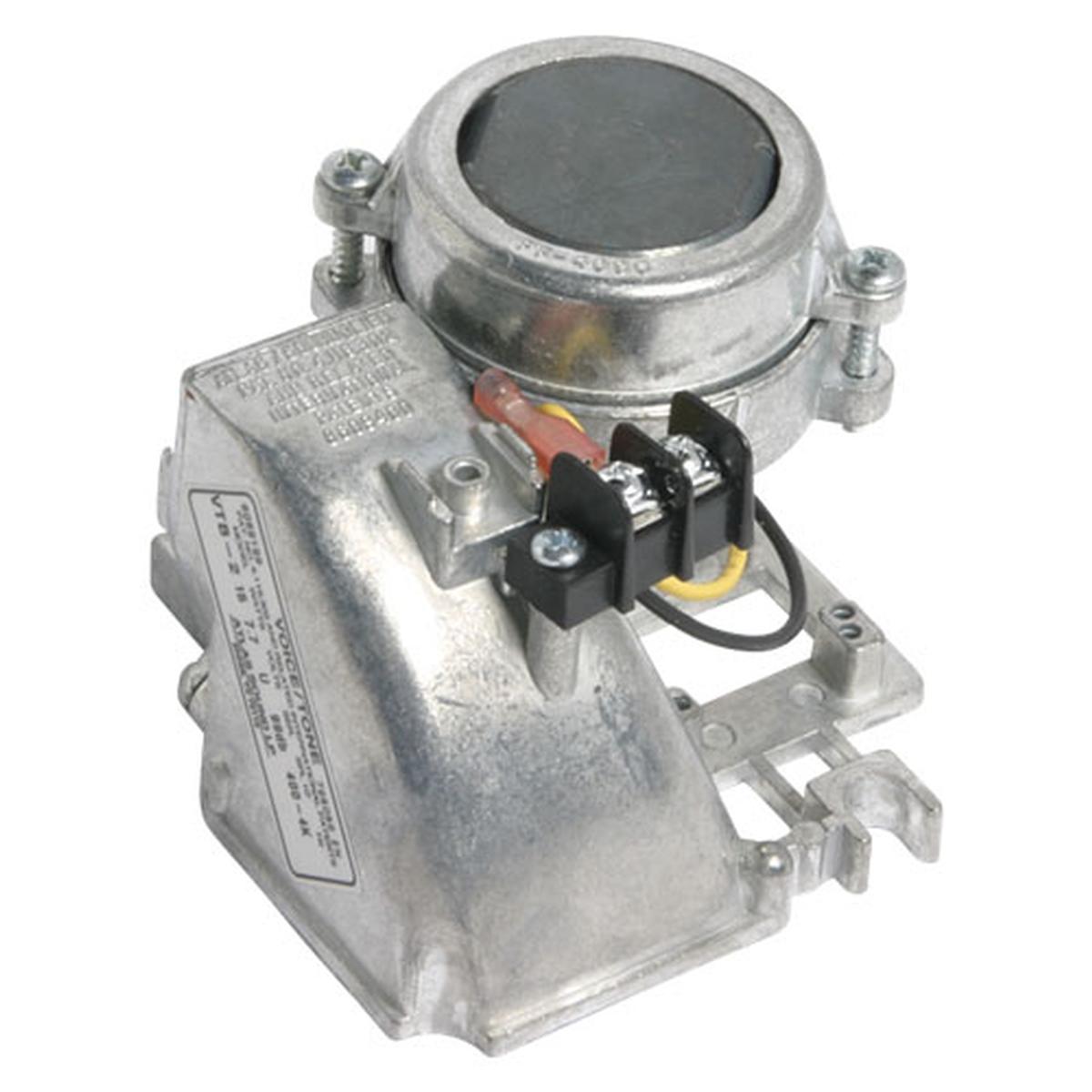

AtlasIED VTB-2
Weather Resistant Compression Driver - 25V-2W Transformer
- Height 3-11/16"
- Width 3-11/16"
- Depth 3-3/16"
- Shipping Weight 2.00 lbs
-Gregory W.
Description
VTB-2 Environment-Resistant Voice/Tone Compression Driver 15W @ 4 Atlas Sound VTB Series Models are environment-resistant loudspeakers designed for intercom communication. VTB Models feature an integral exponential horn to provide reliable sound distribution and optimum intelligibility for the reproduction of voice and/or electric tone signals. Units have a frequency response of 600 Hz to 5500 Hz 5dB, and are offered in six models to meet application requirements. Series Models VTB-1 and VTB-2 are 8 and 4 ohm units, respectively. Models VTB-3 through VTB-6 are equipped with a built-in transformer. Termination is via 6" color coded leads. Units are of die-cast zinc construction with a water-sealed driver that will withstand moisture, corrosion, vibration, vermin, and vandalism. Models are available with a selection of multi-tap transformers and are designed to mount a variety of standard or custom housings and face plates to meet installation and application requirements. VTB Series units provide years of trouble-free service in stationary or mobile applications both indoors or outdoors.
Specifications
- Frequency Response 600 Hz - 5500 Hz ( 5dB)
- Power Handling 15W (4 Ohms)
- Sensitivity 96.9dB (1W / 1M)
- UL Listed/Standard 1480 Recognized Component
