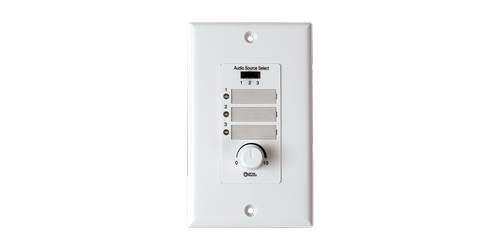

AtlasIED WPD-RISRL
3 Input Select Wall Plate w/ Volume Control for AAPHD Amplifiers
- Allows for remote input selection and volume adjustment
- Works with the following Atlas Sound amplifiers: AA50PHD, AA100PHD, AA200PHD, AA400PHD
- Size: 1 gang
- Color: White
Description
The Atlas Sound WPD-RISRL is a remote input select wall plate with volume level control, it allows users to individually select their input and volume control from up to 200' away from the amplifier with CAT5e or CAT6 cabling with no audio degradation. The wall plate allows you to select from up to 3 inputs with a slide select switch, you can then select up to 3 sources with LED indication. All this is accomplished by taking up only a single gang of space with a decora style wall plate.

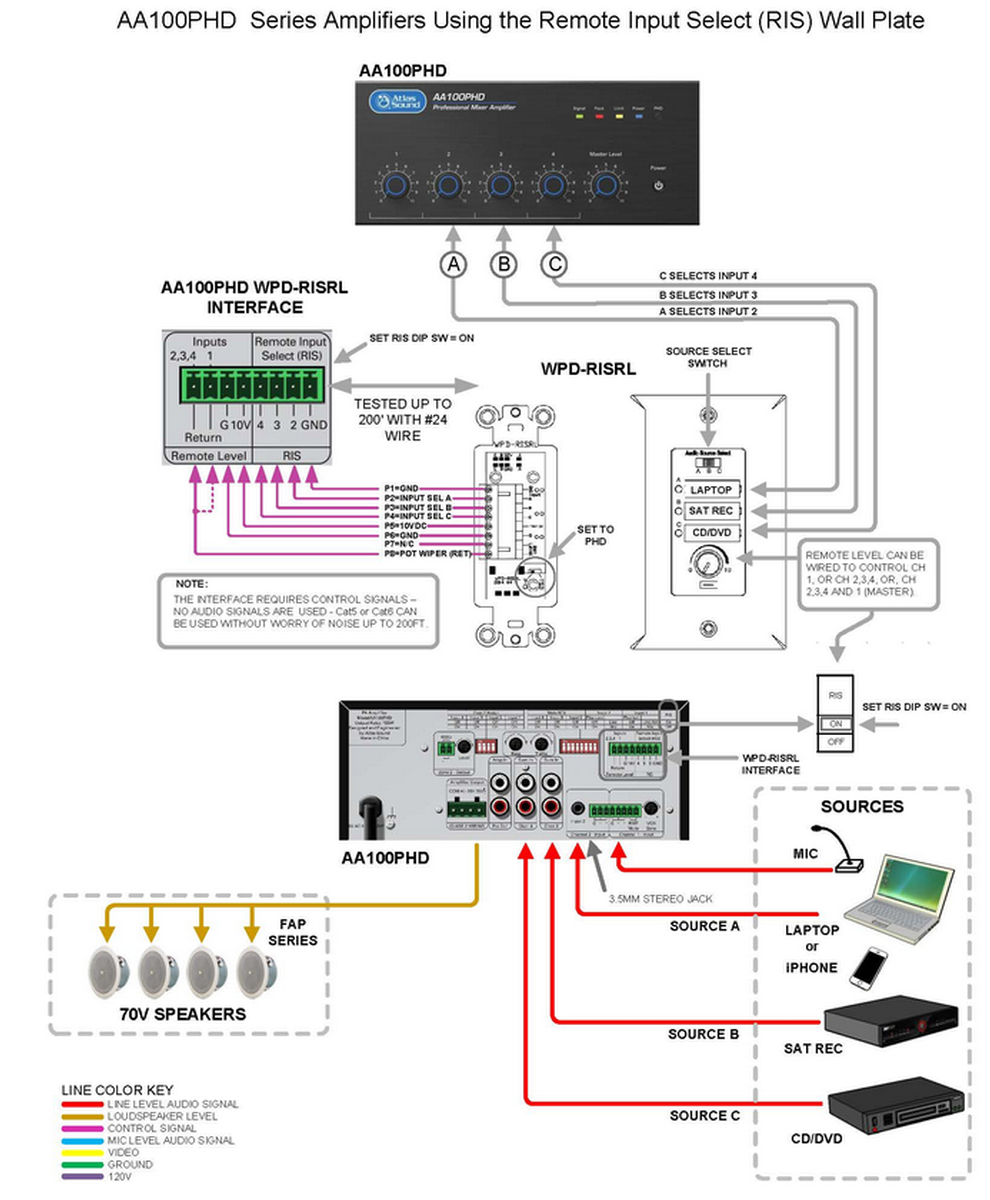

The plate uses an 8-conductor interface connection that includes a single 4 position removable Phoenix connector and dual 2 position Phoenix style connectors. When connected to the RIS output on an appropriate AAPHD amplifier (AA50PHD, AA100PHD, AA200PHD, AA400PHD), the WPD-RISRL allows for remote selection and volume adjustment of inputs 2, 3, and 4 allowing the rack to remain locked and secured.
Specifications
- Input select slide switch
- Level control via on board 10k potentiometer
- System status indicator (Red)
- 8-Conductor interface connection
- Label guard
