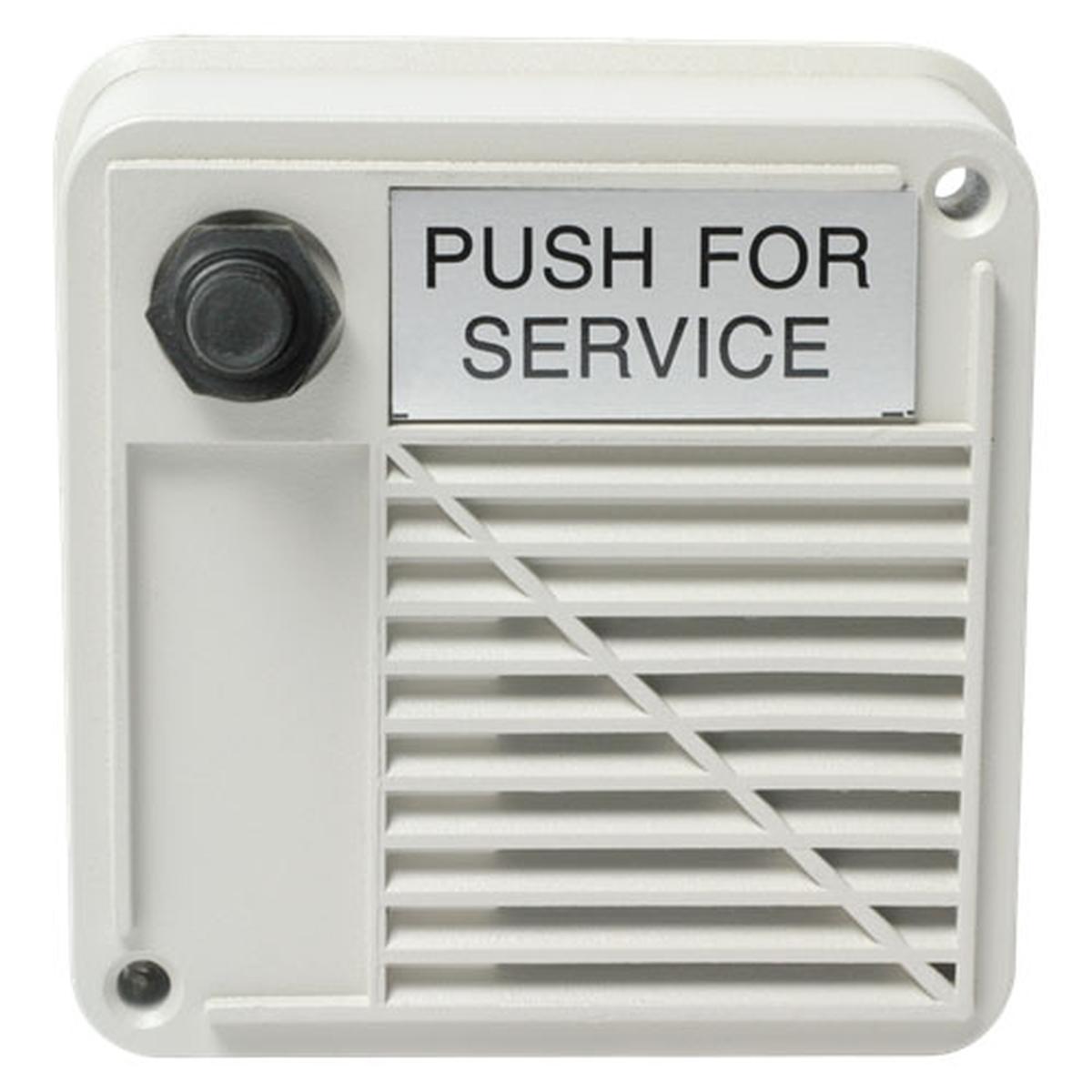

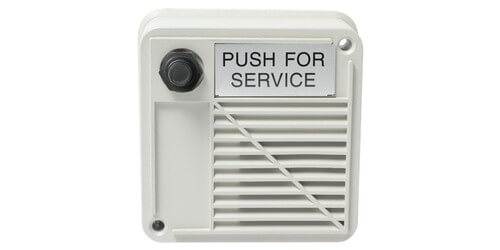

AtlasIED WPVT-1SN
Outdoor Surface Mount Gray Intercom 15W - 8 Ohms

Our Price: $161.99

Request a Quote

Top WPVT-1SN Specifications

Description

WPVT-1SNOutdoor Surface Mount Intercom Stations with Compression Driver and Call Switch 15W 8 ohms made by Atlas Sound. This Series are flush- and surface-mounting, weather-resistant, electro acoustic signaling devices respectively. They are ruggedly constructed to withstand moisture, corrosion, dust, vibration, and temperature extremes from -30 to 150 F. Stations include high-intelligibility, environment-resistant compression driver, choice of semi-recessed enclosure or flush face plate, a variety of mounting accessories, and a weather resistant call button for protected call-in signalling capability. Stations are available in 15 or 2 watt versions with optional 25 volt transformer.

The 8 ohm compression driver is the patented VT Series model with water-sealed, die-cast zinc construction and integral, exponential sound projector to provide clear audibility.

It also features a call switch is a momentary-action, heavy-duty push button with a contact rating of 3 amps. The call button has a SPDT-type switch which is protected by a weather-resistant rubber boot to provide durable and safe operation in outdoor and high humidity environments.

WPVT-SN Series are compact assemblies size 41/4" SQ x 31/8" D which are designed for semi-recessed installation. WPVT-FN Series are attractively designed face plates size 6" SQ x 33/16" D for flush installations. Enclosures and face plate are die-cast construction finished in neutral grey epoxy.

Specifications

• Frequency Response 600-5500Hz
• Power Taps 15 Watts, 8 Ohms
• Dispersion > 190 (- 6dB pt., 1 and 2 kHz octave bands)
• Sensitivity 102dBA
