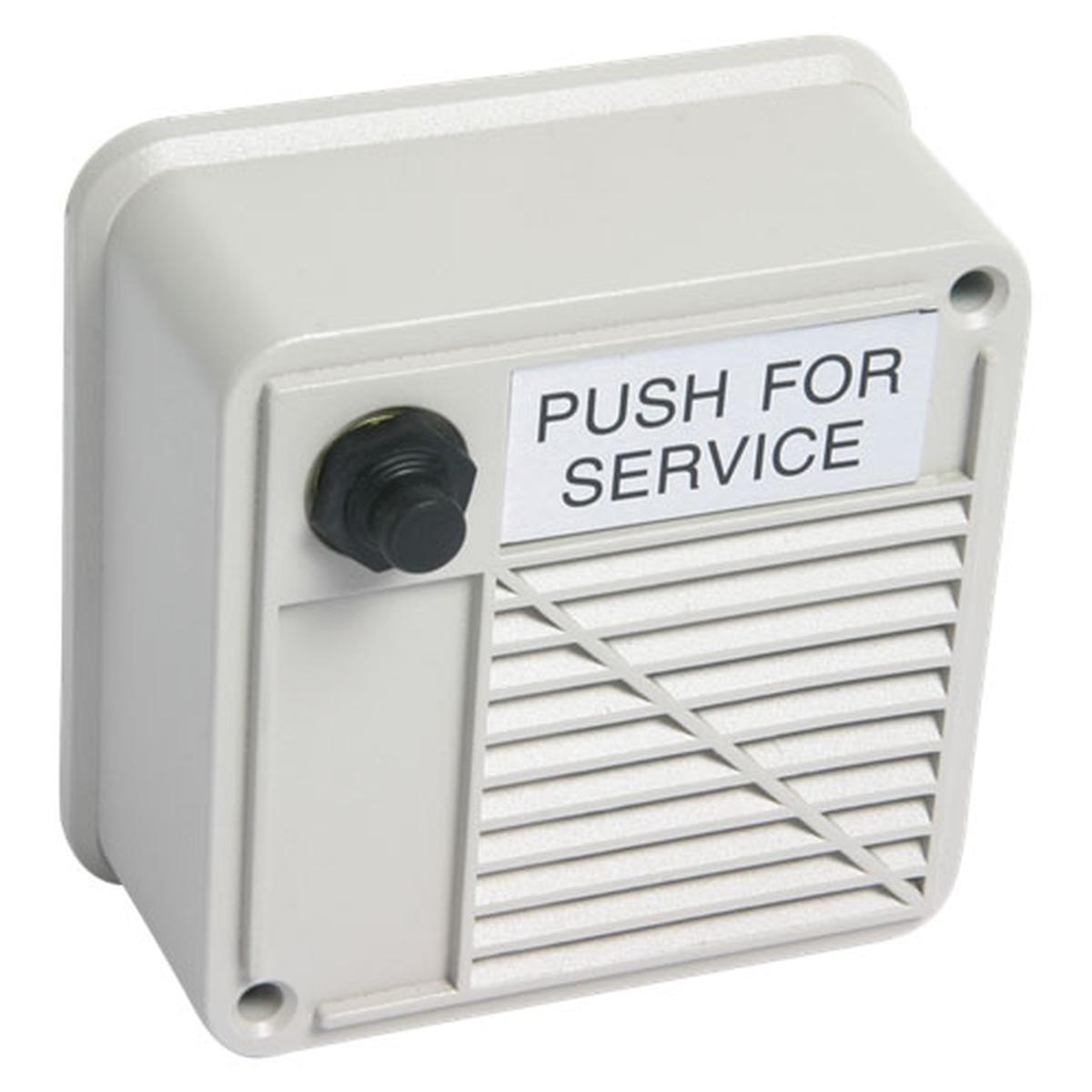

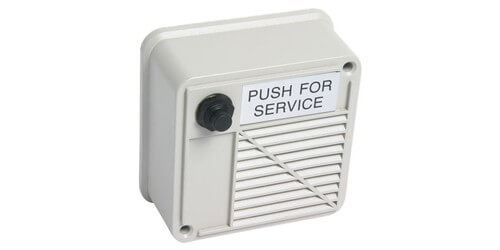

AtlasIED WPVT-4SN
Outdoor Surface Mount Gray Intercom 15W - 25V

Our Price: $178.99

Request a Quote

Top WPVT-4SN Specifications

Description

WPVT-4SNOutdoor Surface Mount Intercom Stations with Compression Driver and Call Switch 15W 25V made by TAlas Sound. This Series are flush- and surface-mounting, weather-resistant, electro-acoustic signaling devices respectively. They are ruggedly constructed to withstand moisture, corrosion, dust, vibration, and temperature extremes from -30 to 150 F. Stations include high-intelligibility, environment-resistant compression driver, choice of semi recessed enclosure or flush face plate, a variety of mounting accessories, and a weathe rresistant call button for protected call-in signalling capability.

Stations are available in 15 or 2 watt versions with optional 25 volt transformer. The 8 ohm compression driver is the patented VT Series model with water-sealed, die-cast zinc construction and integral, exponential sound projector to provide clear audibility.

Call switch is a momentary-action, heavy-duty push button with a contact rating of 3 amps. The call button has a SPDT-type switch which is protected by a weather-resistant rubber boot to provide durable and safe operation in outdoor and high humidity environments.

WPVT-SN Series are compact assemblies size 41/4" SQ x 31/8" D which are designed for semi-recessed installation. WPVT-FN Series are attractively designed face plates size 6" SQ x 33/16" D for flush installations. Enclosures and face plate are die-cast construction finished in neutral grey epoxy.

Specifications

• Frequency Response 600-5500Hz
• Power Taps 15, 8, 4, 2
• Dispersion > 190 (- 6dB pt., 1 and 2 kHz octave bands)
• Sensitivity 102dBA
• Transformer 25V

Downloads

• AtlasIED WPVT-4SN Specifications (PDF)
• Atlas Sound WPVT-4SN Installation Sheet (PDF)
