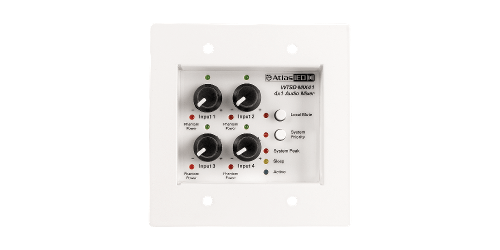

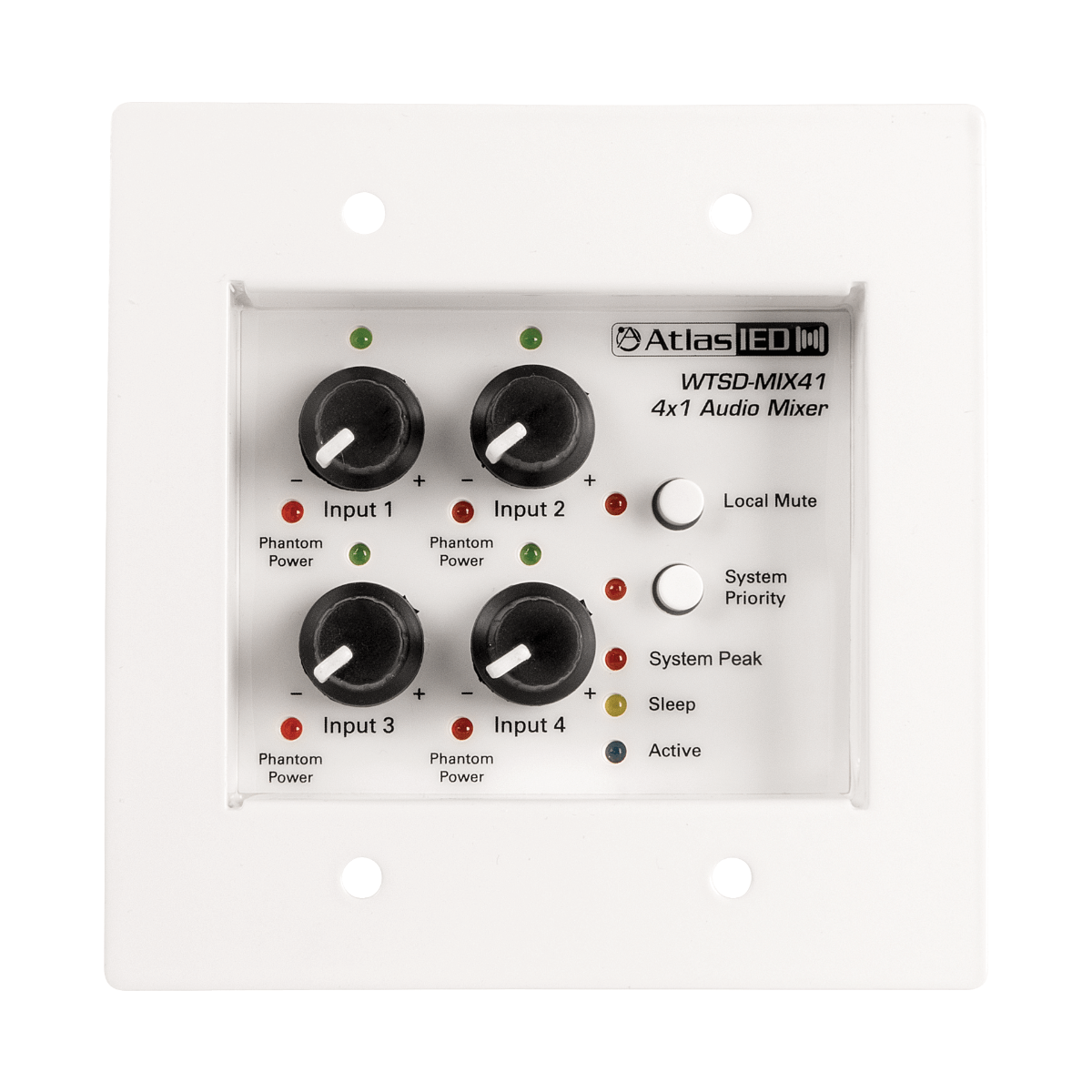

AtlasIED WTSD-MIX41K
Indoor/Outdoor Analog Wall 4x1 Mic/Line Mixer W/Optional Dante Audio Network Interface
- Input Type: Unbalanced, Qty. 4
- Impedance: 1.2k ohms Balanced, 600 ohms Unbalanced
- Phantom Power: 24VDC Defeatable Rear panel DP SW, ON Indicator RED Front Panel
- Low Cut Filter: 125Hz/12dB Defeatable Rear Panel DP SW
-Chad R.
Description
Model WTSD-MIX41K is a 4x1 Mic/line Analog Mixer that features four balanced microphone/line inputs and a balanced line output. Selection between mic or line level is done via dip switch on the rear panel. The high gain mic inputs incorporate user enabled phantom power for condenser microphones and a 120Hz low cut filter to eliminate unwanted low frequency interferences. A global mute function can be triggered via local switch. Separate level controls for each input provide control for the audio mix needed. Input peak and signal indicators give visual reference to set the gain structure for maximum performance. The WTSD-PWBOB comes with each unit and features a balanced audio output with signal, mute, system priority and power LEDs and 12V DC logic output for remote system muting or power sequencing.
Specifications
- Line Input Level: 500mV (-6dBV) Balanced
- Maximum Input Level: 6V (+6dBV)
- Mic Input Level: No Pad Applied = 5mV (-46dB) = 2V (+6dBV) Balanced Output
- Mic Input Level: 10dB Pad Applied = 15mV (-36dB) = 2V (+6dBV) Balanced Output
- Mic Input Level: Maximum Input 40mV (-27dBV)
- Output Type: WTSD Bus
- Connector Type: RJ45
- Frequency Response: 20Hz -20KHz +/- 1dB
- THD: .06% and 1KHz
- Height: 4.37" (111mm)
- Width: 4.34" (110mm)
- Depth: 2.5" (62.6mm)
- Weight: 0.53 (.24kg)
- Shipping Weight: 1.3. (.61kg)
