Atlona AT-AVA-EX70-KIT
Avance 4K/UHD HDMI Extender Kit with Remote Power

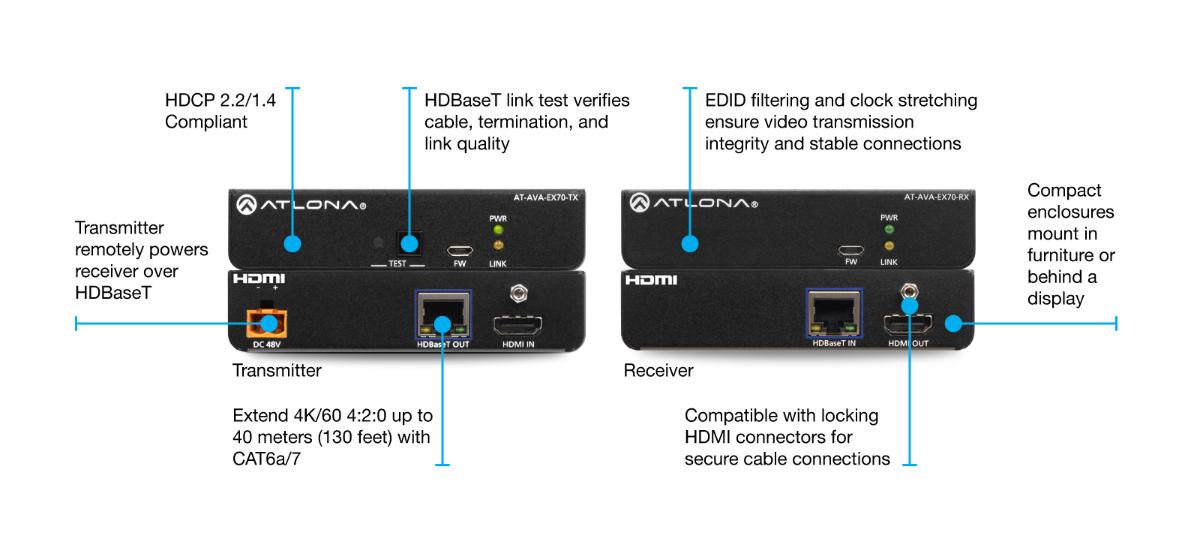

- Supports resolutions up to 4K/UHD 60 Hz 4:2:0
- Remote power, transmitter powers receiver over HDBaseT
- EDID filtering prevents extension of unsupported resolutions
- HDBaseT link test verifies cable, termination, and link quality
-Chad R.
Description

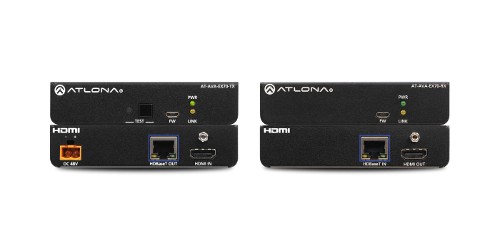

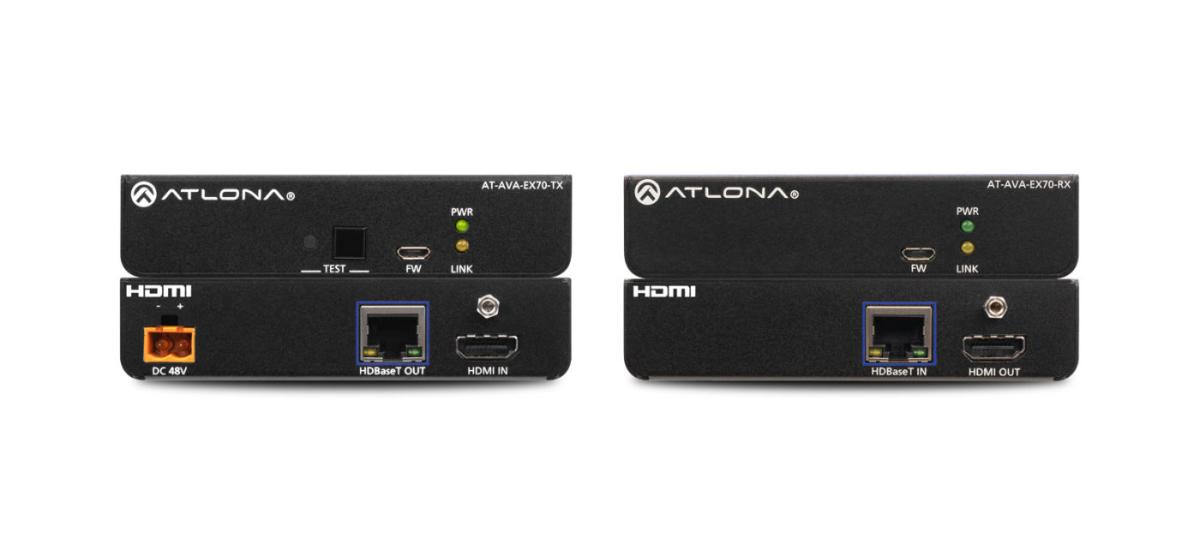

The Atlona AT-AVA-EX70-KIT is an Avance™ Series HDBaseT extender kit with remote power for transmitting 4K/UHD 60 Hz 4:2:0 video up to 130 feet (40 meters) or 1080p 60 Hz video up to 230 feet (70 meters). In addition to video with embedded multi-channel audio signals, remote power is provided from the transmitter to the receiver on the single Category 6/6A cable. EDID filtering and clock stretching ensure video transmission integrity and stable connections. Integrated HDBaseT link test allows quick verification of cable, termination, and link quality. The AT-AVA-EX70-KIT includes both transmitter and receiver endpoints. Compact enclosures and included brackets allow the devices to be surface mounted in furniture or behind a display. The AT-AVA-EX70-KIT delivers a cost-effective solution for extension of video, audio, and receiver power at resolutions up to 4K/UHD.
Specifications
- HDCP 2.2 compliant
- Warranty: 10 years
