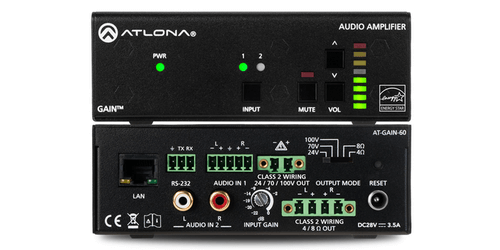

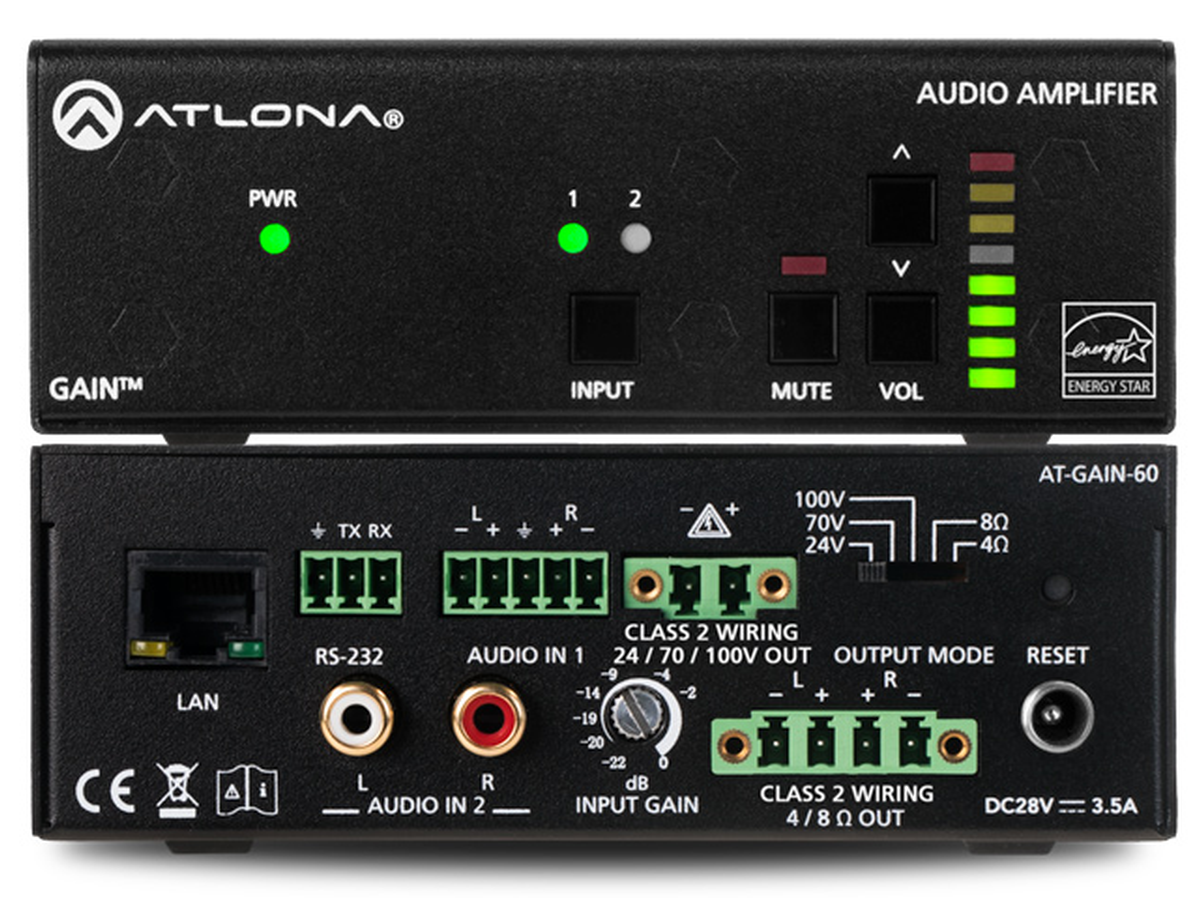

Atlona AT-GAIN-60
Stereo/Mono Power Amplifier, 60W

Description

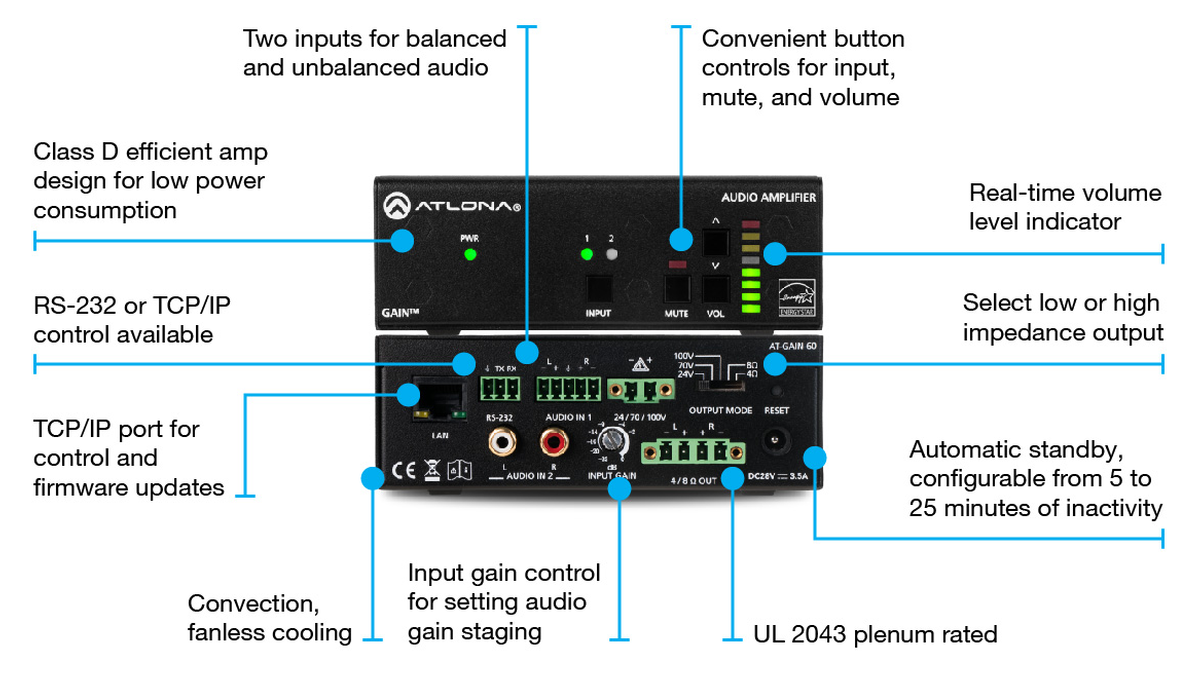

The Atlona AT-GAIN-60 is a 60-watt power amplifier. This convection-cooled device is plenum rated, so you can stow this device above a drop ceiling. The AT-GAIN-60 features both balanced and unbalanced inputs, and it can be used in both high- and low-impedance designs.

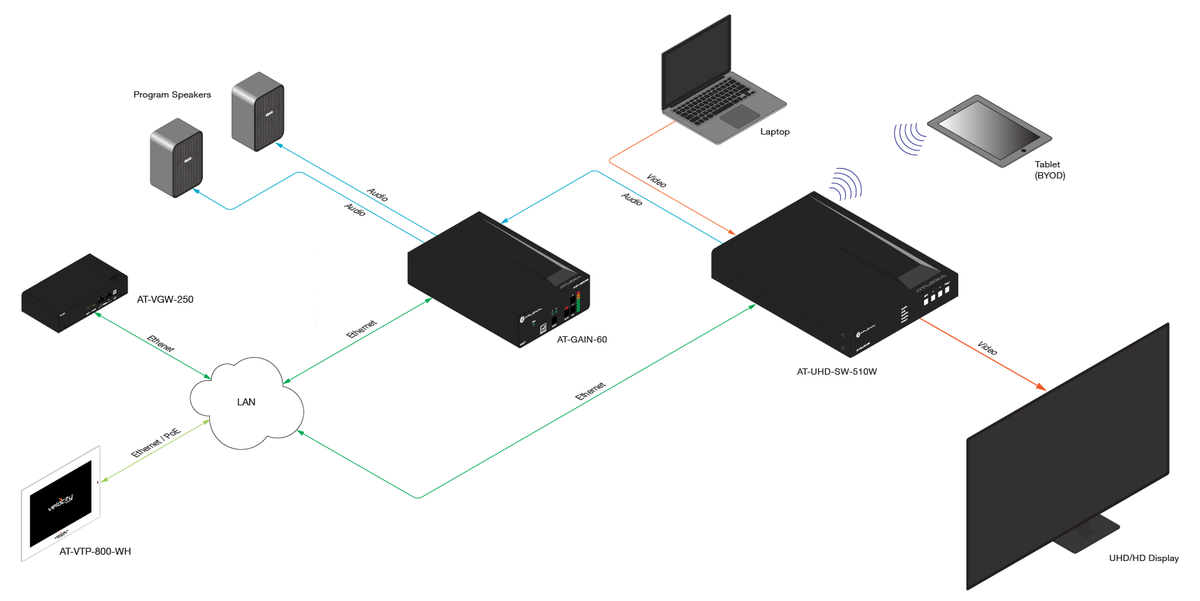

It features a mode selector that enables you to provide two 30-watt channels into 4 or 8 Ohms, or you can use a single channel of 60-watts at 24, 70, or 100 volts. This power amplifier can receive audio from an AV switcher or DSP and send that audio to speakers. Other key features of this device include the following:

• Configurable automatic standby for 5 to 25 minutes of inactivity
• Integrated protection circuitry automatically activates during clipping, short circuit, thermal overload, and more
• ENERGY STAR qualified
• Works alongside IP-based control from Atlona Velocity Control System

Specifications

• 4/8 Ohms Out: 1 4-pin, 5.08mm lock-down screw connector
• 24/70/100V: 1 5-pin, 3.5mm
• Power: 1 3.5mm barrel, locking
• Input Gain: 1 rotary pot
• Mode: 1 slider switch, 5-pole, 24/70/100V 4/8 Ohms
• Input Signal
• Analog Input: Balanced 20 kOhms, unbalanced 10 kOhms
• Input Gain: Adjustable, -22 dB to 0 dB
• Output Signal

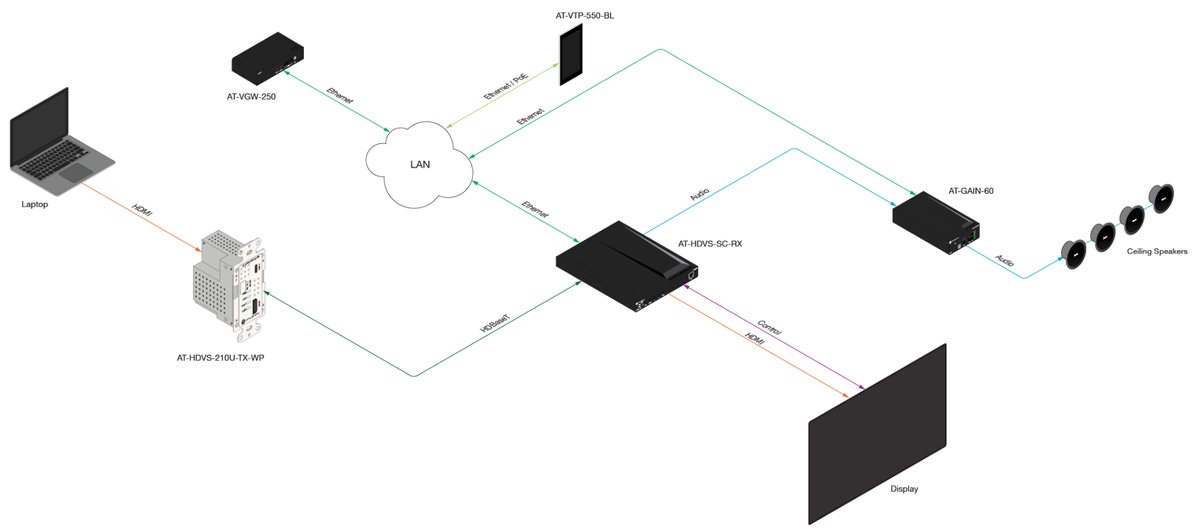

• Distributed Speakers: 24/70/100V
• Program Speakers: 4/8 Ohms, line level
• Audio Processing
• Audio Formats: 24-bit compressed
• Dimensions: 1.69x5x7.95 inches
• Weight: 3.15 pounds
• Warranty: 10 years

Downloads

• Atlona AT-GAIN-60 Specifications (PDF)
• Atlona AT-GAIN-60 Manual (PDF)
• Atlona AT-GAIN-60 Installation Guide (PDF)
