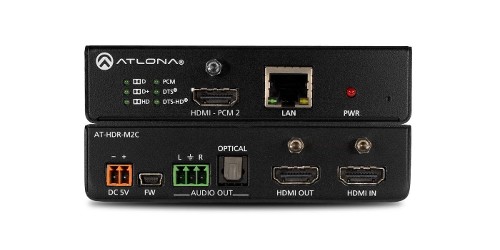

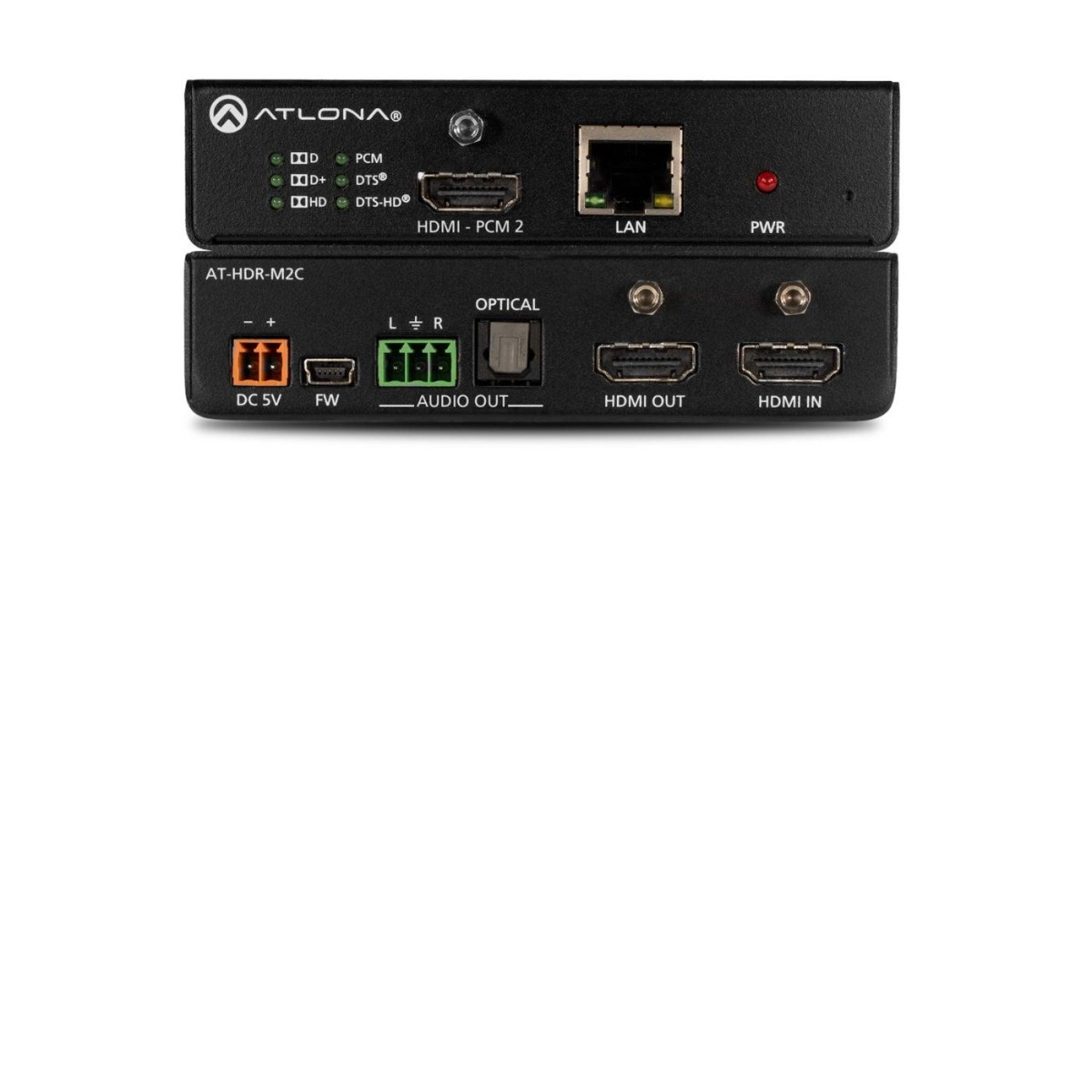

Atlona AT-HDR-M2C
4K HDR Multi-Channel Audio Converter

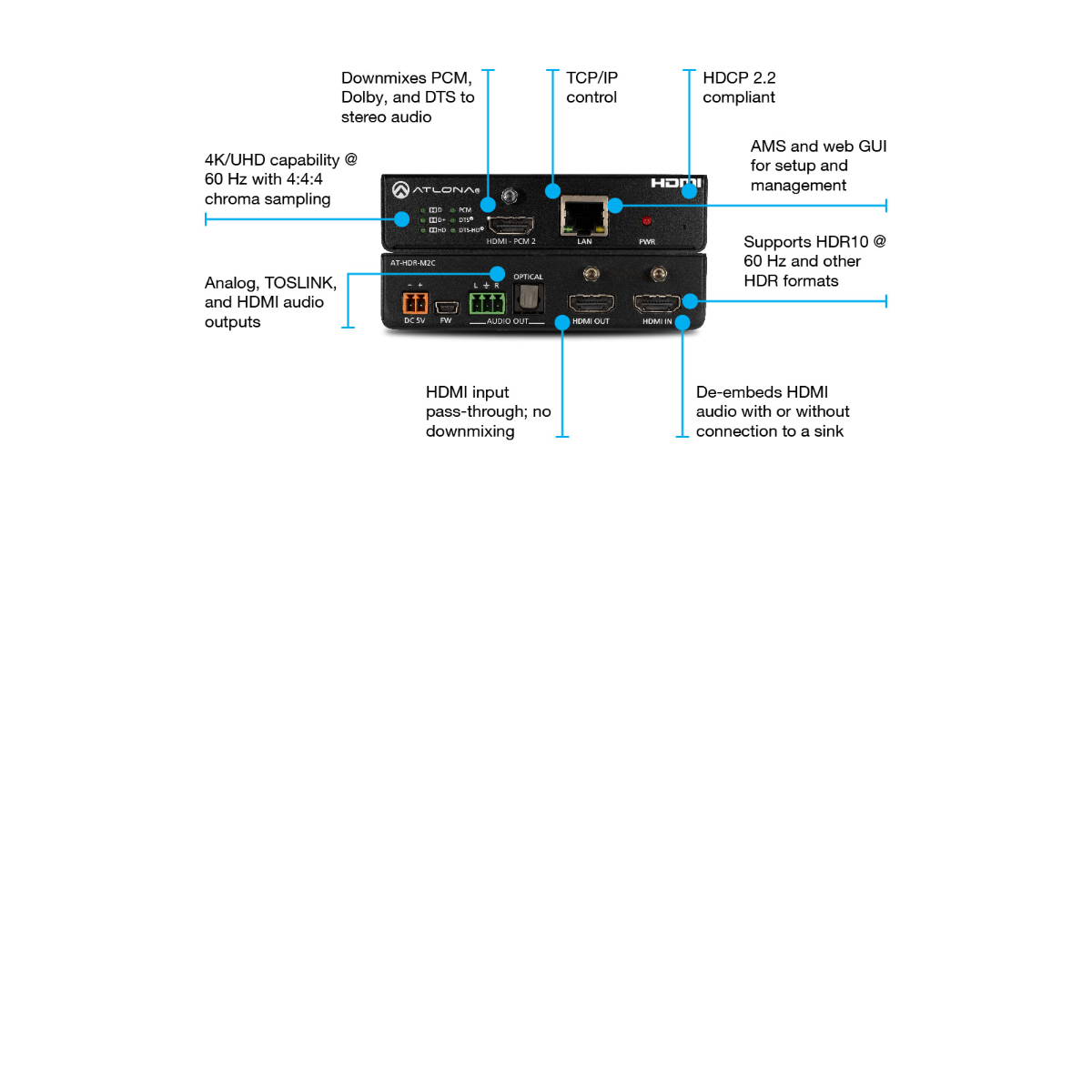

- HDMI audio de-embedding and multi-channel audio downmixing
- Downmixes multi-channel PCM, Dolby , and DTS formats to stereo audio
- 4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling, plus support for HDR formats
- HDCP 2.2 compliant
-Patrick S.
Description
The Atlona AT-HDR-M2C is an audio converter for extracting and downmixing multi-channel PCM, Dolby, and DTS audio from HDMI sources. Part of the comprehensive family of Atlona 4K HDR integration products, it features an HDMI input with pass-through, and delivers stereo downmixed audio over a separate HDMI output, as well as unbalanced analog and TOSLINK digital audio outputs. The HDR-M2C is compatible with high dynamic range (HDR) formats and is HDCP 2.2 compliant. It supports 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gbps. This audio converter includes EDID management features as well as audio volume and bass / treble controls, all available via Ethernet through the Atlona Management System (AMS), the web GUI, or a control system. The HDR-M2C can conveniently serve surround sound and two-channel audio systems from a multi-channel audio source.
The HDR-M2C is ideal for residential and commercial applications with the latest as well as emerging 4K/UHD and HDR sources and displays. It includes Atlona’s award-winning 10-year limited product warranty and customer support services, so that integrators can specify, purchase, and install with confidence.
Specifications
- Analog: PCM 2Ch (De-embedded)
- Optical Output: PCM 2Ch (De-embedded)
- HDMI Output: PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus , Dolby TrueHD, DTS-HD Master Audio
- Bandwidth: 18 Gbps
- CEC: Not Supported
- HDCP: 2.2 Compliant
