Atlona AT-HDVS-150-TX-WP
1 HDMI & 1 VGA to HDBaseT Wall Plate for AT-UHD-CLSO-824

Description

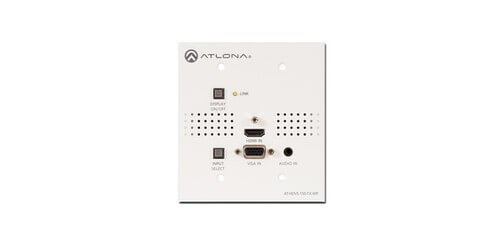

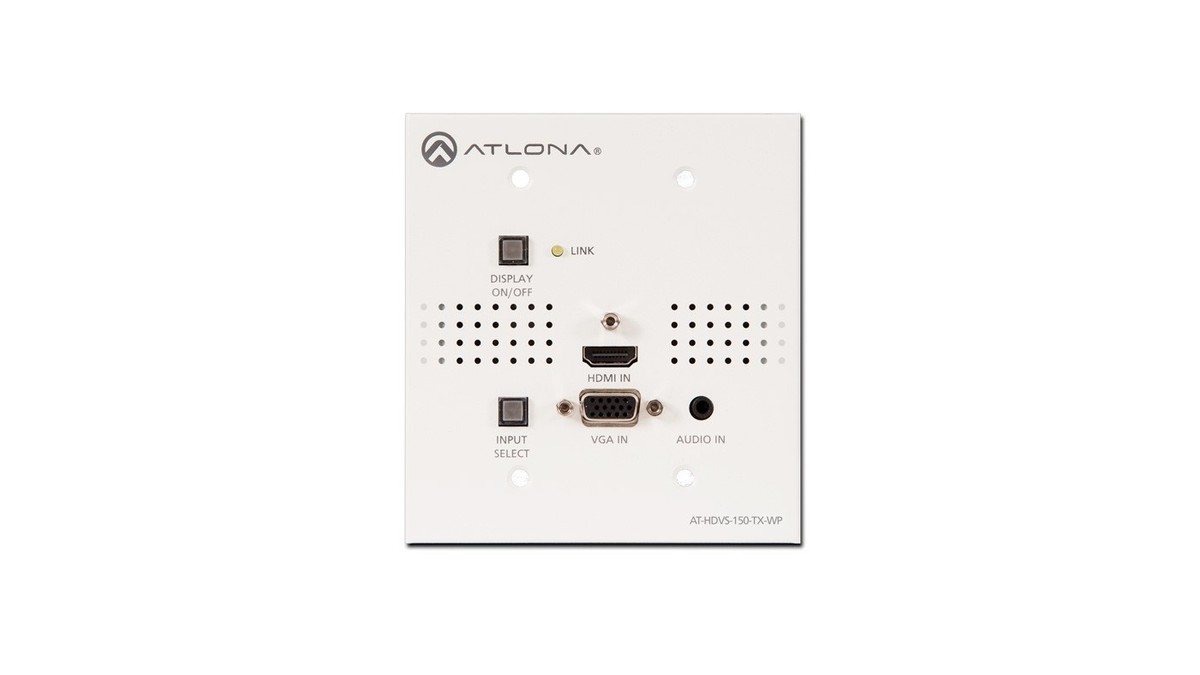

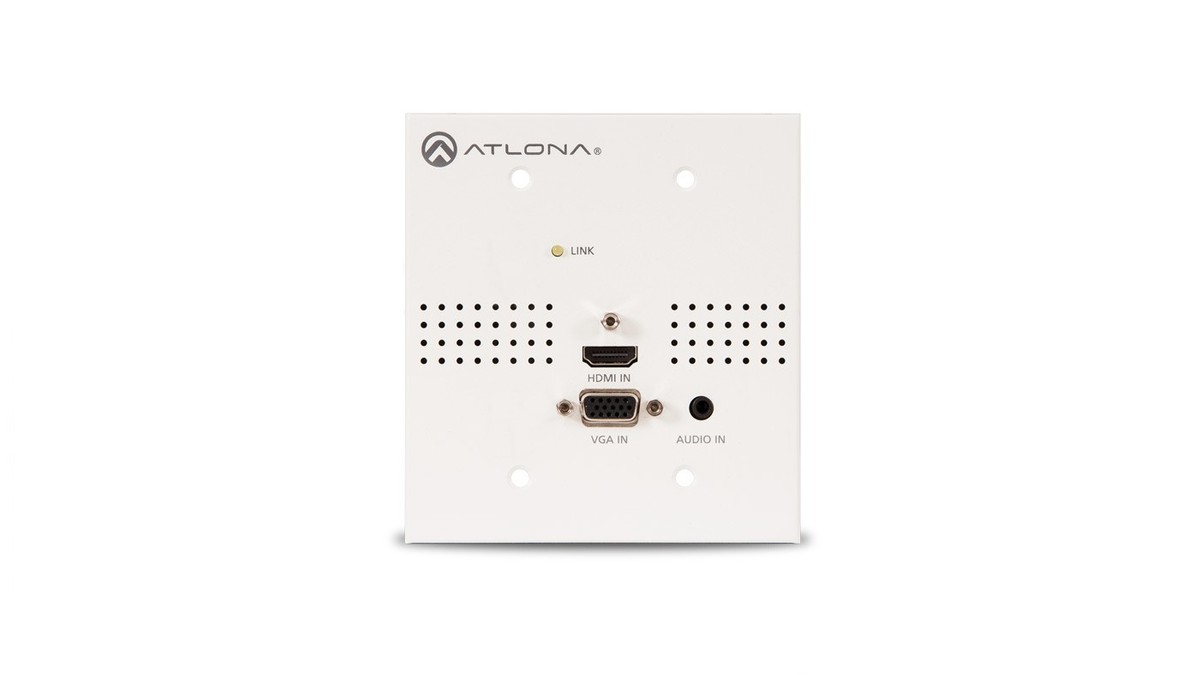

The Atlona AT-HDVS-150-TX-WP is a 2x1 HDBaseT auto switching wall plate designed to transmit your signal to the AT-UHD-CLSO-824 multi-format matrix switcher with HDBaseT inputs.  The wall plate features 1 HDMI input and 1 VGA with audio input, it then outputs your video with embedded audio via a single HDBaseT output over Cat5e up to 230' for 1080P, or 4K60 (4:2:0) up to 131' using Cat6a/7 cable. Not only is it a transmitter but it is also an auto switcher, it detects the last plugged in signal and senses and auto switches the perfectly scaled signal on the output.  The front panel also features control for display on and off when used with a third party control system, and manual input select buttons.

Up to three AT-HDVS-150-TX-WP can be connected to the AT-UHD-CLSO-824 matrix switcher extended the long distance amount of inputs the matrix is capable of.  Thee wall plate receives power from the matrix switcher so no power supply is needed making installation easy.  The Atlona AT-HDVS-150-TX is an affordable an easy to use wall control solution for larger rooms that don't need the high cost of a control system when paired with the AT-UHD-CLSO-824 matrix switcher.

Specifications

• Distance: Cat5e up to 230' for 1080P or 4K@60hz (4:2:0) up to 131' using Cat6a/7 cable
• Integrated auto switching
• Color Depth: 8-bit, 10-bit, 12-bit
• Bandwidth: 10.2Gbps
• Display on/off and manual input buttons
• HDCP 1.4
• Receives power from matrix switcher
• Color: White
• Size: 2 gang
• Weight: .82lbs
• Warranty: 10 years

Downloads

• Atlona AT-HDVS-150-TX-WP Specifications (PDF)
• Atlona AT-HDVS-150-TX-WP Manual (PDF)
