Atlona
AT-HDVS-210H-TX-WP-KIT
Two-Input Wallplate HDBaseT TX/RX for HDMI
- HDBaseT extender kit for AV, power, and control up to 330 feet (100 meters)
- US one-gang enclosure for wallplate openings - interchangeable black or white trim kits
- 2 1 HDBaseT switcher with HDMI inputs
- 4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling
Description

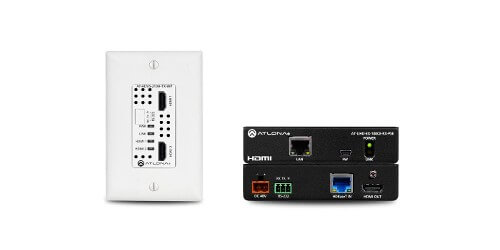

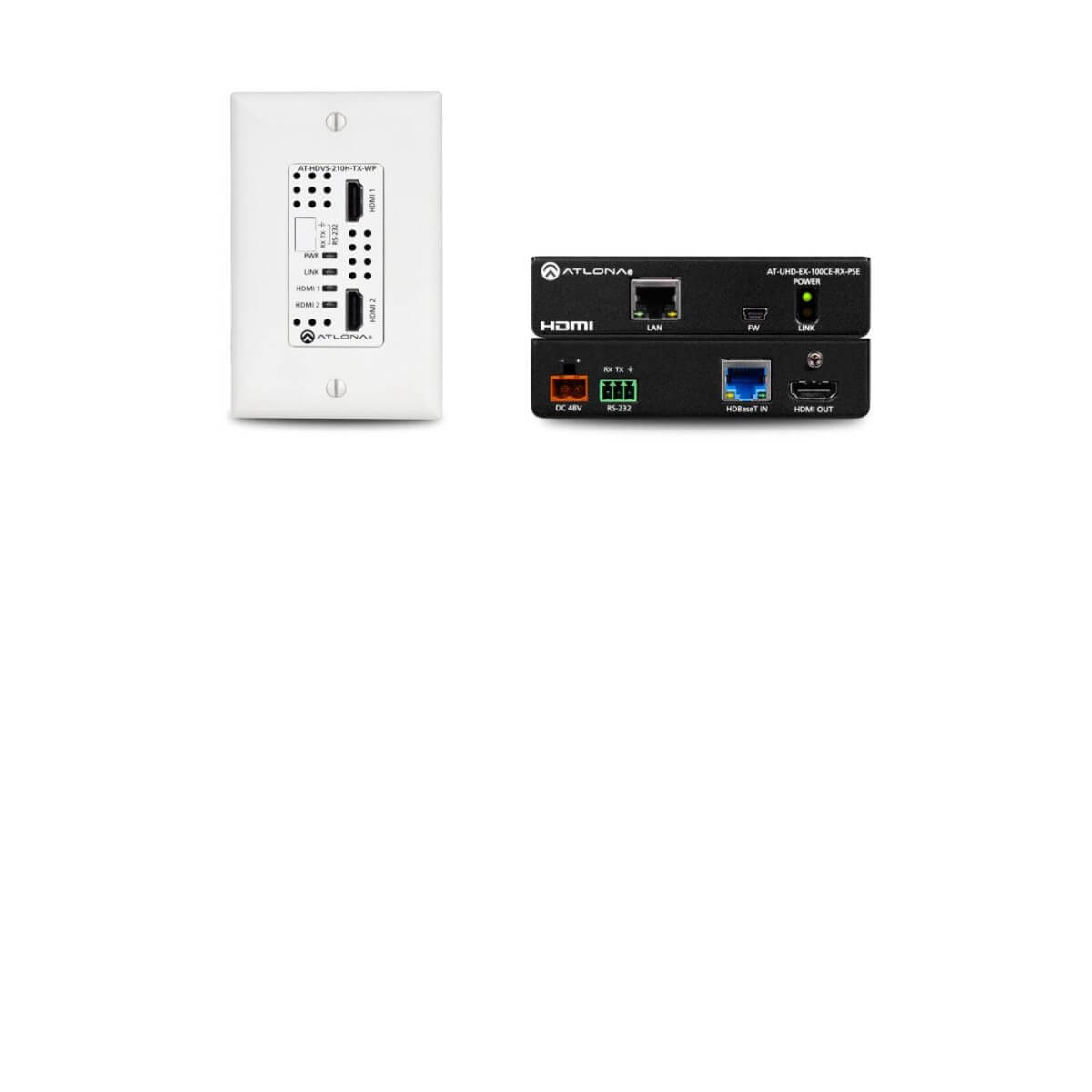

The Atlona AT-HDVS-210H-TX-WP-KIT is an HDBaseT transmitter and receiver combination that delivers a complete integration solution with 4K video extension, automatic switching for the two HDMI inputs, and automatic display control. It includes the AT-HDVS-210H-TX-WP two-input HDBaseT wallplate switcher and AT-OME-RX11 HDBaseT receiver. The HDVS-210H-TX-WP features a US one-gang, wallplate form factor, and includes interchangeable black and white wallplates and faceplates. The OME-RX11 features a compact, low-profile enclosure that can easily be concealed behind a wall-mounted display or above a projector. This HDBaseT extender solution extends AV and control up to 330 feet (100 meters) over category cable. Audio de–embedding is available at the receiver.
The transmitter is remotely powered by the receiver over HDBaseT. This makes the HDVS-210H-TX-WP-KIT ideal for applications in which the transmitter needs to be installed at a wall location or in a lectern where local AC power may not be available.
Specifications
- Transmitter powered by receiver via HDBaseT
- Automatic input selection and automatic display control
- Audio de-embedding at receiver
