Atlona AT-OME-EX-RX
Omega 4K HDMI Over HDBaseT Receiver with USB, Control. PoE
- HDBaseTTM receiver for HDMI, Ethernet, power, control, and USB
- USB 2.0 interfacing and extension up to 330 feet (100 meters)
- 4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling
- HDCP 2.2 compliant
Description

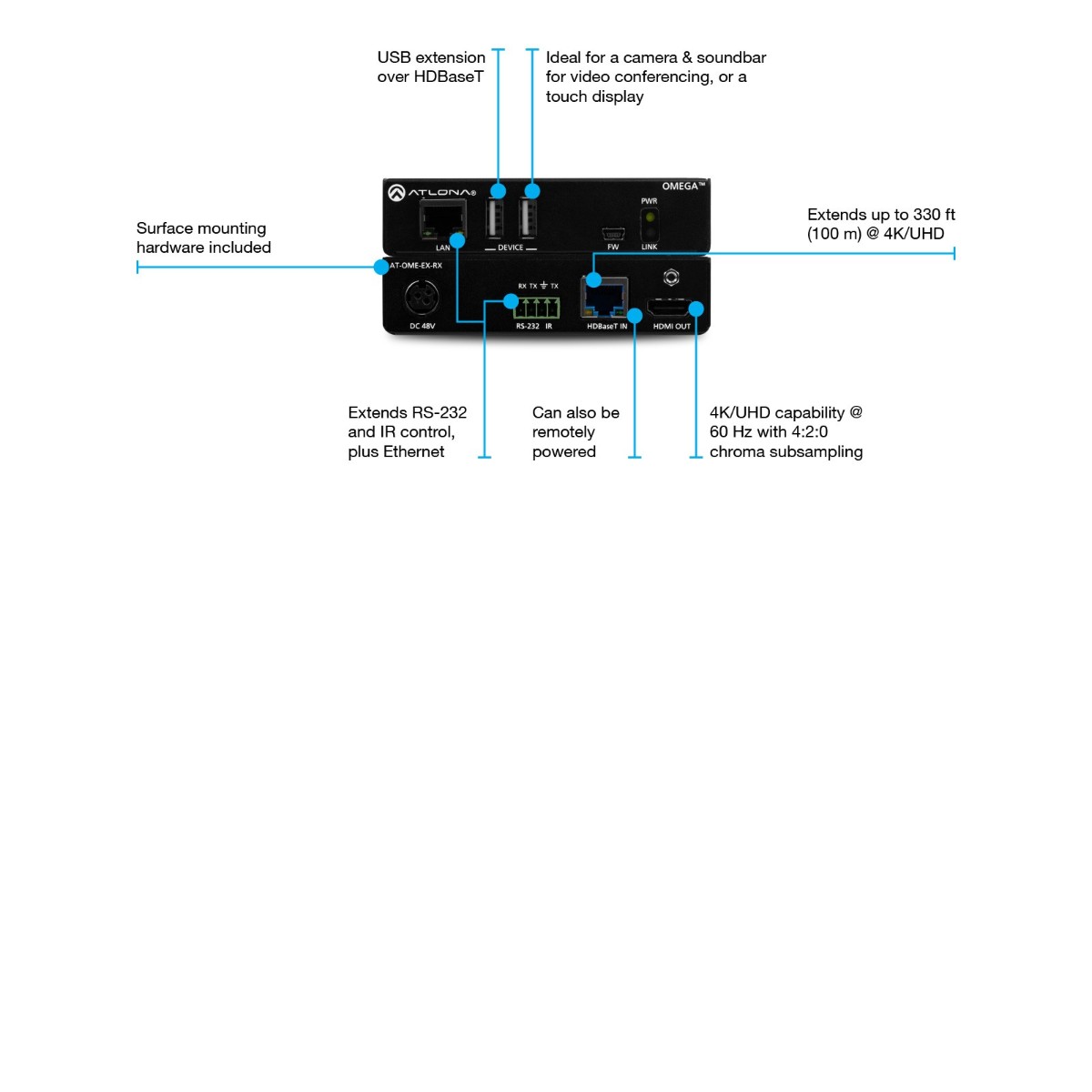

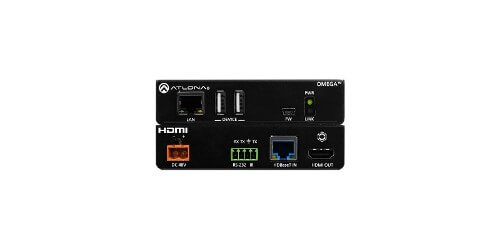

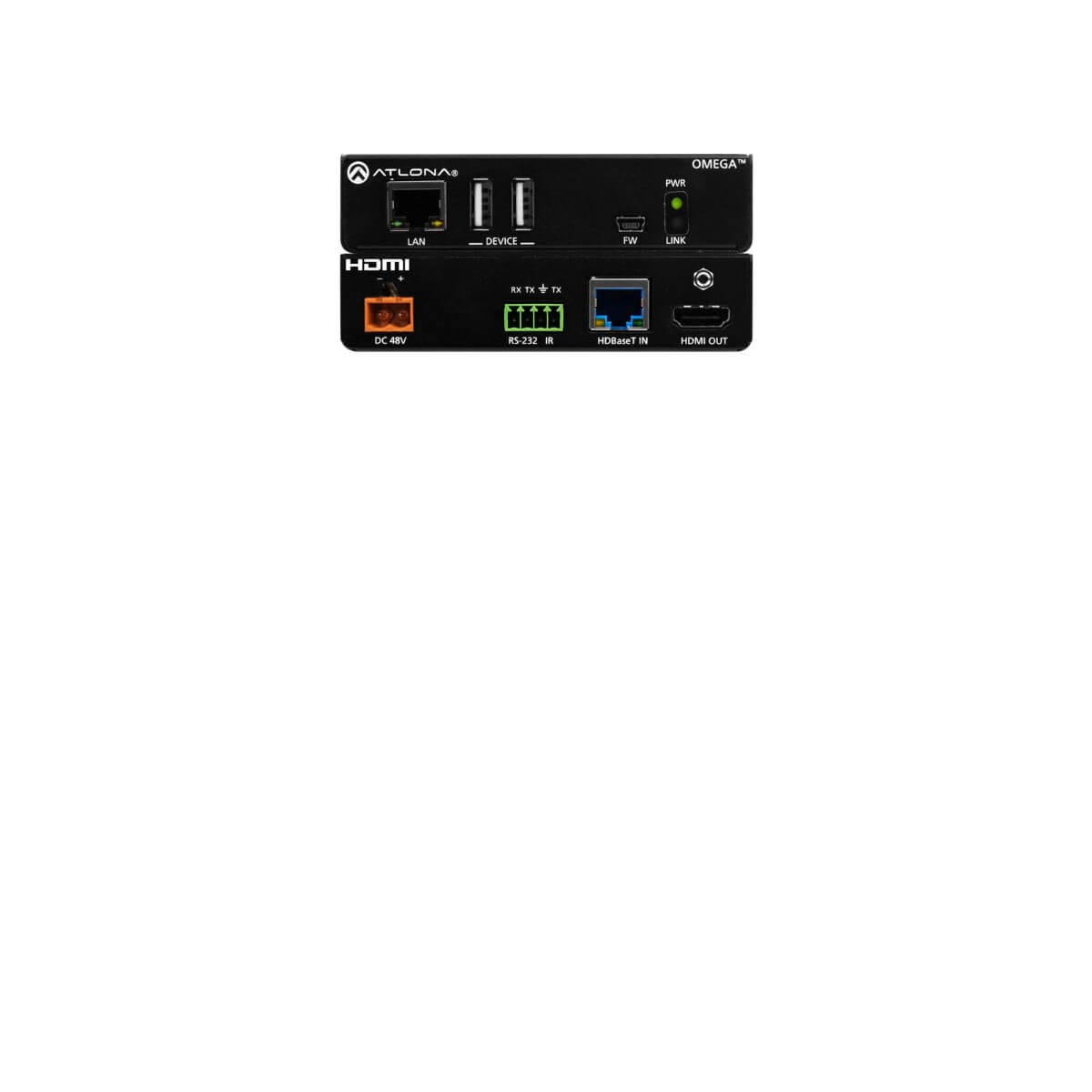

The Atlona AT-OME-EX-RX is an HDBaseT receiver for video up to 4K/60 4:2:0, plus embedded audio, control, Ethernet, and USB over distances up to 330 feet (100 meters). Part of the Omega™ Series of integration products for modern AV communications and collaboration, the OME-EX-RX is HDCP 2.2 compliant and receives IR, RS-232, and IP control signals.
With a matching HDBaseT transmitter, the integrated USB extension addresses the challenge of connecting between USB devices at remote locations, and is ideal for software video conferencing and touch or interactive displays. The OME-EX-RX includes two USB interfaces for devices such as a camera, soundbar, or display. This receiver is ideal for use with Omega Series transmitters as well as switchers with HDBaseT outputs. Also available is the OME-EX-KIT which includes the OME-EX-TX and OME-EX-RX.
The OME-EX-RX incorporates many popular integration convenience features, while delivering excellent performance and value for 4K presentation and video conferencing applications. The OME-EX-RX can remotely power the OME-EX-TX or other Omega Series transmitter through Power over Ethernet (PoE). It can also be remotely powered by an Omega Series switcher. The Ethernet port on the OME-EX-RX is for IP pass-through with the transmitter.
Applications:
Complete system integration – The OME-EX-RX and an Omega Series switcher together provide a comprehensive and cost-effective integration solution for meeting rooms and other AV presentation spaces.
Video conferencing and interactive displays – The OME-EX-RX and a compatible Omega Series transmitter or switcher are ideal for soft codec and web-based conferencing applications, with the ability to integrate with PCs, cameras, speakerphones, and microphones. They can also provide AV and USB extension for a touch-enabled display, allowing remote PC control at a meeting table or other location.
Specifications
- HDMI Specification: HDMI 2.0, HDCP 2.2
- TMDS Clock: 300 MHz
- UHD/HD 4096 2160(DCI)@60*/30/24 Hz
- Color Space: YUV, RGB
- Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
- Color Depth: 8-bit, 10-bit, 12-bit
- HDMI OUT: 1 Type A, 19-pin female
- FW: 1 mini-USB
- HDBaseT OUT: 1 RJ45
- DEVICE: 2 USB Type-A
- LAN: 1 RJ45, 10/100 Mbps
- RS-232 / IR: 1 captive screw, 4-pin
- DC 48V: 1 3-pin DIN
