Atlona AT-OME-EX-TX-WP
Wallplate Transmitter for HDMI with USB

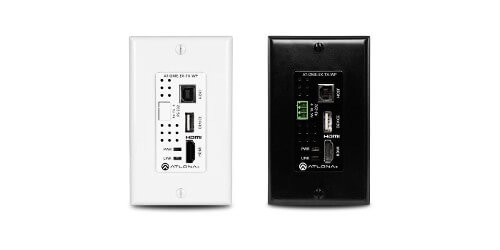

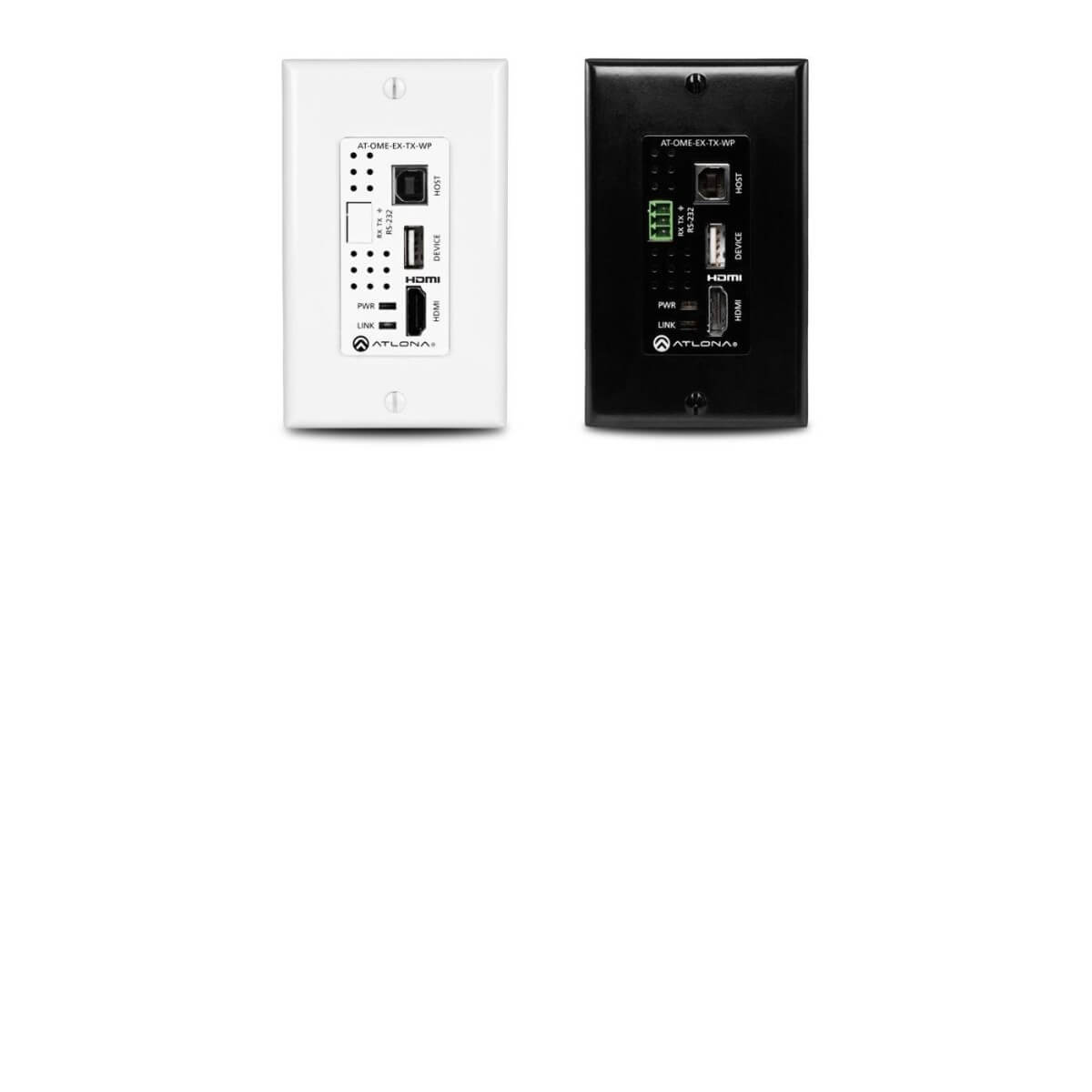

- US one-gang enclosure for wallplate openings - interchangeable black or white trim kits
- HDBaseTTM transmitter for HDMI, power, control, and USB
- USB 2.0 interfacing and extension up to 330 feet (100 meters)
- 4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling
Description
The Atlona AT-OME-EX-TX-WP is an HDBaseT transmitter for video up to 4K/60 4:2:0, plus embedded audio, control, and USB over distances up to 330 feet (100 meters). It features a US one-gang, wallplate form factor, and includes interchangeable black and white wallplates and faceplates. Part of the Omega Series of integration products for modern AV communications and collaboration, the OME-EX-TX-WP is HDCP 2.2 compliant and transmits RS-232 control signals. With a matching HDBaseT receiver, the integrated USB extension addresses the challenge of connecting between USB devices at remote locations, and is ideal for software video conferencing and touch or interactive displays. The OME-EX-TX-WP includes a USB 2.0 host interface for a PC, plus a peripheral device such as a speakerphone, microphone, or keyboard and mouse. This transmitter is ideal for use with Omega Series receivers as well as switchers with HDBaseT inputs. It is available with the OME-EX-RX receiver as the OME-EX-WP-KIT.
Specifications
- HDCP 2.2 compliant
- Remote powering over HDBaseT
- Also available: OME-EX-WP-KIT with OME-EX-RX receiver
